Checking test point one—overall system flow – Dynojet Flow Meter User Manual
Page 11
U S E R G U I D E
Flow Meter Testing
Version 1
Flow Meter User Guide
7
C
HECKING
T
EST
P
OINT
O
NE
—O
VERALL
S
YSTEM
F
LOW
The first test point checks the flow into the entire system.
Note: Always keep the flow meter upright when testing.
1
Attach the exhaust inlet hose to the top port of the flow meter.
2
Turn the air pump on.
3
Record the flow meter reading in a data table on page 16.
4
Turn the air pump off.

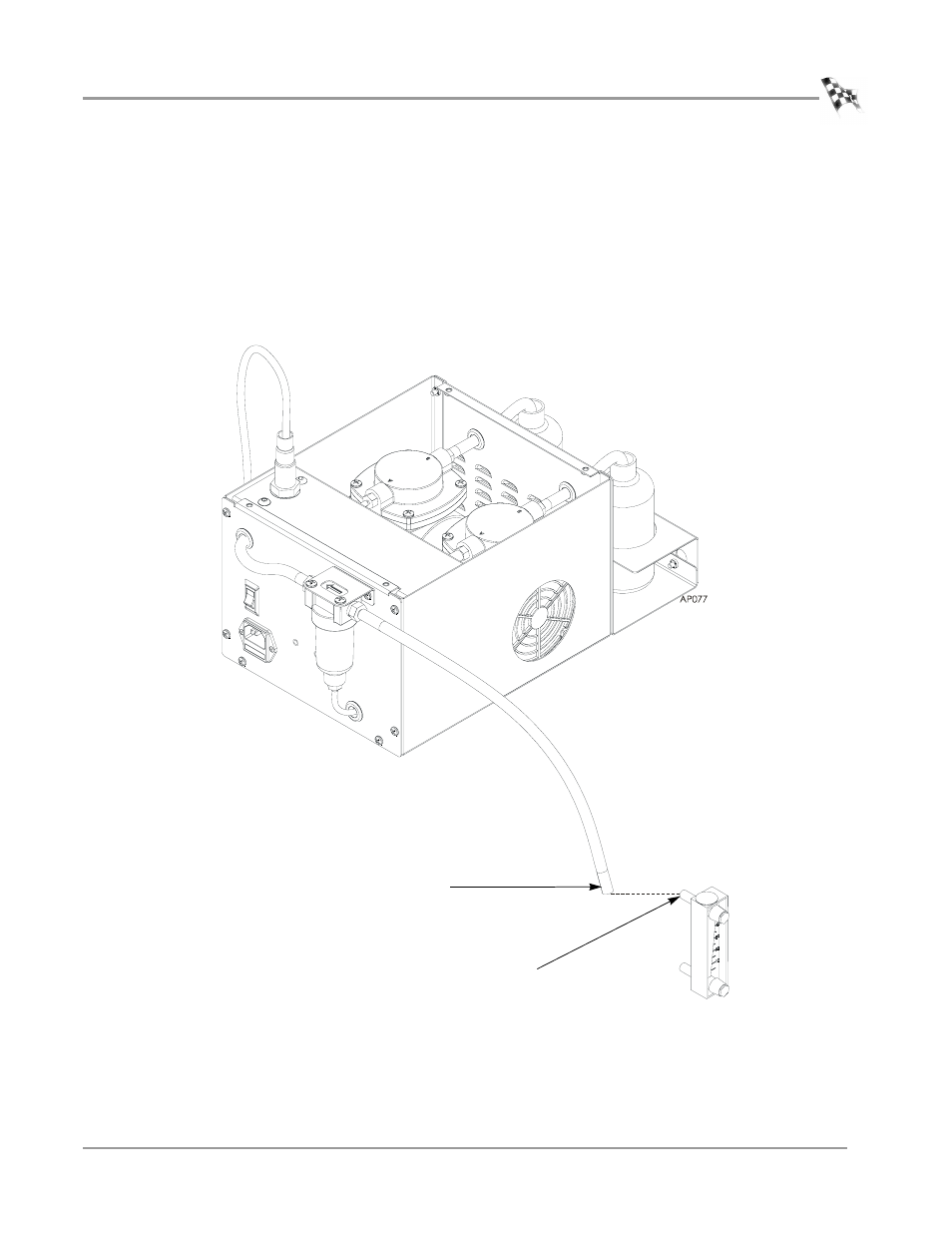

Figure 4: Test Point One—Overall System Flow
top port
exhaust inlet hose
