Flow Meter Testing
Version 1
Flow Meter User Guide
9
F
ILTER
A
SSEMBLY
1
Remove the filter bowl hose from the filter bowl.
2
Plug the filter bowl fitting with your finger.
3
Plug the exhaust inlet hose with your finger.
4
Turn the air pump on.
5
Record the flow meter reading in a data table on page 16.
Note: The flow meter reading should be zero. If the flow is more than
two liters/minute the filter bowl has a significant leak.
6
Turn the air pump off.
7
If the filter has a leak, clean and tighten all fittings and test again.
8
Remove the short hose from the filter fitting and the flow meter.
9
Attach the sensor hose to the filter.
10 Attach the filter bowl hose to the filter bowl.

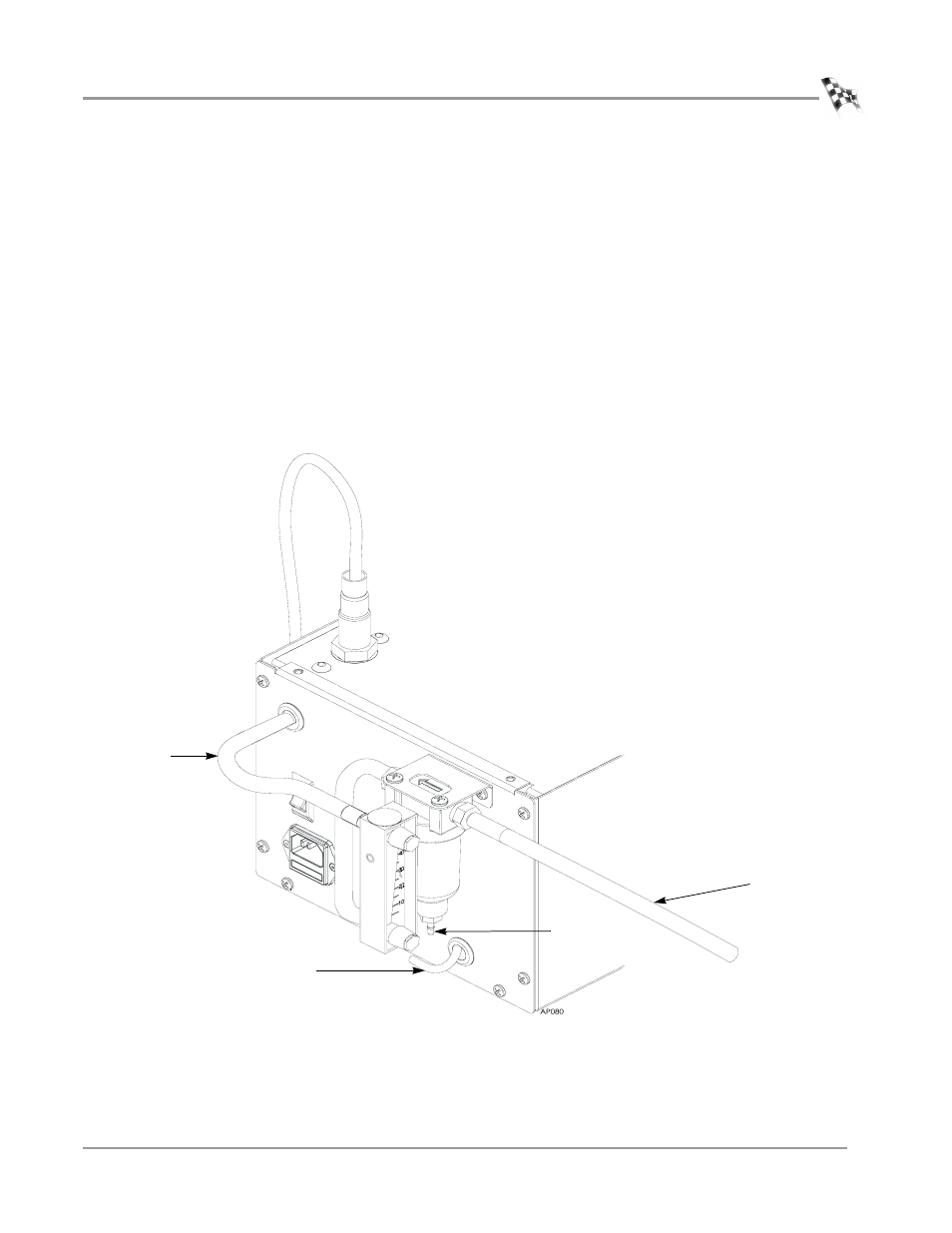

Figure 6: Test Point Two—Filter Assembly
filter bowl hose
filter bowl fitting
plug with finger
exhaust inlet hose
plug with finger
sensor hose
