U S E R G U I D E
Flow Meter Testing
Version 1 Flow Meter User Guide
13
C HECKING T EST P OINT F IVE —R IGHT O UTFLOW
Testing the outflow allows you to determine the efficiency of the right pump head.
1
Remove the right outflow hose from the right outflow catch bottle.
2 Attach the right outflow hose to the bottom port of the flow meter.
3 Turn the air pump on.
4 Record the flow meter reading in a data table on page 16.
If the flow meter reading is below the testing range, rebuild the pump head.
Pump head rebuild kits (P/N 79190003) are available from Dynojet.
Note: Dynojet recommends rebuilding both pump heads at the same time.
5 Turn the air pump off.
6 Replace the right outflow hose into the right outflow catch bottle.

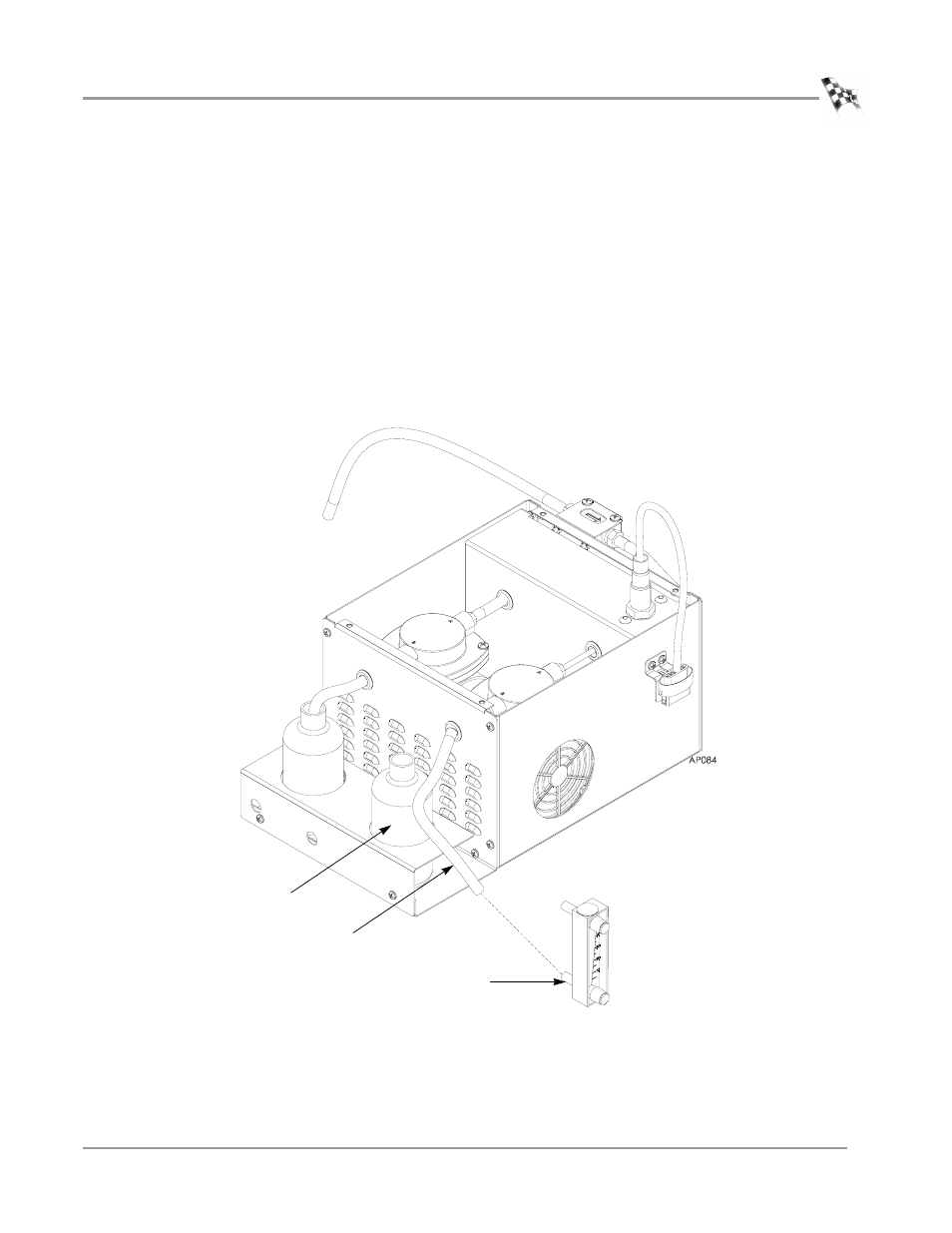

Figure 10: Test Point Five—Right Outflow
bottom port
outflow hose
left side of air pump
looking from the
bottle side
right side of air pump
looking from the
bottle side
catch bottle
