6
Special Instructions - Lightbar Internal Wiring
LIT3 mounting kit lightheads may be wired to operate in conjunction with lightheads mounted in the lightbar. Wire jumper T09831 is
provided for a convenient "Y" connection between these lightheads in most Code3 lightbars. (See the example shown below)

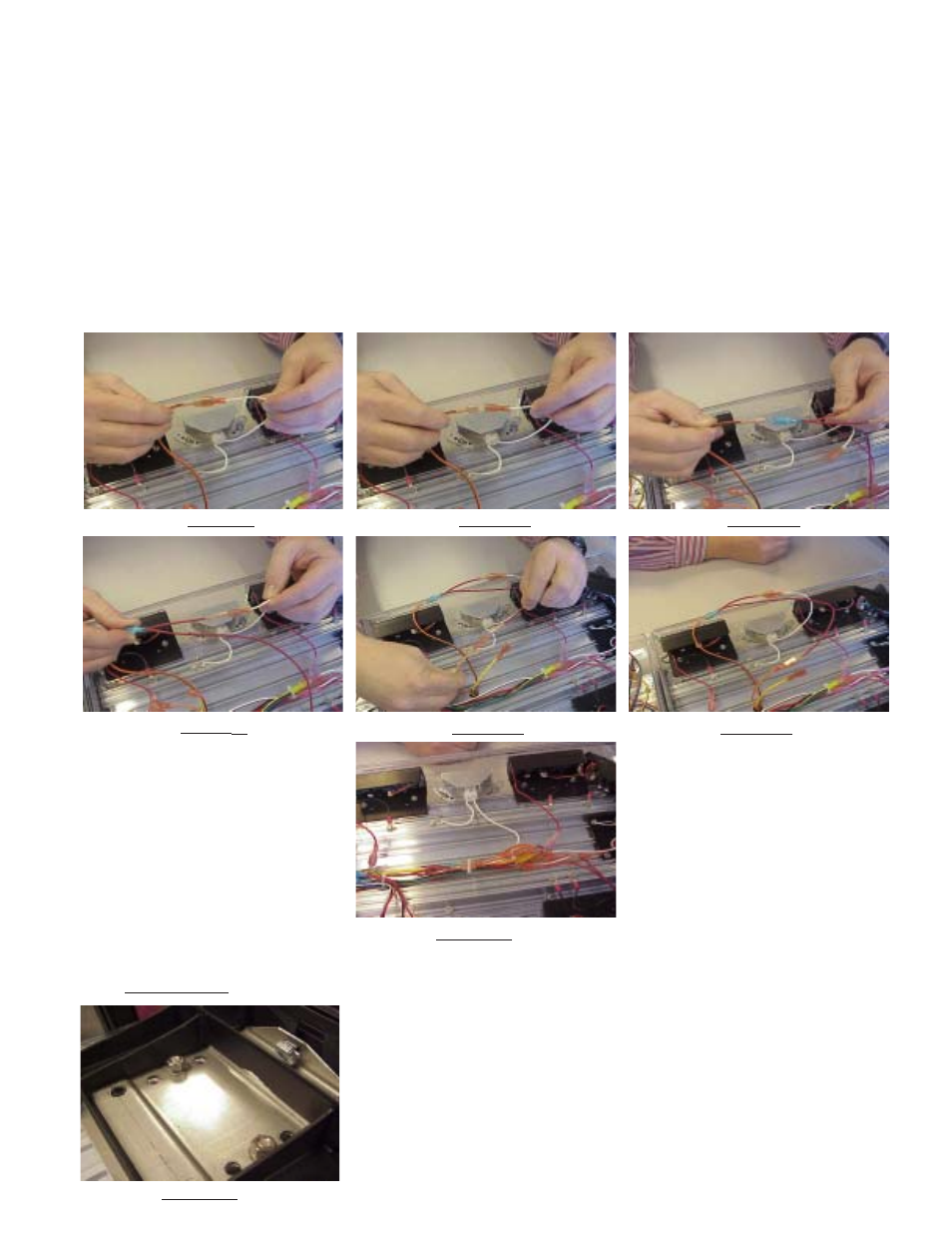

Step A To connect the takedown lightheads in the Mounting Kit with those in the Lightbar, locate and unplug the quick slide connector to the
existing takedown lighthead inside the lightbar as shown in Figures 25 and 26 below.
Step B Connect the male quick slide terminal of the T09831 wire jumper supplied in the parts bag to the female quick slide terminal of the lightbar's
takedown power wire disconnected in step A as shown in Figure 27 below.
Step C Connect the female quick slide terminal of the short leg of the T09831 wire jumper to the male quick slide terminal of the lightbar's takedown
lighthead disconnected in step A as shown in Figure 28 below.
Step D Connect the female quick slide terminal of the long leg of the T09831 wire jumper to the male quick slide terminal of the wire passing through
the lightbar frame and connected to the takedown light in the LIT3 Mounting Kit as shown in Figure 29. When the wires are connected correctly they
will look as shown in Figure 30.
Step E Repeat these steps for all (4) Lightheads of the Mounting Kit, then bundle the wires and wire tie them to the other wires inside
the lightbar as shown in Figure 31.
FIGURE 25 FIGURE 26 FIGURE 27
FIGURE 28 FIGURE 29 FIGURE 30
FIGURE 31
Installation Instructions-Cont.
Step 17 Standard Version Position a 5/16" split washer and thread the 5/16"-18 Hex Nut onto the Carriage Bolts (see Figure 32)
FIGURE 32
