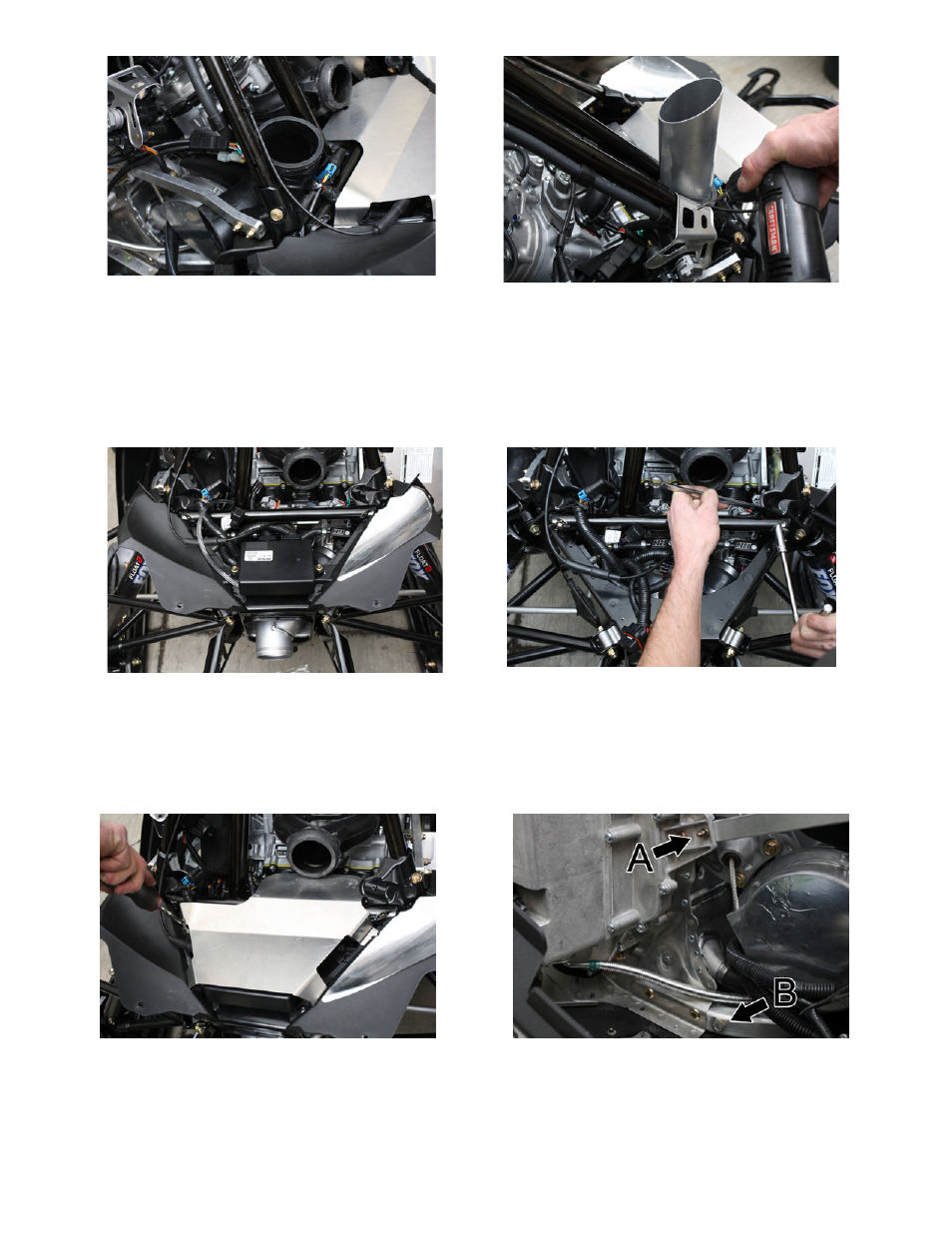

43. To check fitment before relocating the bracket install
the 90° rubber elbow.
45. Replace the ECU cowl assembly and connect the two
harnesses to the ECU.
44. With 90° rubber elbow and intake pipe relocate the
bracket. Drill three 3/16” holes in the chassis diagonal
and secure using the supplied rivets.
46. Replace the front chassis crossbar and secure using
the stock nuts and bolts.
47. Replace the ECU heatshield and securing using the
stock fasteners
48. Unbolt the spring tab from location A. Drill a 3/16” hole
in that chassis at location B. Use a washer on the rivet
and rivet in place.
