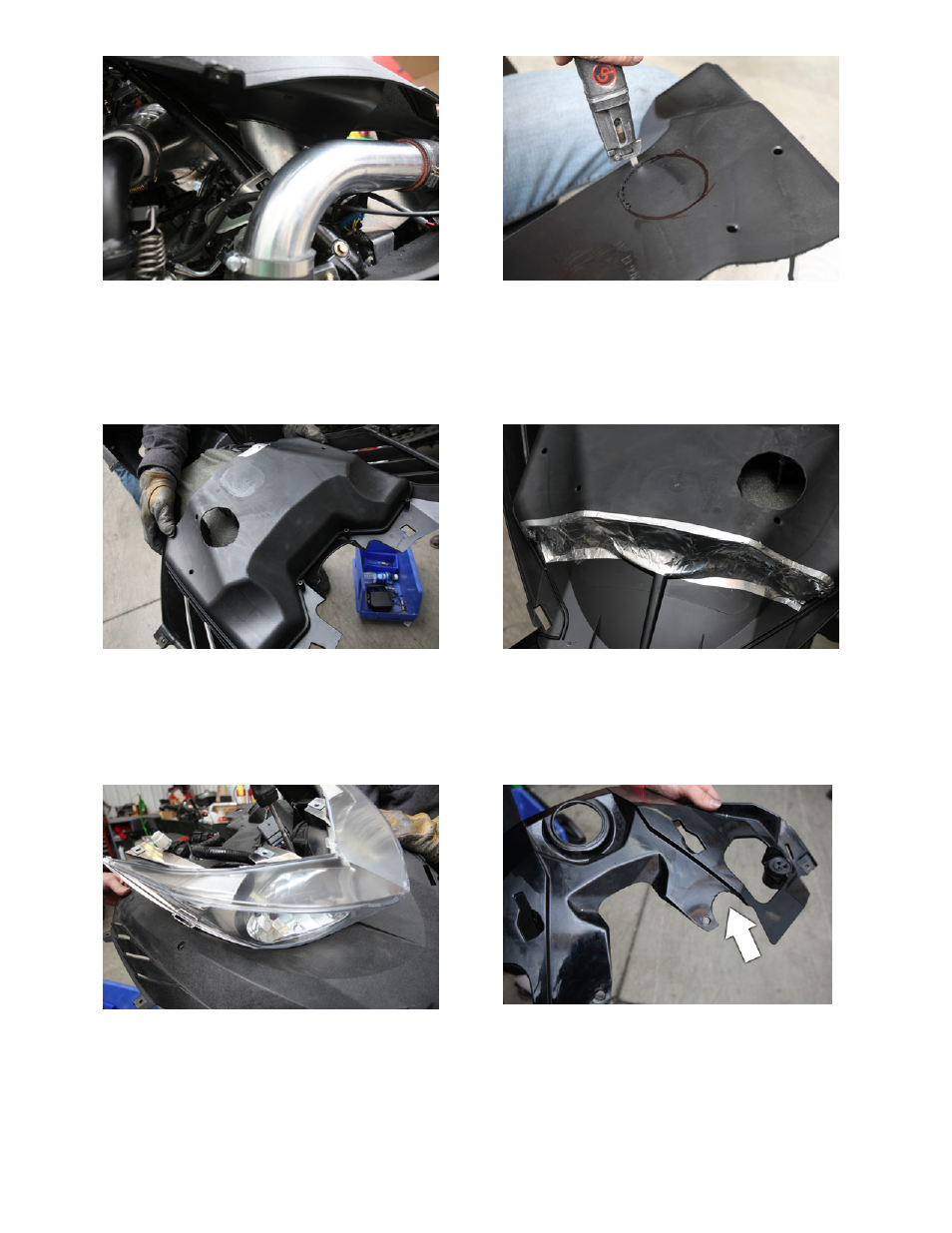

74. Install the turbo air-intake inlet onto the rubber boot.
Attach the airbox to the hood and place the hood on
the machine and mark where the inner airbox contacts
the air inlet.
75. Remove the airbox from the hood and cut a hole in
the inner airbox for the turbo air inlet.
76. Attach the airbox to the hood. Check the height of
the aluminium air intake tube by looking down the
air intake. The turbo intake tube should sit about 1/4”
inside the airbox it is important that the tube doesnt
touch the hood or intake air will be restricted.
77. Use the supplied heat tape seal the opening on the
front side of the airbox.
BoonDocker tollfree: 877-522-7805 local: 208-542-4411 fax: 208-524-7381 www.boondockers.com 14
78. Attach the headlight to the hood using the stock
screws.
79. Cut the stock upper tank cowl so that the Boon-
docker harnesses can clear. Replace this cowl on the
machine.
80. Finish assembling the hood in the reverse order of
how it was disassembled.
