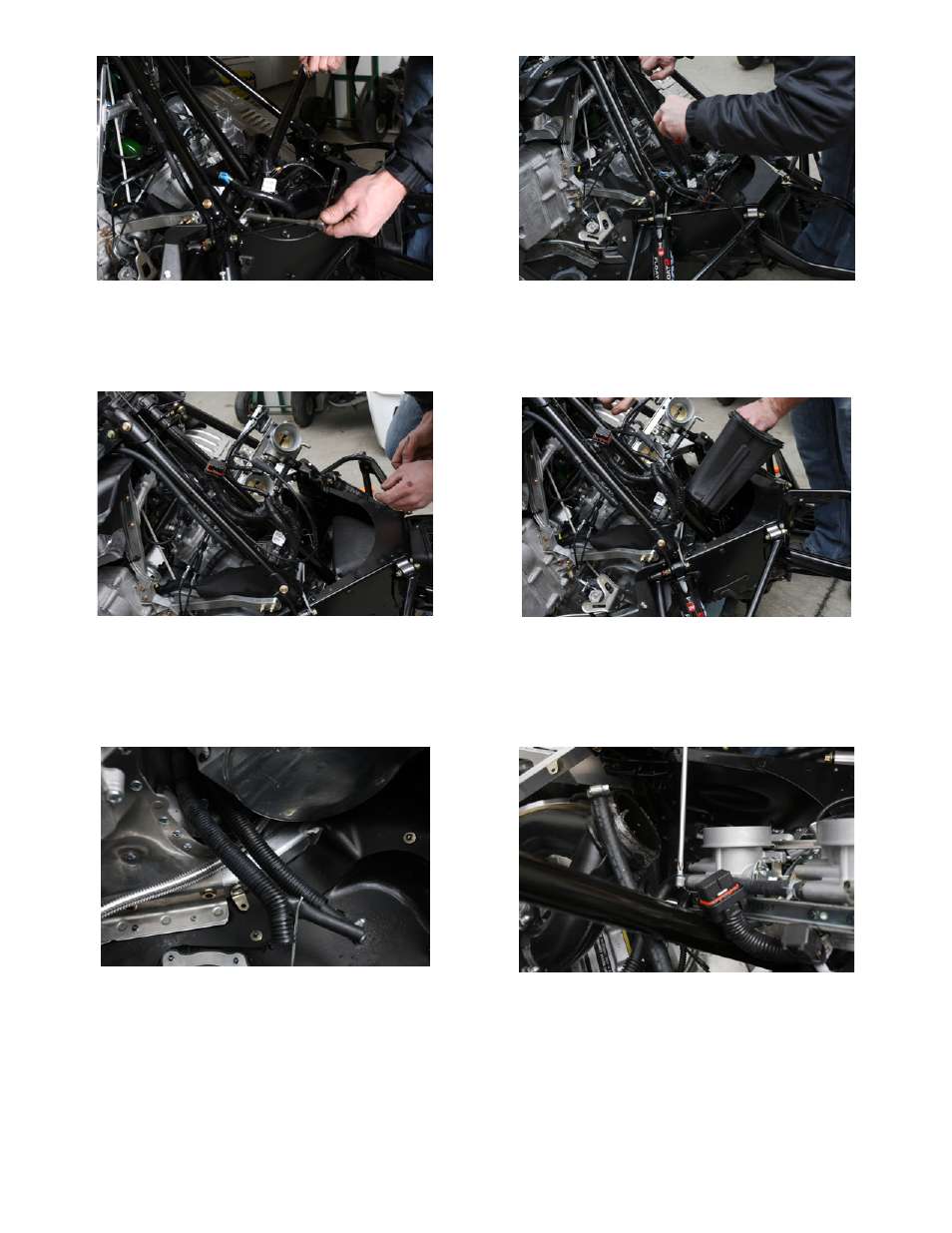

7. Remove the front chassis crossbar by removing the
nut and bolt on each end of the crossbar.
8. Loosen the hose clamps on the intake and engine side
of the throttle bodies.
9. Remove the throttle bodies from the boots. Remove
the coolant line from the PTO side of the throttle bod-
ies. Detach oil linkage ball fitting and lift the throttle
bodies out of place.
10. Remove the intake from the machine by pulling it
through the engine side of the chassis.
11. Re-route the PTO side throttle body coolant line un-
der the engine on the MAG side of the chassis.
12. Remove the coolant line from the MAG side of the
throttle bodies and re-route it under the engine so
that it exits in a similar location to the other coolant
line. These coolant lines will be re-used to cool the
turbocharger later in the installation. No coolant will
be ran through the throttle bodies using the turbo kit.
The charged air will heat the throttle bodies.
