Page 4

Install the lower valve body gasket (identified by the Z-
shaped slot) in position on the valve body side of the
separator. Use a small amount of grease to hold it in
place. Install the upper valve body gasket in position on
the transmission case side of the separator plate. Use
a small amount of grease to hold it in place.
Check ball positioning:
Heavy Duty: Two 1/4" check balls, one each in
locations one and two. (See Fig.8)
Street: One 1/4" check ball in location one.
Install each checkball in place using grease to hold it
in position. Do not install remaining checkballs.
Install gasket/separator plate assembly in position
and use a pan bolt finger tight in the middle to hold the
assembly in place. (see Fig. 9)
STEP 14. Install B&M middle support plate (silver color)
in position against separator plate gasket at front of
transmission. (See Fig. 9). On top of middle support
plate (gold color). Note that the two (2) holes in the
middle support plate and slot in the oil transfer plate line
up with the two holes in the separator plate and plate
gasket. On top of oil transfer plate install your stock
spacer support plate. (The order of the plates must be
correct!). Install the support plate bolts finger tight. Align
separator plate bolts with transmission case bolt holes.
Holding separator plate in position, tighten the seven (7)
support plate bolts to 100 in. lbs.

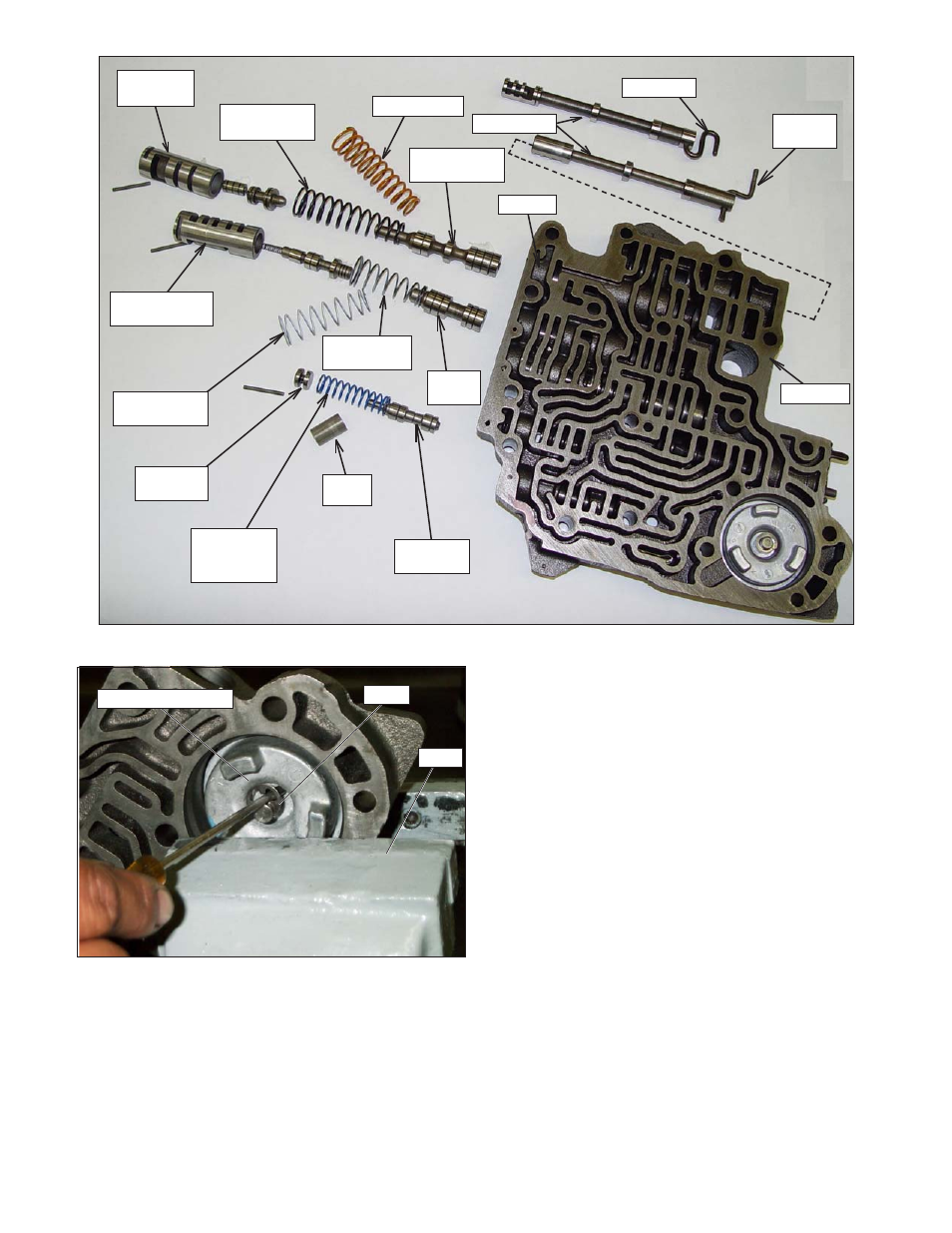

Vise
E-clip
2-3 accumulator piston
Figure 5
Figure 4
Boost valve
sleeve
Stock pressure
regulator spring
Orange spring
Pressure
regulator valve
Roll pin
Manual valve
S-link model
Offset link
model
Valve body
2-3 shift control
valve and sleeve
White 2-3 shift
valve spring
Stock 2-3 shift
valve spring
2-3 shift
valve
Manual low
control plug
Manual low
control spring
(discard)
Special
sleeve
Manual low
contol valve
