A A V V e e r r V V i i s s i i o o n n S S P P B B 3 3 5 5 0 0 + + P P a a r r t t s s

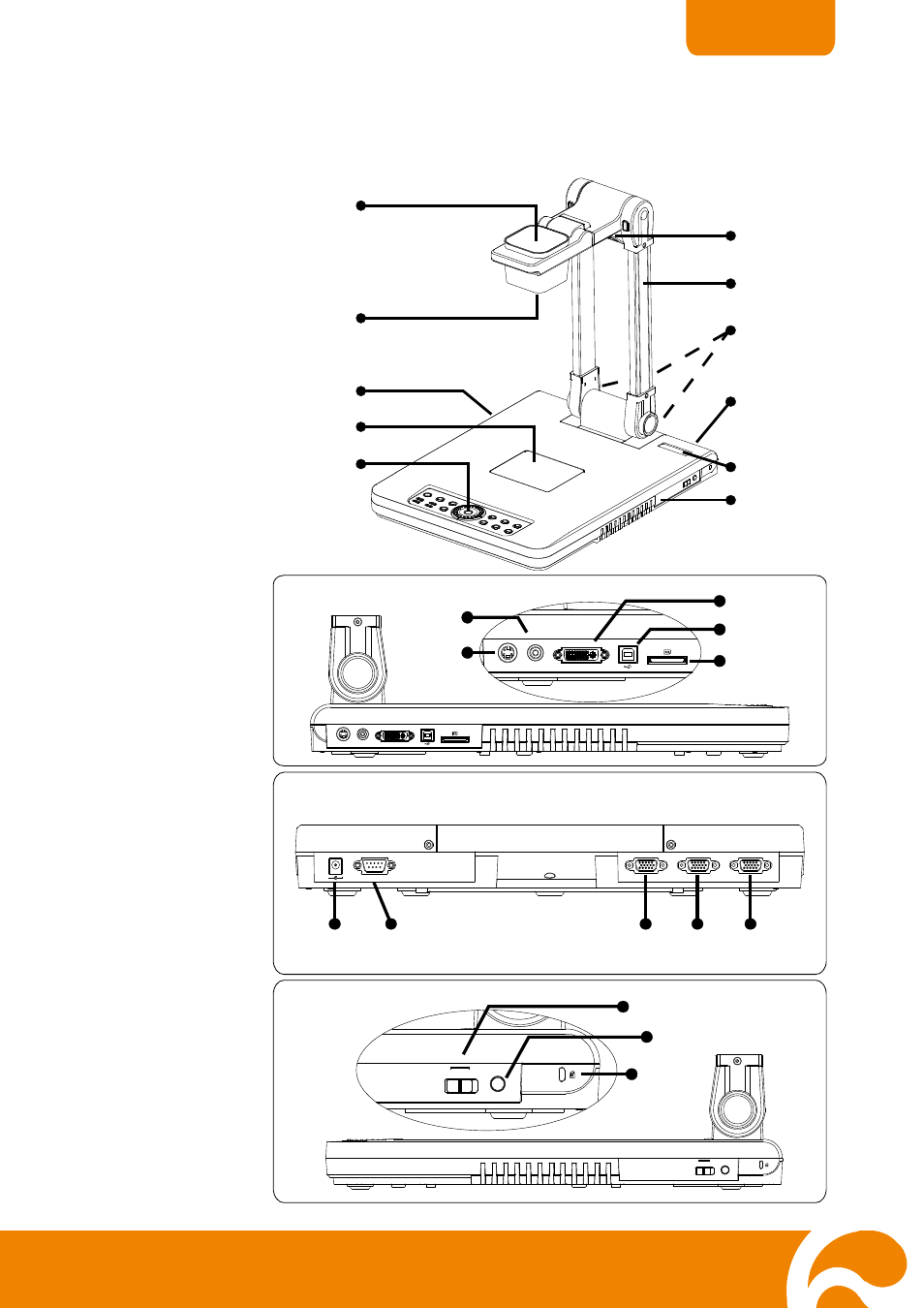

The illustrations below identify the parts of SPB350+.
1. Camera head
2. Camera lens
3. Left panel
4. Light box
5. Control panel
6. Overhead light
7. Arm
8. IR
sensors
9. Rear panel
10. Label slot
11. Right panel
12. CVBS OUT
(RCA/Composite)
13. S-Video output port
14. DVI-I output port
15. USB port
16. SD card slot
17. DC 12V port
18. RS-232 port
19. RGB IN 2 port
20. RGB IN 1 port
21. RGB output port
22. Video output switch
23. Light box power
button
24. Antitheft slot
(1)
(4)
(5)
(3)
(2)
(11)
(6)
(8)
(9)
(7)
(10)
Left Pane l
(15)
(12)
(14)
(16)
(13)
SD CARD USB DVI-I OUT CVBS OUT S-VIDEO OUT
SD CARD USB DVI-I OUT CVBS OUT S-VIDEO OUT
Rea r Pane l
(17) (18) (20) (21) (19)
RS-232 DC 12V RGB IN 2 RGB IN 1 RGB OUT
IOIOI
LIGHT BOX VIDEO OUTPUT
TV RGB
LIGHT BOX VIDEO OUTPUT
TV RGB
(22)
(24)
(23)
Righ t Pane l
