Page 14
12
ENGLISH
T
T
o
o
u
u
c
c
h
h
B
B
u
u
t
t
t
t
o
o
n
n
C
C
o
o
n
n
t
t
r
r
o
o
l
l
P
P
a
a
n
n
e
e
l
l

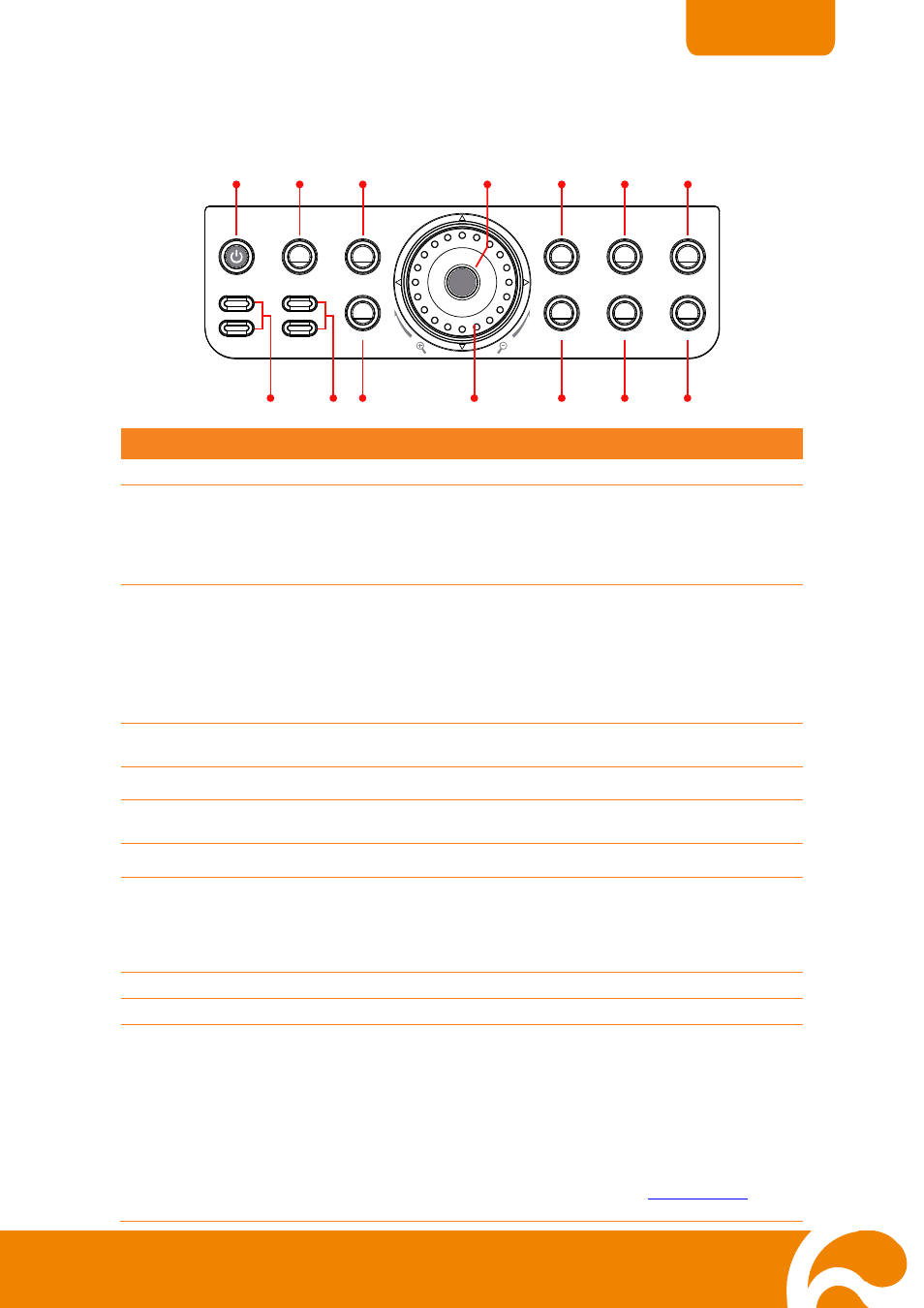

The touch button control panel located on the top side of AVerVision SPB350+ provides quick access to commonly
used functions.
AUTO IMAGE
PLAYBACK
CAMERA/PC
POWER
ROTATE
LAMP
PC1
RGB
PC2
TV
FREEZE
AUTO FOCUS
MENU
CAP/DEL
ENTER
(5)
(6)
(7)
(11)
(9)
(2)
(4)
(3)
(1)
(8)
(12)
(14)
(10)
(13)
Name
Function
(1) POWER
Turn the unit on/off.
(2) Camera/PC
Switch between Camera and PC mode.
- Camera mode displays the video signal from the built-in camera.
- PC mode displays the video signal from the RGB IN 1 and RGB IN 2 port of
SPB350+. The PC1 and PC2 will display the video signal from RGB IN 1 and
RGB IN 2 respectively.
(3) PLAYBACK
Playback mode displays the captured image from the memory source in 16-
thumbnail images. Use ▲,▼,◄, & ► buttons or rotate the shuttle wheel to make
a selection and ENTER to display the selected image in full screen.
Press MENU to display the Playback menu. Select SLIDE SHOW to start or set
the time interval between frames in second, MEMORY SOURCE to select the
image location between the built-in memory or SD card, and DELETE to
permanently remove the selected image from the selected memory source.
(4) ENTER
Make a selection in Playback mode and OSD menu. Use this to quick zoom to
200% or back to 100% in Camera mode only.
(5) AUTO IMAGE
Automatically adjust and set the white balance and exposure setting.
(6) ROTATE
Turn the image by 90°in Camera mode and 180 in full screen Playback mode.
(7) LAMP
Turn the overhead light on/off.
(8) CAP/DEL
- Capture a still image in Camera mode. The captured image is saved in the
selected memory source at 1600 x 1200 resolution and the built-in memory can
store up to 240 images.
- Remove the selected picture from the selected memory source permanently in
Playback mode.
(9) FREEZE
Toggle to pause or resume the camera.
(10) AUTO FOCUS
Adjust the focus automatically.
(11) SHUTTLE
WHEEL
- Turn the shuttle wheel clockwise to zoom in and counter-clockwise to zoom out
the image optically and digitally in Camera and Playback mode only.
When it exceeds the maximum optical zoom level of about 12X, you may still
continue to AVer Optical zoom up to 1.66X AVerZoom and 8X digitally zoom.
Press ENTER to return to normal view (100%). The zoom bar indicator will turn
from blue to aqua to indicate that you can pan around the image.
- Press the shuttle wheel ▲,▼,◄, & ► to pan the image while in digital zoom
mode, to make a selection on 16-thumbnail images or move to the next or
previous single full screen preview in Playback mode, or to make a selection or
adjustment on the OSD main-menu and sub-menu (See
more details).
