6. CAUTIONS ON WIRING
1. Be sure to turn the power off before wiring.
2. Be particularly careful where you route the
wires.
Keep them well away from the engine, and
exhaust pipe, etc. Heat may damage the
wires.
3. If the fuse should blow, check to see if the
wiring is correct.
If a fuse is blown, replace it with a new one of
the same amperage rating as the original
(15A FUSE).

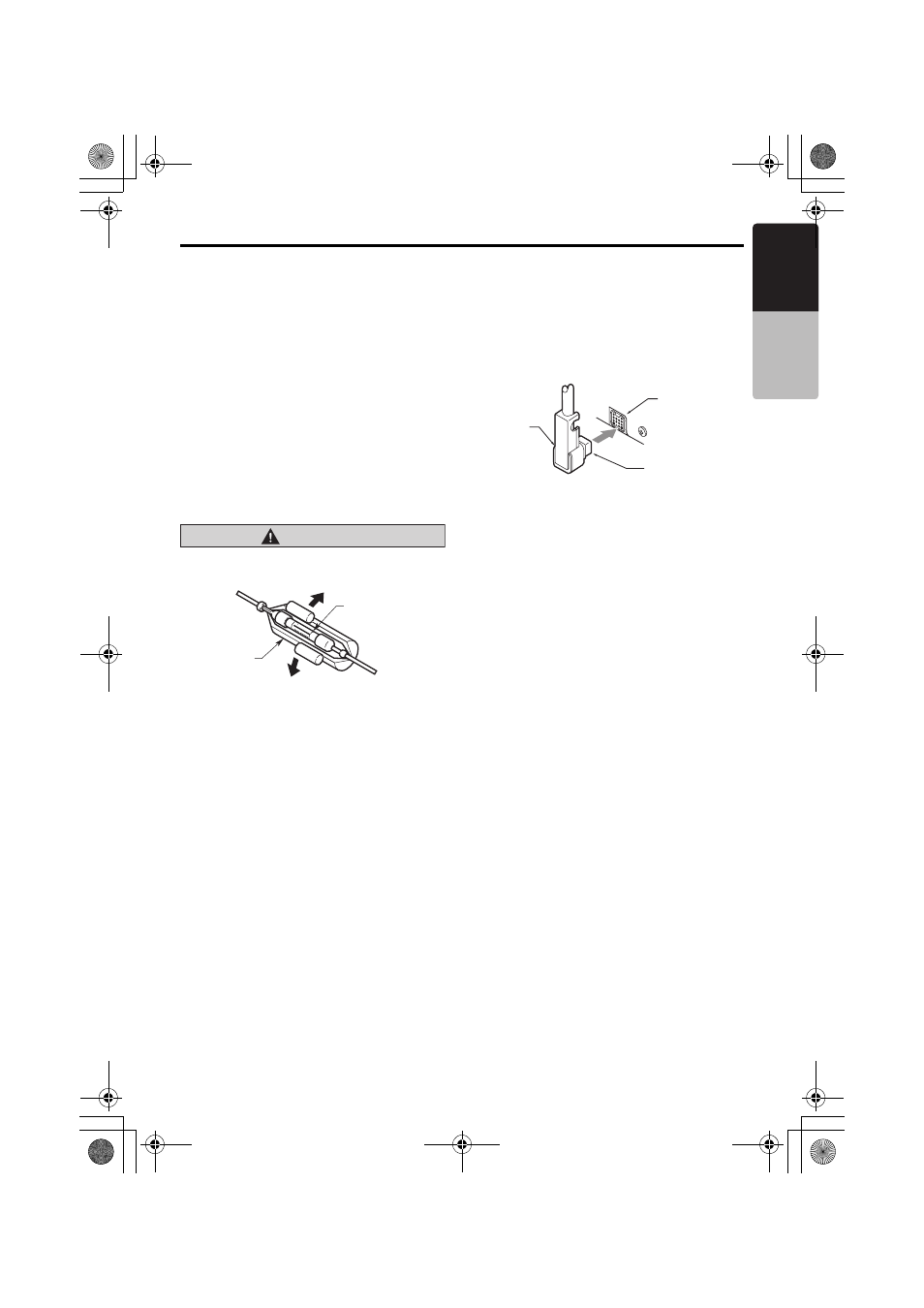

4. To replace the fuse, remove the old fuse of
the power supply lead and insert the new one.
(Figure 8)
Note:
• There are various types of fuse holder. Do not let
the battery side touch other metal parts.
CAUTION
caution
After the connection, fix the lead by a clamp
or insulation tape for protection.
5. Connect the CeNET extension cable fully and
securely until it locks. When the CeNET
extension cable is pulled, hold the slide cap
part and pull it towards you. (Figure 9)
* When the CeNET extension cable is extended
or branches, use extension cable CCA-520
(2.5 m) or CCA-521 (0.6 m), or Y-adapter
CCA-519 (each of them is sold separately).
Fuse (15A FUSE)
Fuse holder
Figure 8
CeNET terminal
CeNET cable
(provided with the
CD changer or
DVD changer)
Slide cap
Figure 9
