68
MAX667VD
English
IN
ST
AL
LA
TION
AND
WIR
E
CONNE
CT
ION MA
NUAL

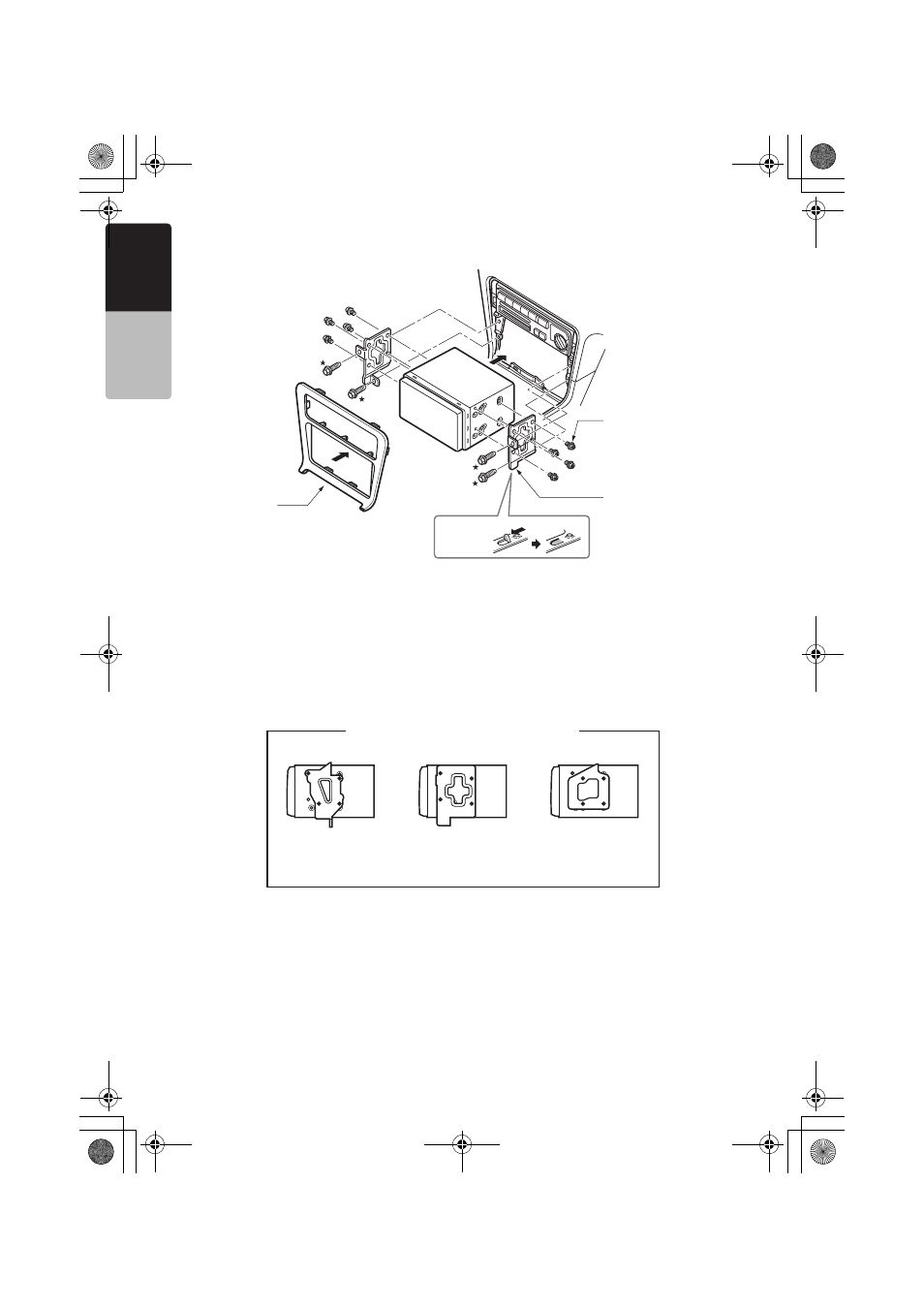

Installing the Main Unit in a TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked ★ are attached to the vehicle.)
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
●Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLING THE
MAIN UNIT”.
Note:
* 2 Some panel openings are too small for the unit
depending on the vehicle type and model. In
such a case, trim the upper and lower sides of the
panel frame by about 0.5 to 1.5 mm so the unit
can be inserted smoothly.
*3 If a hook on the installation bracket interferes
with the unit, bend and flatten it with a nipper or
similar tool.
* 3
Figure 7
Main Unit
8–Hexagonal screw
(M5
×
8)
Mounting bracket
(1 pair for the left
and right sides)
Center Panel
(* 2)
Example 1 Example 3 Example 2
Affix the screws to the
● marks.
Typical Mounting Brackets
