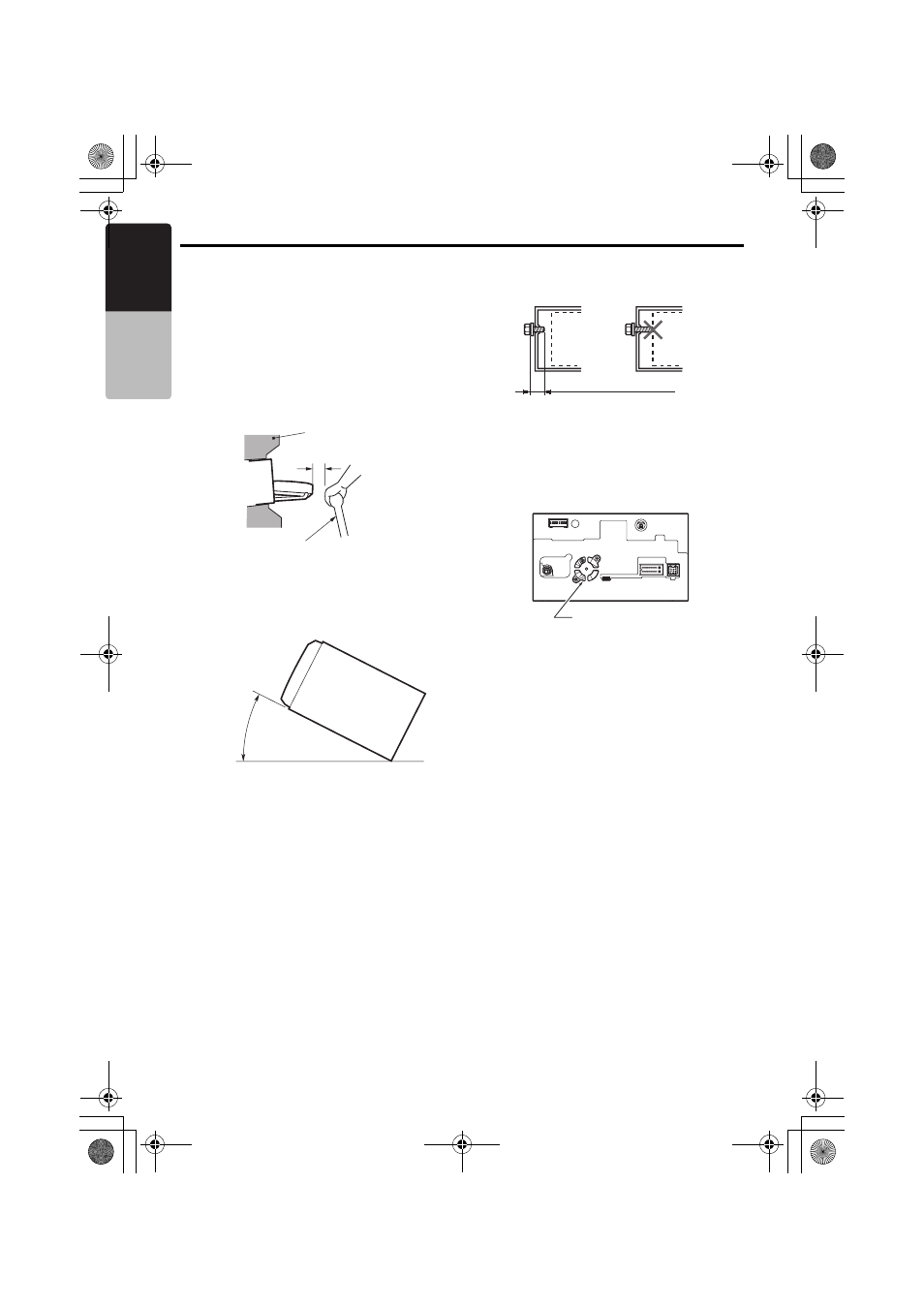

4. CAUTIONS ON INSTALLATION
1. Prepare all articles necessary for installing the
main unit before starting.
2. This model features an operation panel that
slides forward.
On some types of cars, the operation panel
may make contact with the dashboard or shift
lever, in which cause it cannot be installed.
Before installing, check that the unit will not
hamper operation of the shift lever or obstruct
your view before selecting the installation
location. (Figure 2)
3. Install the unit within 30° of the horizontal
plane. (Figure 3)
4. If you have to do any modification on the car
body, such as drilling holes, consult your car
dealer beforehand.
5. Use the included screws for installation. Using
other screws can cause damage. (Figure 4)
6. This unit has a fan motor in the back of the
main unit so as not to raise the temperature in
the main unit. When the fan motor vent is
covered with cords or mounting bracket, it
may cause a malfunction. Be sure not to cover
it when wiring cords. (Figure 5)
Dashboard
Shift lever
(check that it does not
touch the LCD.)
Figure 2
Figure 3
Max. 30˚
Chassis Chassis
Damage
Max. 8 mm (M5 screw)
Figure 4
Fan motor vent
Figure 5
