5. INSTALLING THE MAIN UNIT
This unit is designed for fixed installation in the
dashboard.
1. When installing the main unit in NISSAN
vehicles, use the parts attached to the unit
and follow the instructions in Figure 6.
When installing the main unit in TOYOTA
vehicles, use the parts attached to the vehicle
and follow the instructions in Figure 7.
2. Wire as shown in Section 7.
3. Reassemble and secure the unit in the
dashboard and set the face panel and center
panel.

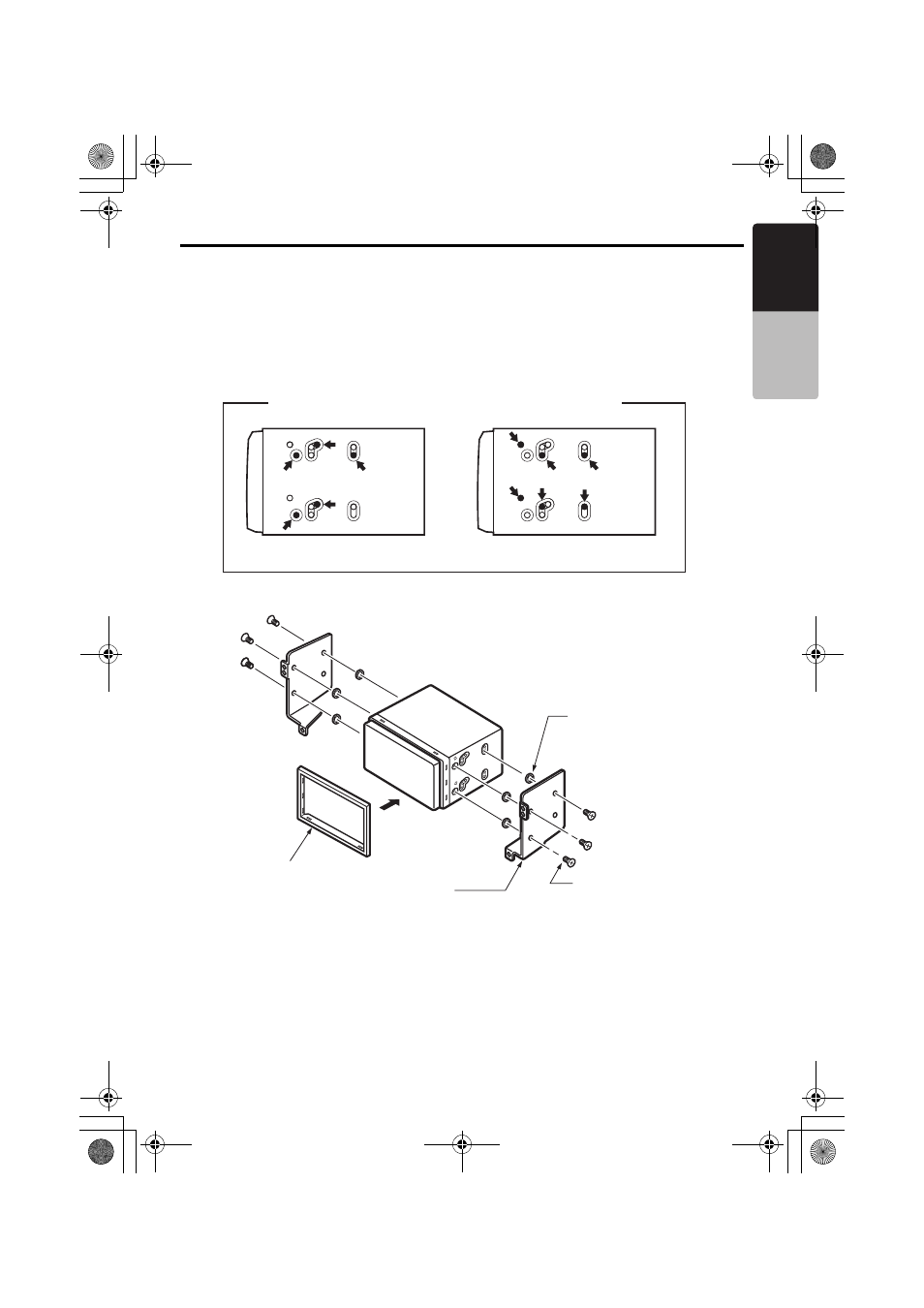

Installing the Main Unit in a NISSAN Vehicle
Note:
*1 Position the face panel with its wide edge at the
bottom. Fit the edge into the groove of the main
unit.
For NISSAN vehicle For TOYOTA vehicle
Mounting Screw Holes (Side View of the Main Unit)
6-Flat head screw
(M5 X 8)
(attached to the main unit)
6-Spacer (thickness: 1 mm)
Finisher (*1)
Figure 6
Main Unit
Mounting bracket
(1 pair for the left and right sides)
