ADJUSTMENTS
WARNING: Make sure the switch is off, the
switch key is removed, and your saw is
unplugged. Failure to do so could result in
accidental starting, resulting in serious pereonal
injury.
■ To remove the throat plate, first loosen the screw in
the throat plate with a phillips screwdriver and lift
the front end. Pull it out toward the front of the saw.
■ To re-install the throat plate, place It in the opening.
Push it toward the rear of saw base to engage the
spring clip.
Note: The keyslot in the throat plate will drop over the
screw.
■ Check that the throat plate is even with the table
top. If not, adjust the four set screws with a 2
mm hex key. See the procedure in the Assem­
bly sedtion.
■ Securely tighten throat plate screw. Do not allow
the throat plate to bow up above the table surface.
REMOVING / REPLACING THE THROAT
PLATE

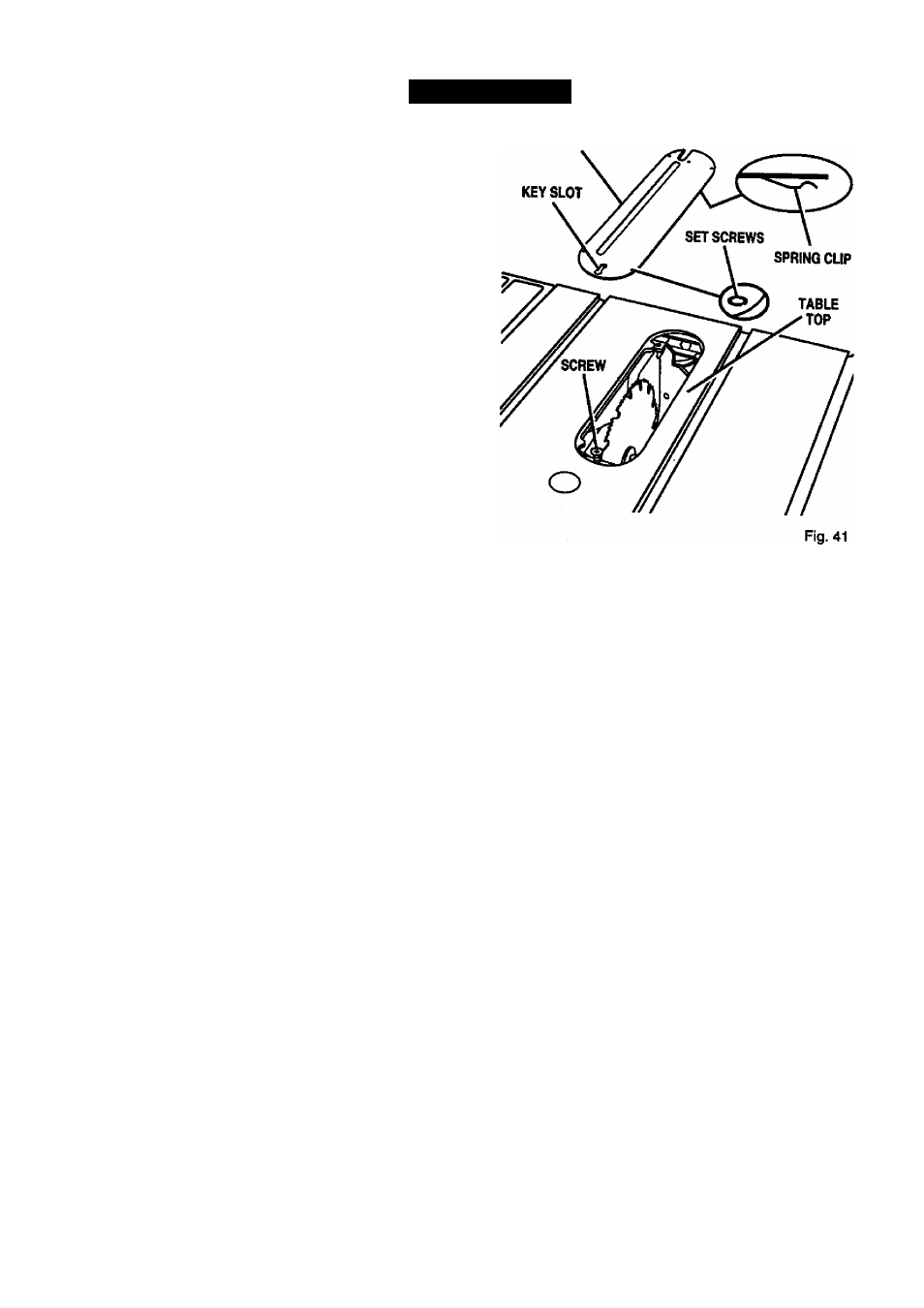

See
Figure 41.
THROAT PLATE
ClinFTIHAr TABLE SAW 315.228310
32
