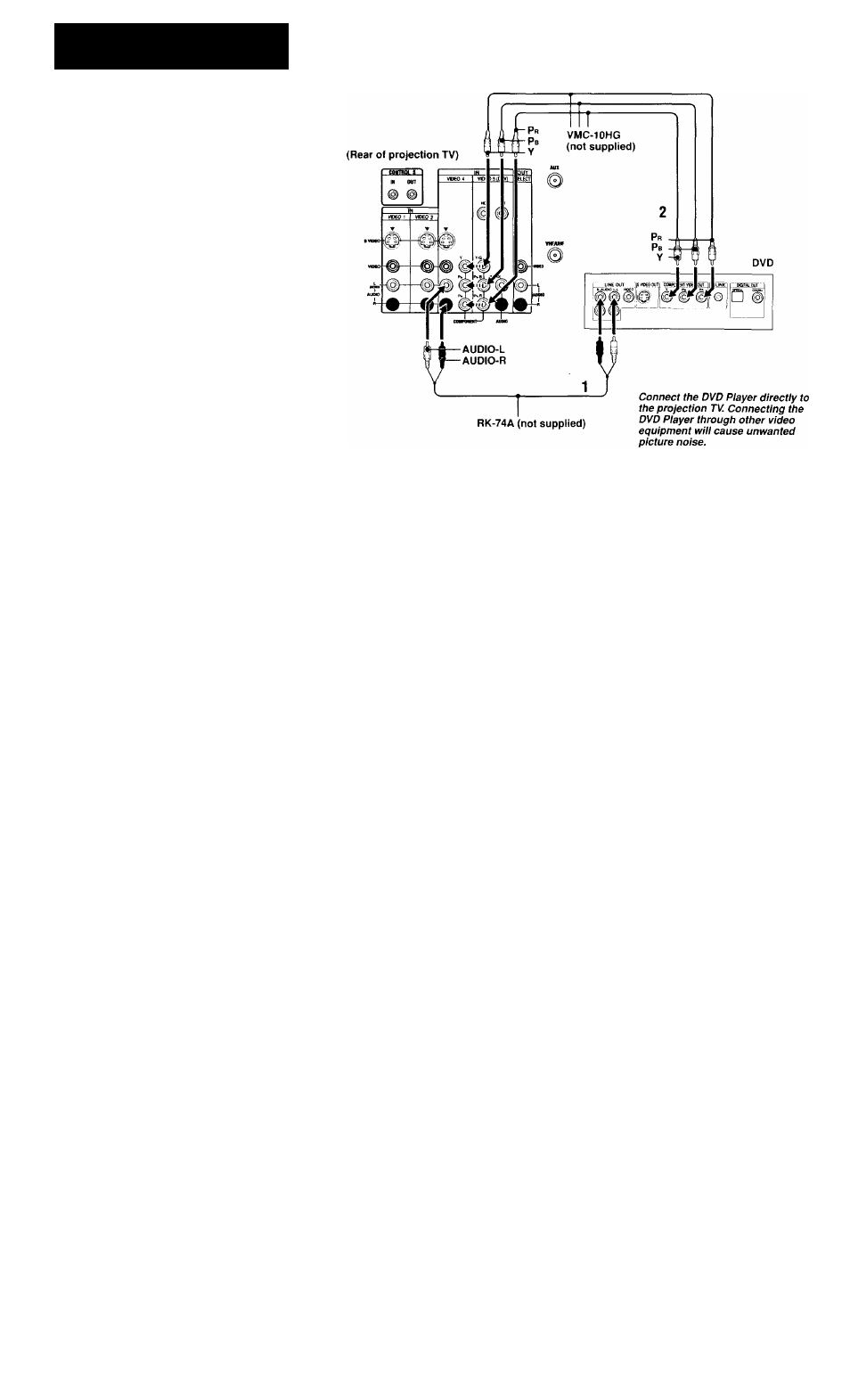

Connecting a DVD Player With
Component Video Output
Connectors
1
I'sins; an AUDIO cable, connect AUDIO R and
L of
L
ink
out
on the DVD Pla\ cr to AUDIO
R and U of VIDUO 4 IN or VIDHO (DTV)
IN on the proicction TV (Wliitc-AUDIO Left.
Red-AUDIO Right).
2
Using three VIDEO cables, connect't'. P
r
and
P
r
of the COMPONENT VIDEO OUT on the
DVD Player to Y. P
b
and P
r
of VIDEO 4 IN or
VIDEO 5 (DTV) IN on the projection TV.
Notes:
• If your DVD Player has 480p format capability,
connect it to the
Y. P
b
and
P
r
of VIDEO
.I
(DTV)
IN on the projection TV.
• Some DVD Player terminals may be labeled
differently. If so, connect as follows;
Connect Y (green) to Y.
Connect P
b
(blue) to C
b
. Cb or B-Y.
Connect P
r
(red) to C
r
. Cr or R-Y.
• Since the high quality pictures on a DVD disc
contain a lot of information, picture noise may
appear. In this case, adjust NR in the VIDEO menu,
(see "NR” on page 33)
16
Disconnect all power sources before making any connections.
