Connecting a DTV (Digital
Television) Receiver
Bct'orc connecting, ho sure to read the Oix'raling
Instructions ol the DTV recei\cr.
Connecting a DTV (digital
television) receiver with the GIB/RJ
HD/VD jacks
1 Attach the coaxial cable from the roof antenna
to VHF/UHF on the DTV receiver.

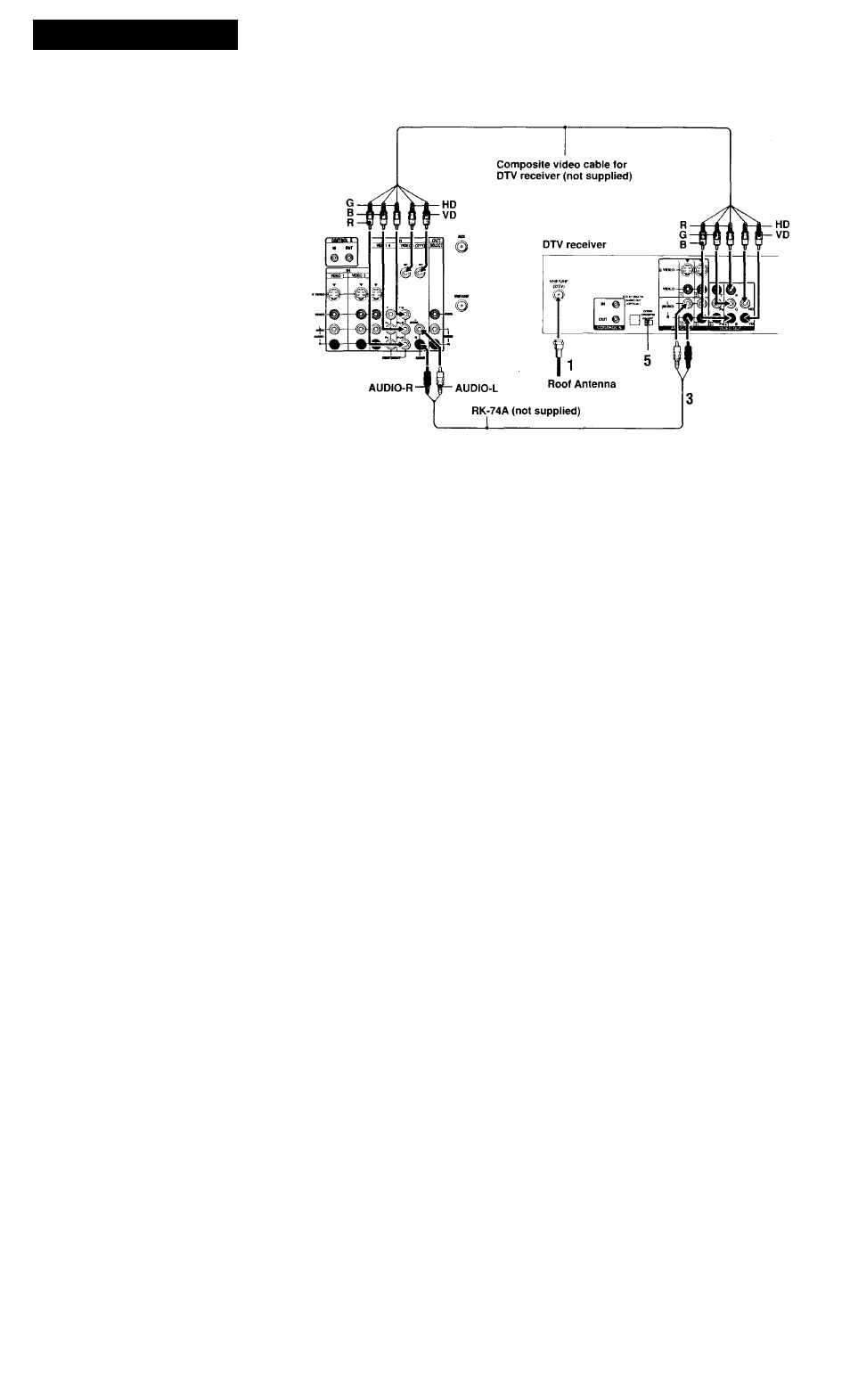

2 Using a composite video cable for DTV
receiver, connect G, B, R. HD and VD of
VIDEO OUT on the DTV receiver to G. B. R,
HD and VD respectively of VIDEO 5 (DTV)
IN on the projection TV.
If HD and VD outputs on the DTV receiver are
not available, proceed to step 2 in “Connecting
a DTV receiver with the Y/P
b /P r (component
video input) jacks” on page 10.
3 Using an AUDIO cable, connect AUDIO OUT
on the DTV receiver to AUDIO of VIDEO 5
(DTV) IN on the projection TV (White-
AUDIO Left, Red-AUDIO Right).
4 Select VIDEO by the TVA'IDEO button.
5 Select the SET UP menu and set DTV INPUT
to R.G.B. (see “DTV INPUT” on page 42).
Note:
• Some DTV receivers may have a DOWN
CONVERTER ON/OFF switch. This switch should
be set to OFF.
