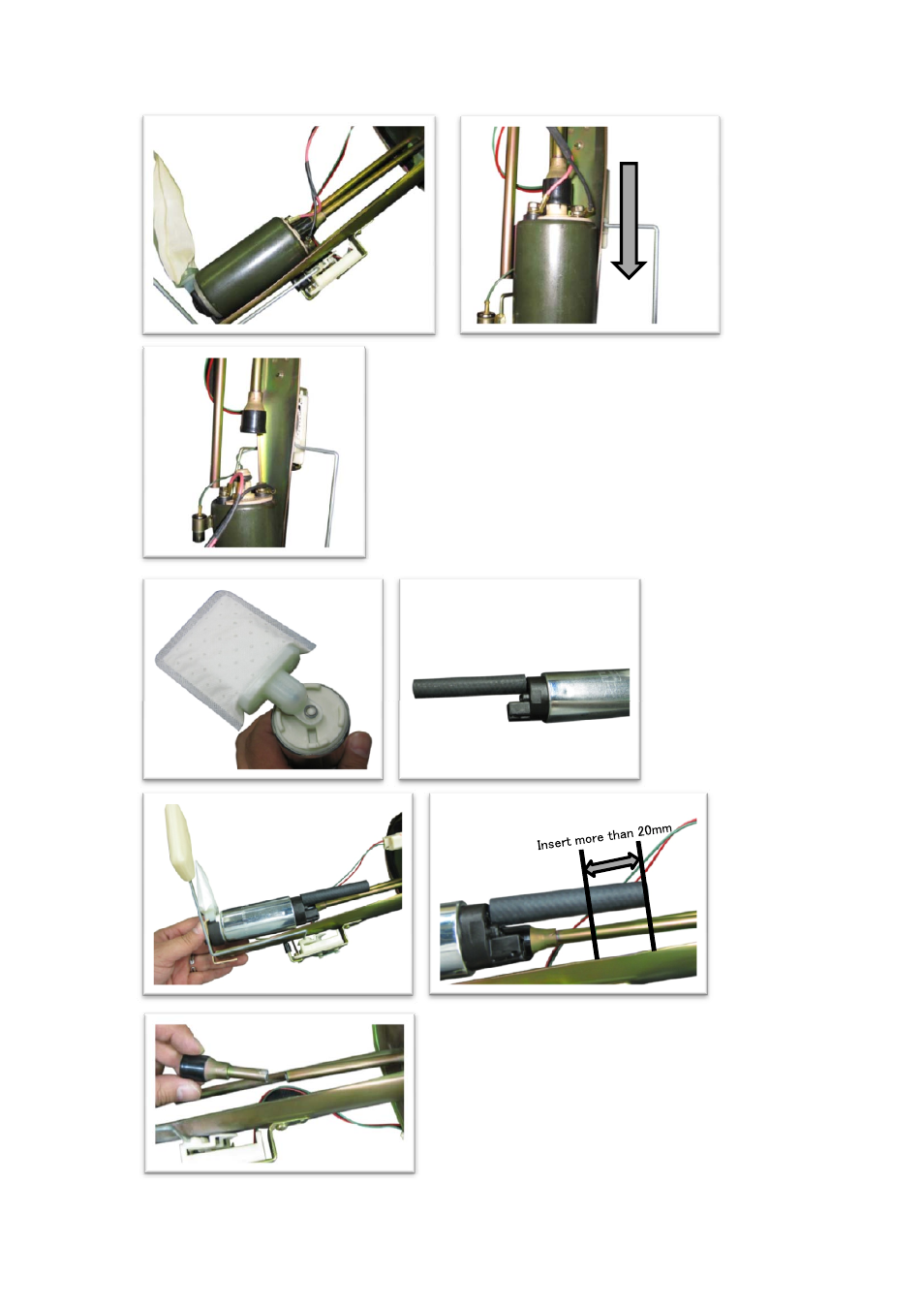

Be sure to pull it out straight because
the Fuel Pump is plugged into the pipe Bracket.

Use the mounting clips
to fit the filter that was
supplied to the Fuel
Pump. Then attach the
hose.

Pull straight

Have the Fuel Pump assembled with the washer and insulator
that was supplied with the Fuel Pump, then test fit it in the
correct mouting position. Then cut off any excess iron piping
that may cause any fitment issues etc.

9
