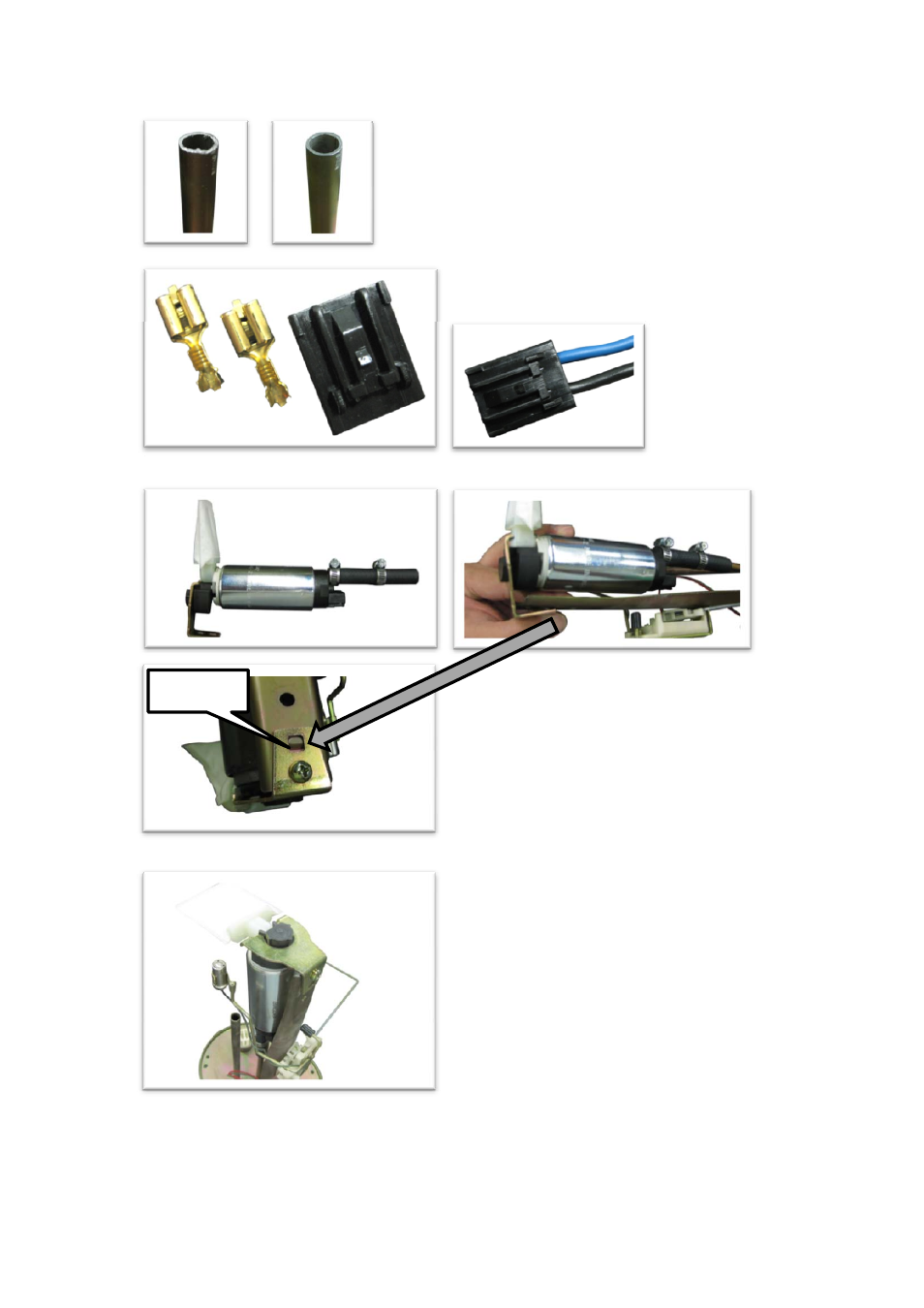

After cutting the pipe, remove any unwanted burr
and smooth the edges, then throughly clean the piping.

Disconnect the stock harness from the Fuel Pump.
Then cut the end off and connect the coupler
(included).

※ + - Please check the polarity.

This was the reason why the insulator was

Positioning

This was the reason why the insulator was
supplied with the pump. Position it under the
pump and adjust with the washer till it fits
(locks into place).

Refit the washer to the pump station assembly.
