2．TOMEI STRAIGHT PIPE INSTALLATION

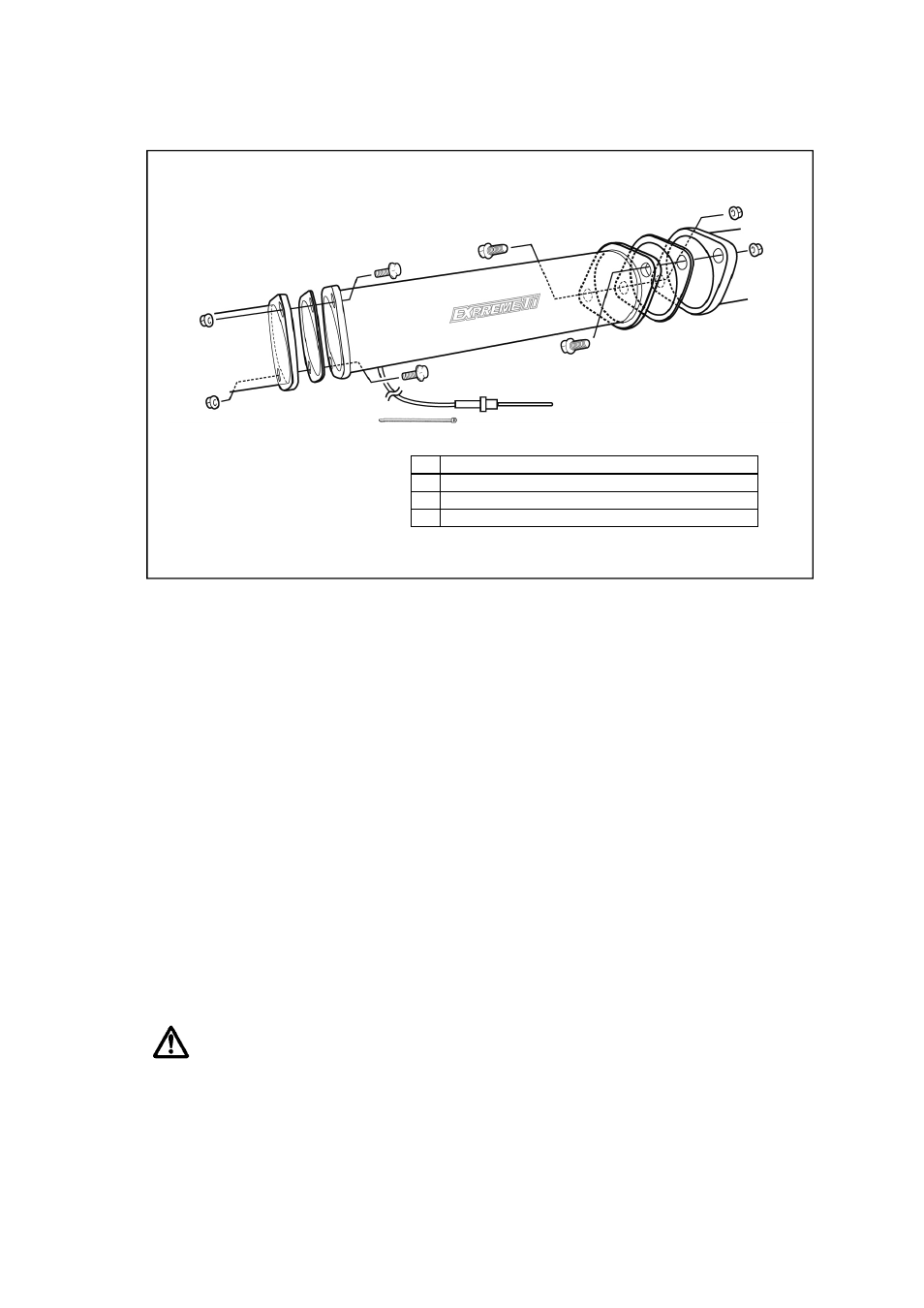

【Illustration of the mounting position of each bolt & gasket】

The installation of the bolts included in the kit is shown below.

【MOUNTING INSTRUCTIONS】

< Torque settings for the kit contents >

※Use the bolt smooth paste provided to prevent the bolts from seizures and rust welds.

Front (Front Pipe Side)→

←Rear (Muffler Side)

①

②※

③

②※

③

④

Exhaust Gas Temperature Sensor

Gasket
Flange Bolt M10
Flange Nut [34.0～39.0N・m (3.5～4.0kgf-m)]
Cable Tie

1.　Install the Straight Pipe with the supplied gaskets, bolts and nuts.

【FRONT PIPE SIDE】

※Use the Supplied Gasket Ref ①
　 Torque Settings Nut (Ref ③) [34.0～39.0N ・m (3.0～4.0kgf-m)]

【MUFFLER SIDE】

※ Use the supplied Gasket Ref: ①.
　 Torque Settings Nut (Ref ③) [34.0～39.0N ・m (3.5～4.0kgf-m)]

2.　Secure the Exhaust Gas Temperature Sensor to any part of the body with the supplied Cable Ties.

3.　Reconnect the cars battery negative terminal.

CAUTION

・ Please check all clearances with the vehicles body and make sure that the bolts are not interfering
　with anything else. The clearances can change from vehicle to vehicle. Be sure that all the bolts
　are tightened correctly so that there is no pollution caused form any exhaust leaks.
・After fitting the straight pipe and/or catalytic converter please check that there are no signs of oil,
　dirt so as not to burn/bake it later when the car is running.
TIP: clean all fingerprints and oil off the Titanium exhaust before starting the engine.

Gasket
Flange Bolt M10
Flange Nut [34.0～39.0N・m (3.5～4.0kgf-m)]
Cable Tie
