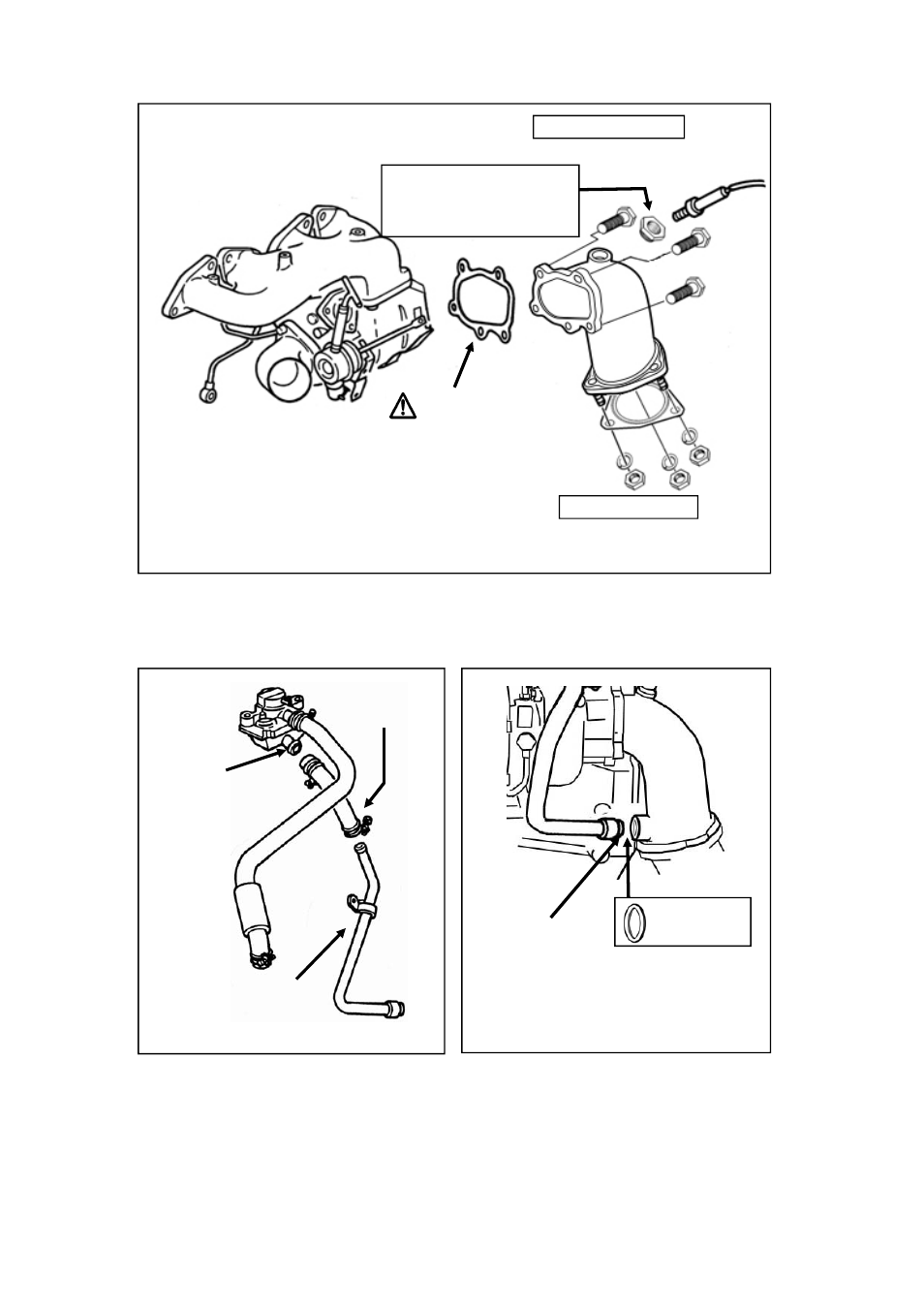

【TOMEI OUTLET PIPE INSTALLATION 】

※Use the Bolt Smooth Paste to prevent metal burns and rust welding.

【EAI PIPE 】

The following work will be required on PS13,RPS13 model cars.

PART NO : 423002（Without EAI）

PART NO : 423001 （Compatible Type)

T=29.4N・m (3.0kgf-m)

Used the Hex Bolt for the S14 & S15 cars.

This adapter screw nut is not
used on RPS13 '93-10~ Black
Rocker Cover Engines and

※

Gasket
Always use new

T=49N・m (5.0kgf-m)

PART NO.: 423002（Without EAI）

PART NO.: 423001 （Compatible Type)

・Connect the pipe back into the Outlet.

・※Apply the Bolt Smooth Paste that
was included in the kit.

3. INSTALLTION VERIFICATION

1. Check all the contact points from the harness.
2. Check for any gas leaks after the engine has been started

EAIControl Control
Inlet can be blocked
with blind plug and
band.

Remove
(Not used)

Can be removed
(Not Used)

Use a copper
washer.

※
