1．Removing the stock assembly

The following are basic instructions. For more details please refer to the vehicle's
official service manual.

1. Disconnect the negative battery terminal.

2. Remove the undercover.

3. Remove the catalytic converter.

4. Remove the right inner fender cover.

5. Remove the front and rear O2 sensor covers.

6. Remove the exhaust manifold.

7. Remove the exhaust joint pipe.

2．Installing the joint pipe.

【Positioning of the components】

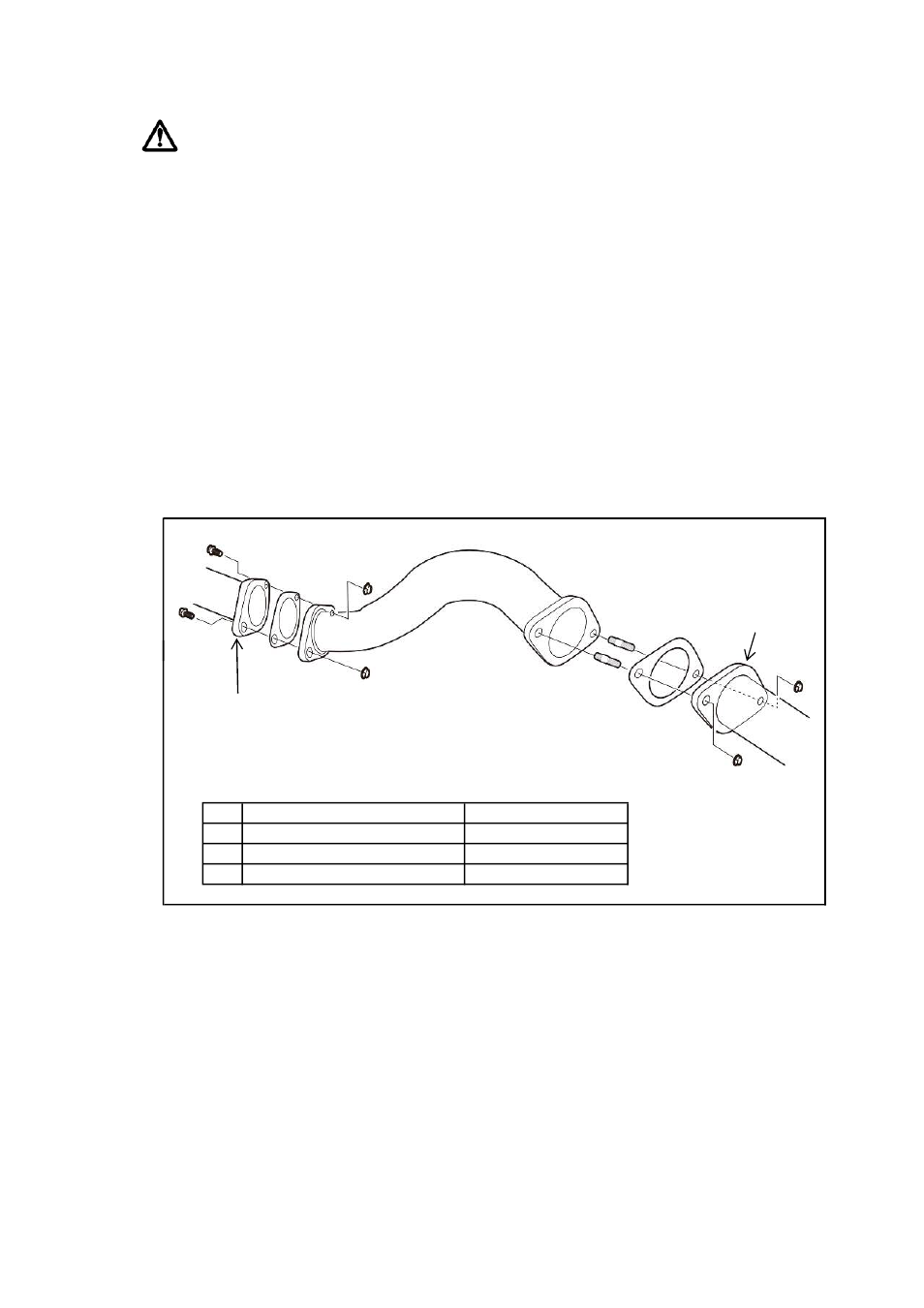

The positioning of the included parts are shown below together with the torque specifications.

①

②※

③※

②※

④

①

Muffler

<キット付属品使用箇所>

Gasket
Flange bolt
Stud bolt
Flange nut

【35.0N・m(3.6kgf-m)】

④

③

②

①

②※

③※

①

④

Exhaust manifold

Muffler
