Tomei Powered ARMS M7960 - Manual (Page 12)

INSTALLATION #2

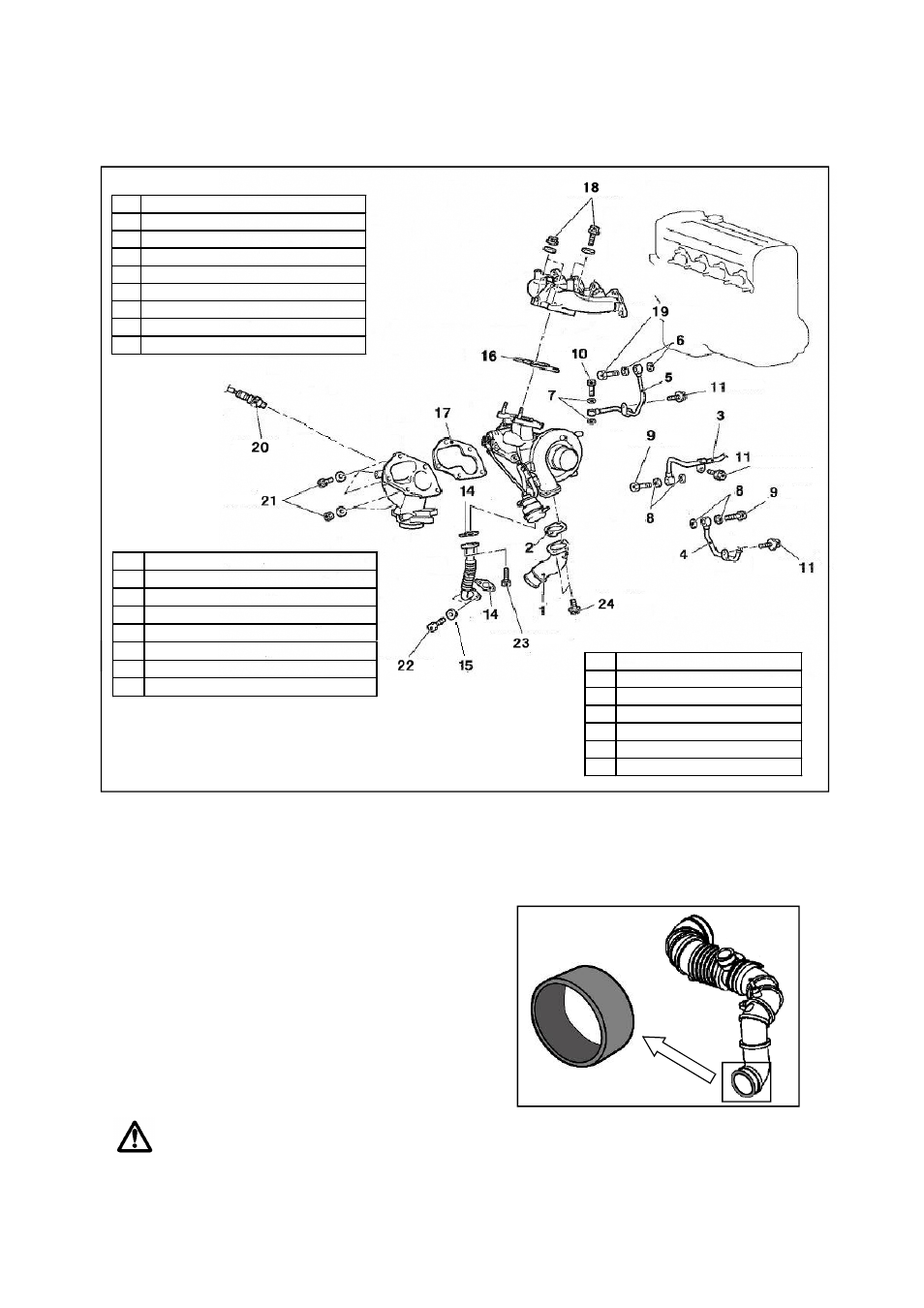

The below exploded illustration shows the location where the parts are fitted.
＜Kit Contents & Torque Specs＞
＜Torque Specs on the standard parts＞
① Air Outlet Pipe
② Air Outlet Gasket
③ Water Pipe A
④ Water Pipe B
⑤ Oil Pipe
⑥ Eye Bolt Gasket A
⑦ Eye Bolt Gasket B
⑧ Eye Bolt Gasket C
⑨ Large Eye Bolt [42±7 N・m] (4.3kgf-m)]
⑱ 64±5 N・m (6.5 kg-m)
⑩ Small Eye Bolt [31±2N・m(3.2 kgf-m)]
⑪ Bolt [10±1 N・m(1.0 kgf-m)]
⑫ Stud Bolt (Exhaust Manifold Side)
⑬ Oil Return Tube Gasket
⑭ Stud Bolt (Outlet Side)
⑮ Oil Return Gasket
⑯ Gasket (Exhaust Manifold Side)
※ WHEN RETAINING THE STANDARD SUCTION
・ EVO 6-7 are used as stock. Direct fitment.
・ The EVO 4-5 models have a rubber restrictor tube
which when removed will allow the pipe to fit to
the turbo without any issues.
Please DO NOT over tighten the pipe and the tubes when installing on the engine.
The parts can be damaged when excessive loads are applied and when items are
fitted with incorrect angles.
12
＜Torque Specs on the standard parts＞
Remove
⑱ 64±5 N・m (6.5 kg-m)
⑲ 17±2 N・m (1.7 kgf-m)
⑳ 44±5 N・m (4.5 kgf-m)
○ 21 59±5 N・m (6.0 kgf-m)
○ 22 14±1 N・m (1.4 kgf-m)
○ 23 9±1 N・m (0.9 kgf-m)
○ 24 19±1 N・m (1.9 kgf-m)
⑮ Oil Return Gasket
⑯ Gasket (Exhaust Manifold Side)
⑰ Gasket (Outlet Side)
