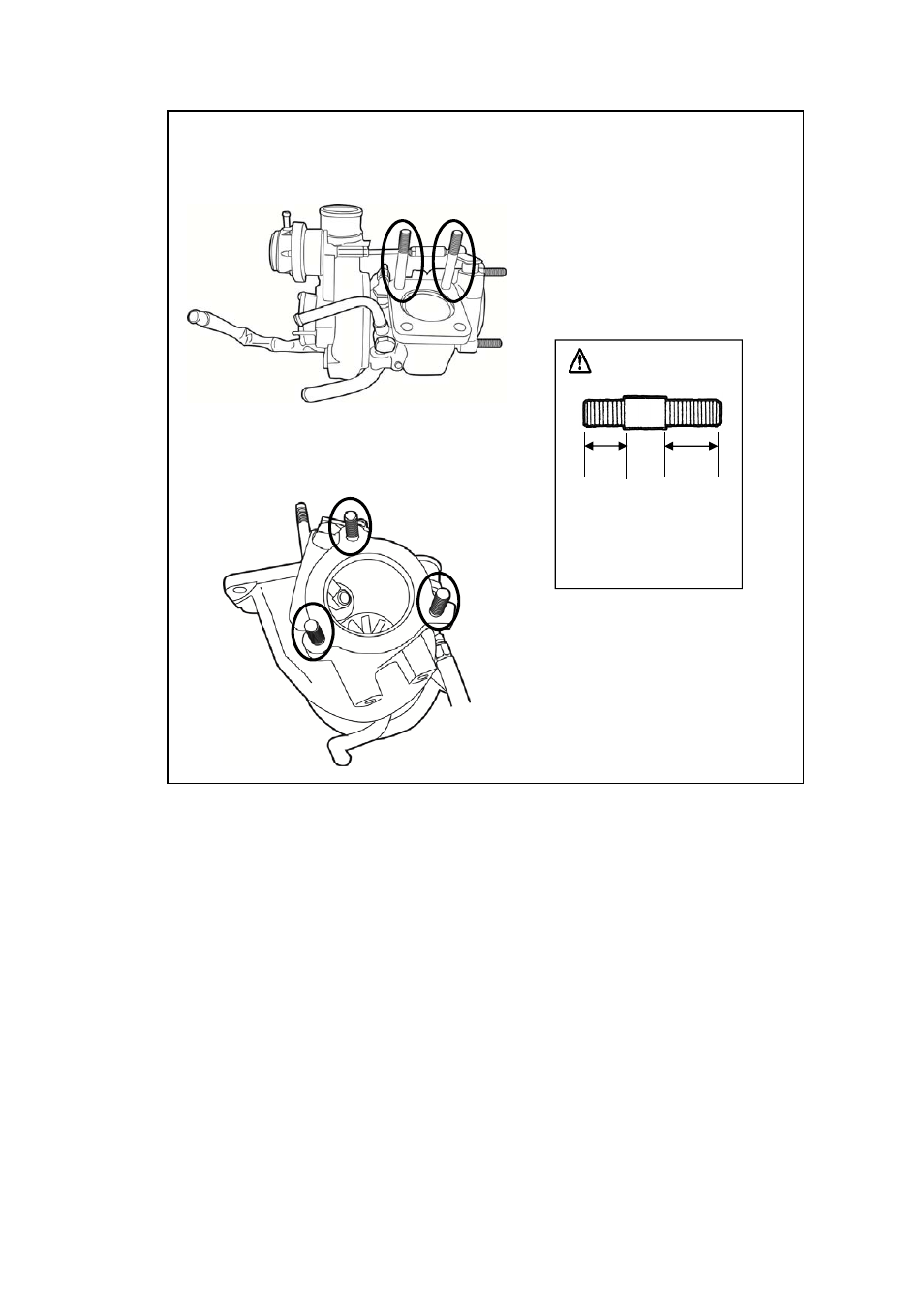

3. STUD BOLT INSTALLATION.
Install the M10 L=80mm Stud Bolt (Part Number ⑥-4)
to the exhaust manifold side of the exhaust housing.
Install the M10 L=47mm Stud Bolt (Part Number ⑥-3)
To the outlet side of the exhaust housing.
* Turbine side is shorter.
* Please use the double nut for
mounting.
* When removing the nut, take
care not to move the bolt.
Note the stud bolt's
orientation.
Short
Long
