Tomei Powered FJ MAIN BOLTS - Manual (Page 7)

CAUTION!
■ The Bolts and screw holes threads must be clean and free from grime.
■ If the torque specs are not followed as below there will be a risk of possible Cylinder Block distortion.
Please be sure to tighten up the bolts to the specified torque specs as noted below.
■ Please check, clean and correct the blocks threads with a tap to the right thread size of the bolt
to ensure correct torque loads are applied to the bolts when assembled.
① Apply the grease that came in the kit on
the threads.

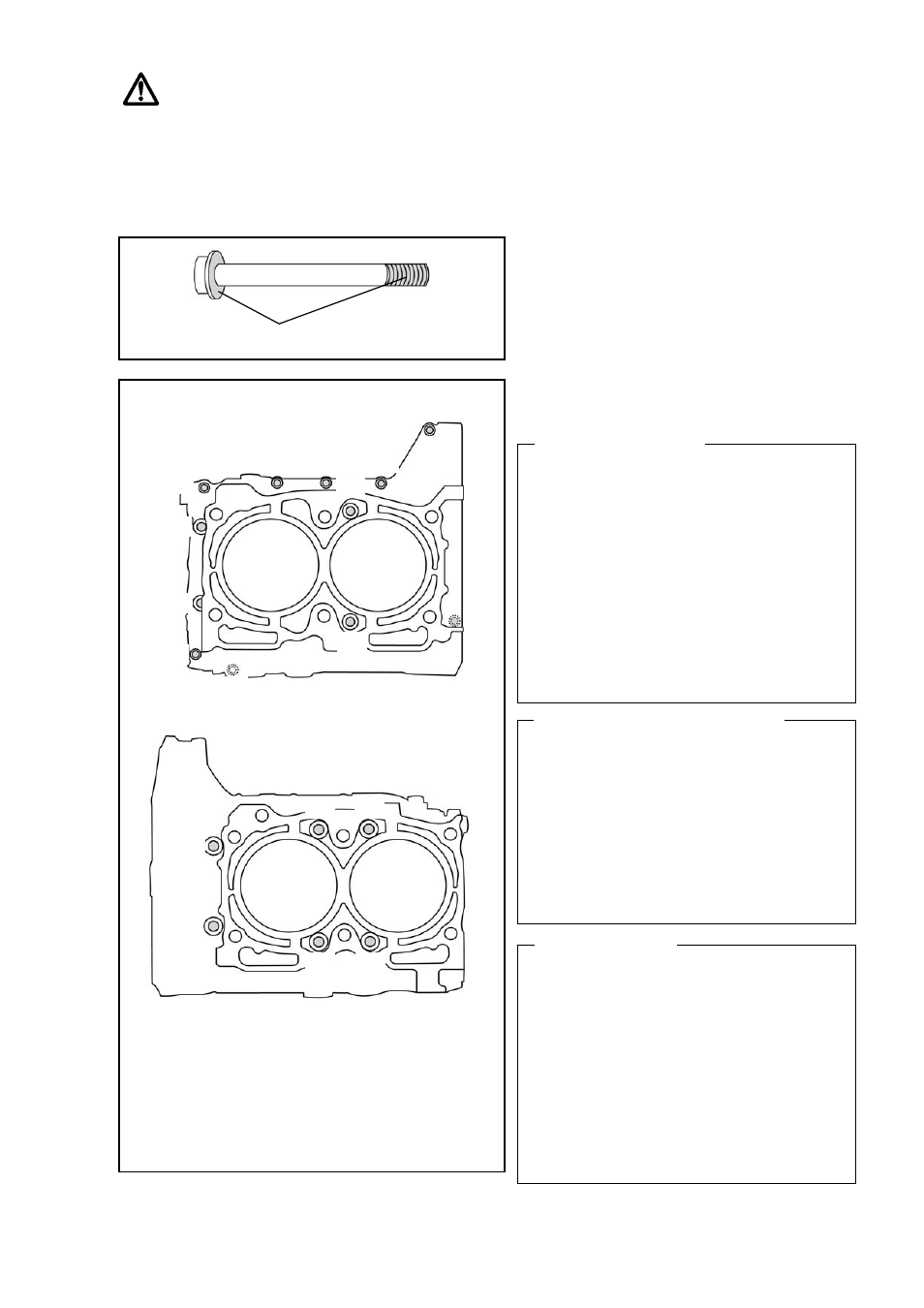

② The below specs are numbered in relation
Left Bank to the illustration on the left.
Right Bank
ADEFGI M10 Bolt Seal Washer
JH M10 Long Bolt + Washer x2
BC M10 Short Bolt + Washer x2
④ M8 Long Bolt + Washer x1
①②③⑤⑥⑦ M8 Short Bolt + Washer x6
⑧ Reuse Standard M6 Bolt
7
Apply Grease Here
E
F
G
H
I
J
A
B
C
D
④
⑤
③ ① ②
⑦
⑥
⑧
EJ20 Sti (EJ207)
(1)Left Bank A~D 2.0kgf・m (19.6N・m)
(2)Right Bank E~J 2.0kgf・m (19.6N・m)
(3)Left Bank A~D 5.0kgf・m (49.0N・m)
(4)Right Bank E~J 5.0kgf・m (49.0N・m)
(5)Left Bank AD 6.0kgf・m (58.8.1N・m)
(6)Right Bank EFGI 6.0kgf・m (58.8N・m)
(7)Left Bank ①~⑦ 3.0kgf・m (29.4N・m)
(8)Left Bank ⑧ 0.65kgf・m (6.4N・m)
EJ25 (EJ255)
(1)Left Bank A~D 2.0kgf・m (19.6N・m)
(2)Right Bank E~J 2.0kgf・m (19.6N・m)
(3)Left Bank B & C 4.0kgf・m(39.2N・m)
(4)Left Bank A & D 5.0kgf・m(49.0N・m)
(5)Right Bank E~J 5.0kgf・m (49.0N・m)
(6)Left Bank ①~⑦ 3.0kgf・m (29.4N・m)
(7)Left Bank ⑧ 0.65kgf・m (6.4N・m)
(1)Left Bank A~D 2.0kgf・m (19.6N・m)
(2)Right Bank E~J 2.0kgf・m (19.6N・m)
(3)Left Bank A~D 5.0kgf・m (49.0N・m)
(4)Right Bank E~J 5.0kgf・m (49.0N・m)
(5)Left Bank ①~⑦ 3.0kgf・m (29.4N・m)
(6)Left Bank ⑧ 0.65kgf・m (6.4N・m)
EJ20 Sti Excluded (EJ205)
