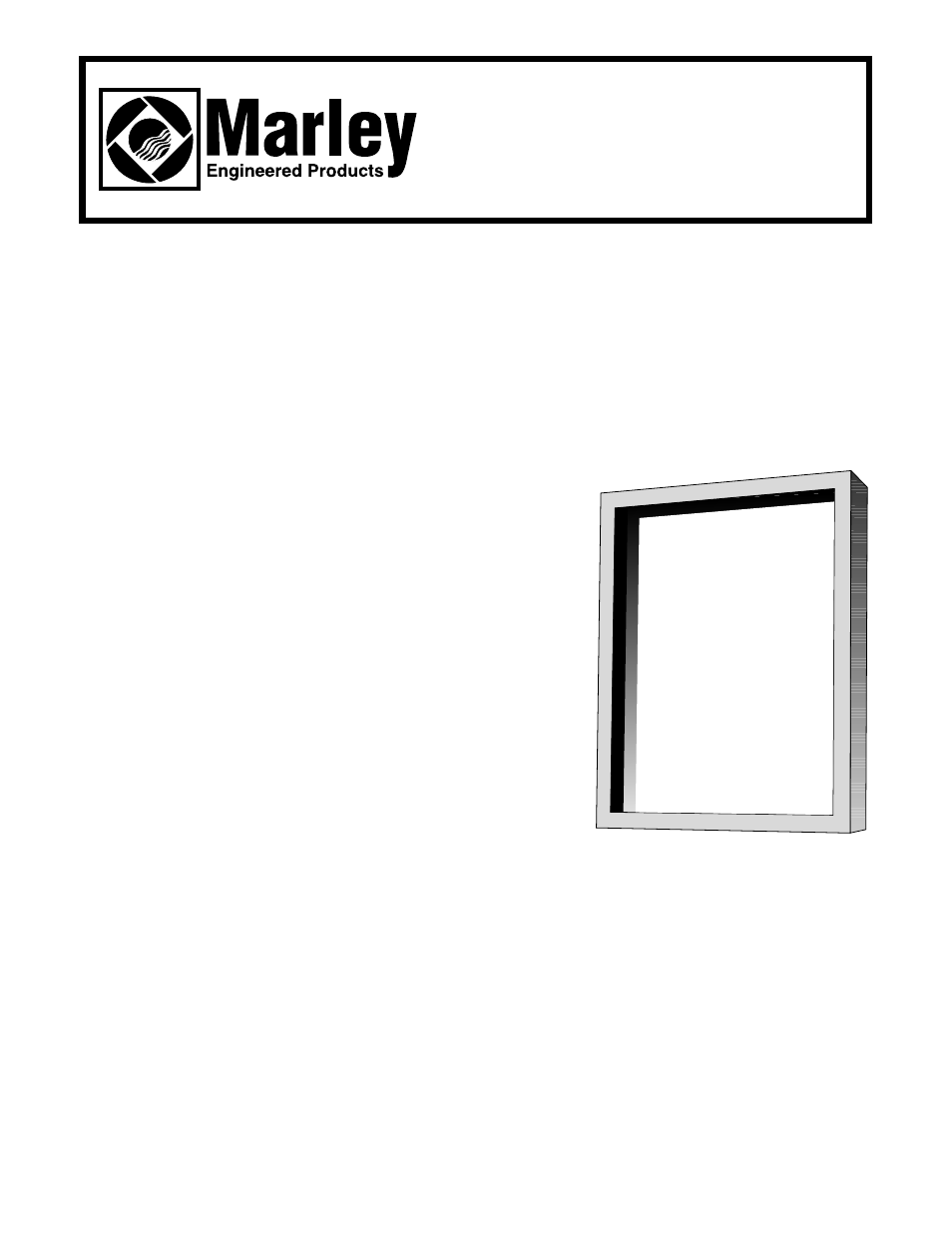

INSTALLATION INSTRUCTIONS
SURFACE MOUNTING
ADAPTER
MODELS 417 & 418
READ AND SAVE THESE INSTRUCTIONS
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself
and others by observing all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
Description
The Surface Mounting Adapter is used when recessed
installation of the wall heater is impractical. One side has (8)
.187 diameter holes for mounting to wall, the other has (4)
.106 diameter holes for mounting heater to adapter. The
adapter can be mounted on most wall surfaces - brick, con-
crete, cement block, wood, plaster, etc.
1. Follow all state and local safety codes as well as the
National Electric Code (NEC) and the Occupational
Safety and Health Act (OSHA).
2. Before attempting any electrical connections to this
heater, make sure that the circuit breaker controlling
the circuit to which the heater is to be connected has
been thrown to the off position. The circuit breaker
panel door should be locked or tagged while heater
wiring is being connected.
3. The heater must be grounded in accordance with the
applicable codes to the ground screw provided in the
housing.
4. Protect the power supply cable from kinks, sharp
objects, oil, grease, hot surfaces or chemicals.
5. Do not install the heater behind room or cabinet
doors or in a position such that the air discharge can
be blocked in any manner. Do not install behind towel
racks, furniture, drapes or coat racks.
6. Check heater voltage on data plate and make sure
that it is the same as the electric service supply.
