Qmark FRP/FRS - 2 & 3 Element Infrared Heaters - Manual (Page 2)

Installation of Quartz Lamp Element
Remove terminal cover at each end of fixture to gain access to
terminal blocks. Loosen #10 hex nut on terminal stud, then
wrap element lead around terminal one full turn as shown in
Figure 1, Step 2. Tighten nut, making sure there is some slack
in the lead after the attachment is made.
Installation of Quartz Tube Element
Remove terminal cover at each end of fixture to gain access to
terminal blocks. Loosen #10 hex nut and install element as
shown in Figure 2.
Installation of Metal Sheath Element
All unit sizes:
Remove terminal cover at each end of fixture to gain access
to terminal blocks. Loosen #10 hex nut, then attach one end
of element to terminal stud as shown in Figure 2.
24 Inch Units:
Attach element to other end terminal block and replace ter-
minal covers.
33 Inch and 46 Inch RP2 and RS2 Two Element Units:
With one element attached to terminal, slide insulator over
metal sheath element and attach opposite end of element.
Complete assembly as shown in Figure 3 using bracket with
one mounting hole. Discard extra hardware and bracket with
two mounting holes. Replace terminal covers.
RP3 and RS3 Three Element Units:
With one element attached to terminal, slide insulator over
metal sheath element and attach opposite end of element.
Complete assembly as shown in Figure 4 using bracket with
one mounting hole on outside element and using bracket
with two mounting holes on middle element. Discard extra
hardware and mounting brackets. Replace terminal covers.
!
WARNING
Excess element lead wires could come in contact with the
heater enclosure and create a shock or fire hazard.
CUT OFF ALL EXCESS LEAD MATERIAL.

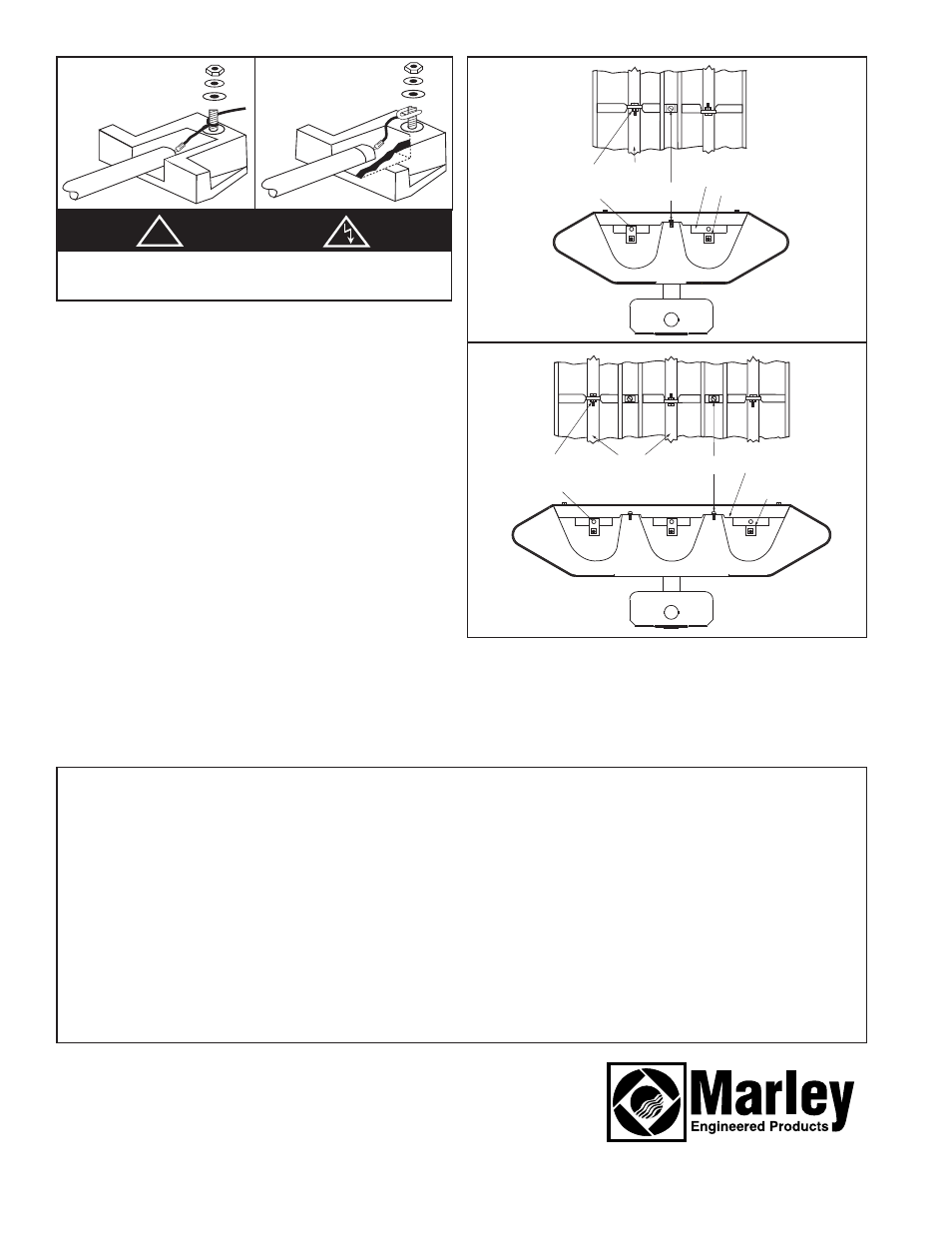

Figure 1 Figure 2
Metal Sheath
Elements
(2 req'd)
#10
Screws
10-32x1/2" Screw
(2 req'd)
Washer (2 req'd)
10-32 Nut (2 req'd) 1215-2174-000 Bracket
(2 req'd)
2900-0025-000 Insulator
(2 req'd)
Metal Sheath
Elements
(3 req'd) #10
Screws 10-32x1/2" Screw
(3 req'd)
Washer (3 req'd)
10-32 Nut (3 req'd)
Mounting Brackets
1 With 2 Mounting Holes
2 With 1 Mounting Hole
2900-0025-000
Insulator
Figure 3 RP2 or RS2
Figure 4 RP3 and RS3
