Chapter 3 Installing the IP/TV Server
Installing Cisco IP/TV 3427 Broadcast Server Units
3-26
Cisco IP/TV 3400 Series Servers User Guide
OL-4467-01

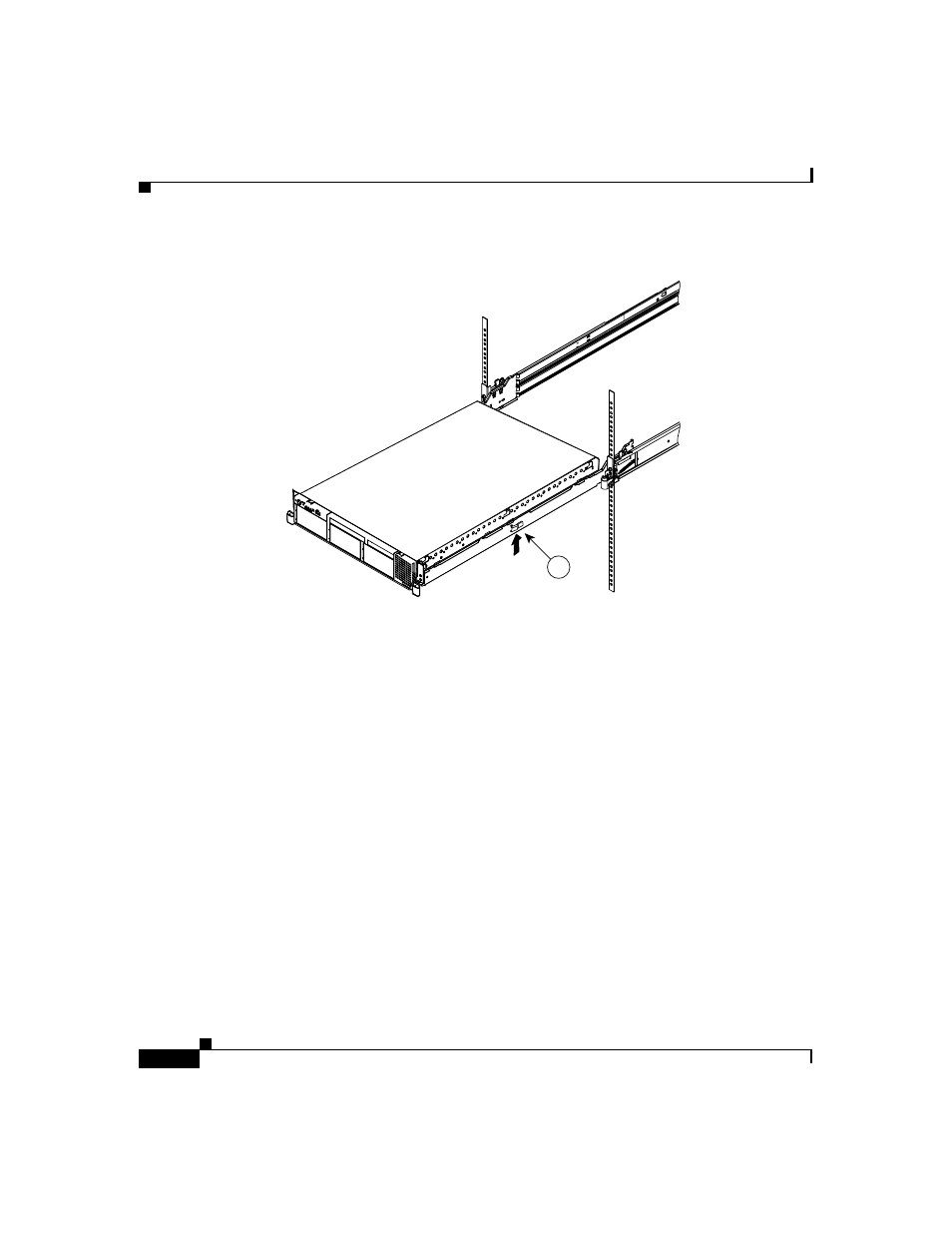

Figure 3-21 Sliding in the IP/TV Server
Step 6 Slide the IP/TV Server into the rack until the release latches (labeled 1 in
Figure 3-22 ) lock into place. To slide the IP/TV Server out of the rack, press the
release latches.
83133
1
