Chapter 1 Introducing IP/TV Servers
Cisco IP/TV Broadcast Servers
shows the location of the back panel LEDs, and
describes
their function.

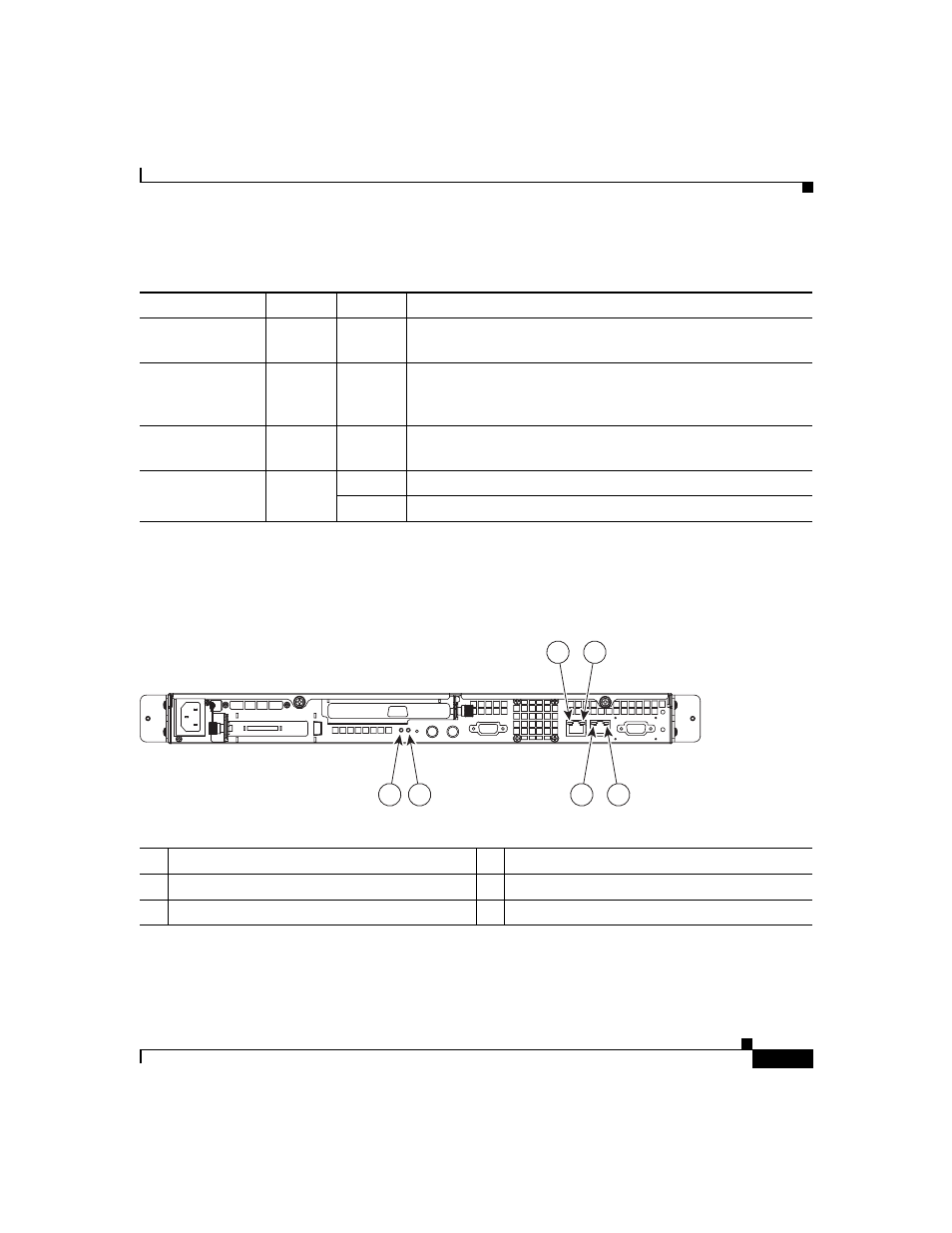

Figure 1-8
Cisco IP/TV 3426 Broadcast Server Back Panel LEDs
Table 1-7
Cisco IP/TV 3426 Broadcast Server Front Panel LEDs
Item
Color
State
Description
CD-ROM drive
activity
Green
On
Indicates that the CD-ROM drive is in use.
System error
Amber
On
Indicates that a system error has occurred. An LED on the
diagnostic LED panel will also be on to further isolate the
error.
Hard disk drive
activity
Green
Flashing
Indicates that the associated hard disk drive is in use.
Power
Green
On
Indicates that power is flowing to IP/TV Server.
Flashing
Indicates that IP/TV Server is in standby mode.
1
Ethernet 1 link
2
Ethernet 1 activity
3
Ethernet 2 activity
4
Ethernet 2 link
5
Power
6
System error
1
2
4
3
6
5
