Chapter 3 Installing the IP/TV Server
Installing Cisco IP/TV 3426 Broadcast Server Units
3-18
Cisco IP/TV 3400 Series Servers User Guide
OL-4467-01

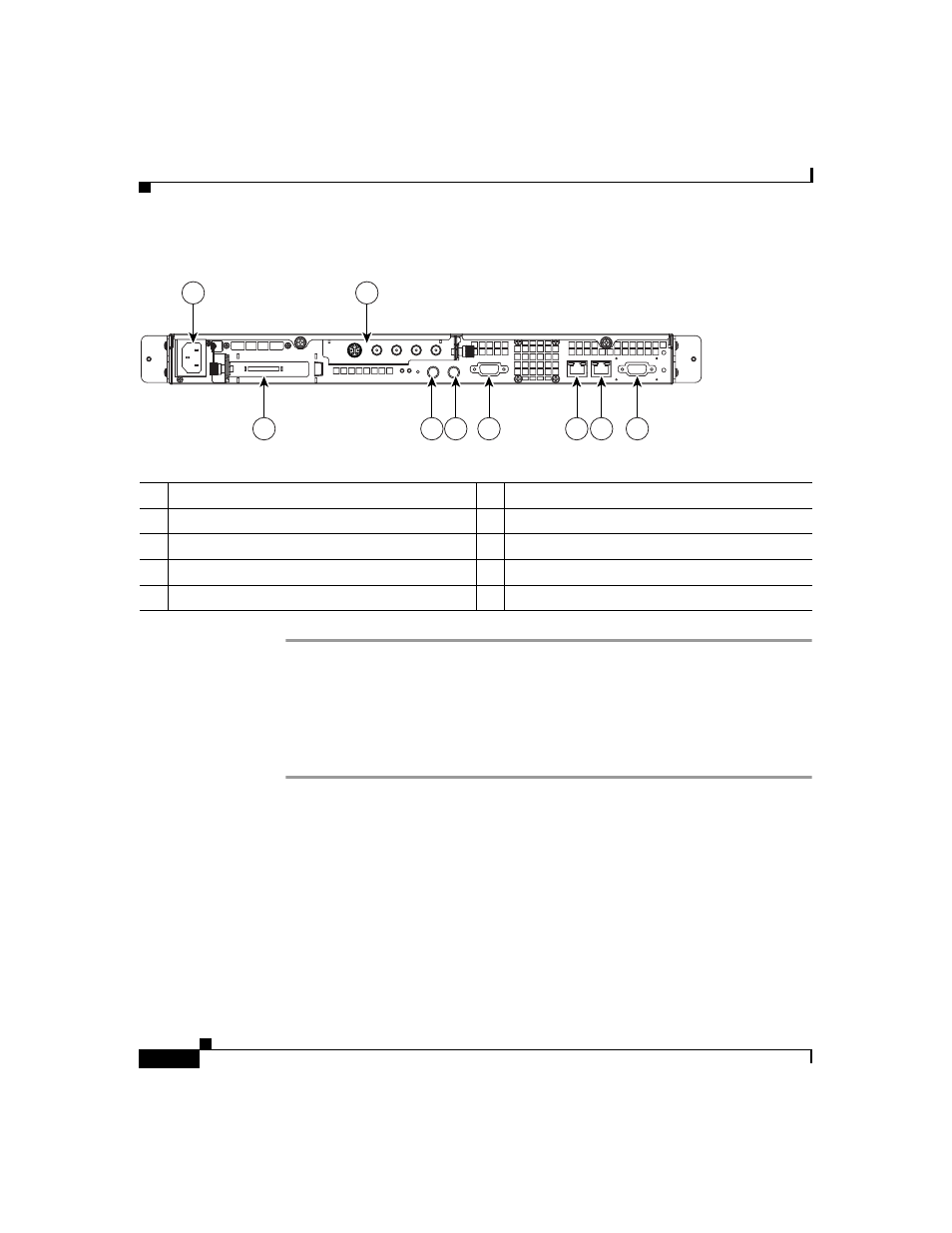

Figure 3-15 IP/TV 3426 Broadcast Server Back Panel Ports and Receptacles
Connecting Power and Booting the System
To connect power to your system, follow these steps:
Step 1
Review the information in the
“Safety Warnings” section on page 2-2
.
Step 2
Plug the power cord into the power cord receptacle on the back of the IP/TV
Server. (See
Step 3
Connect the other end of the power cord to a power source at your installation site.
Step 4
Power up all externally connected devices.
1
AC power receptacle
2
Winnov Videum 4400 video capture card
3
Serial port
4
Ethernet 2 receptacle
5
Ethernet 1 receptacle
6
Onboard video port
7
Mouse port
8
Keyboard port
9
PCI 2; SCSI adapter and port
96401
1
2
4
3
7
8
5
6
9
