Chapter 3 Installing the IP/TV Server
Installing Cisco IP/TV 3425 and 3425A Server Units
3-4
Cisco IP/TV 3400 Series Servers User Guide
OL-4467-01
• One monitor cable
• Documentation
Attaching the Mounting Brackets
The chassis mounts to two rack posts with brackets that attach to the front, mid,
or rear sides of the chassis. The brackets for 19-inch (48.26-cm) and 23-inch
(58.42-cm) racks are the same; however, they are mounted differently on the
chassis. (See
Figure 3-1 .) Brackets for a 19-inch (48.26-cm) equipment rack
require four rack screws in each bracket, and brackets for a 23-inch (58.42-cm)
equipment rack require two screws in each bracket.

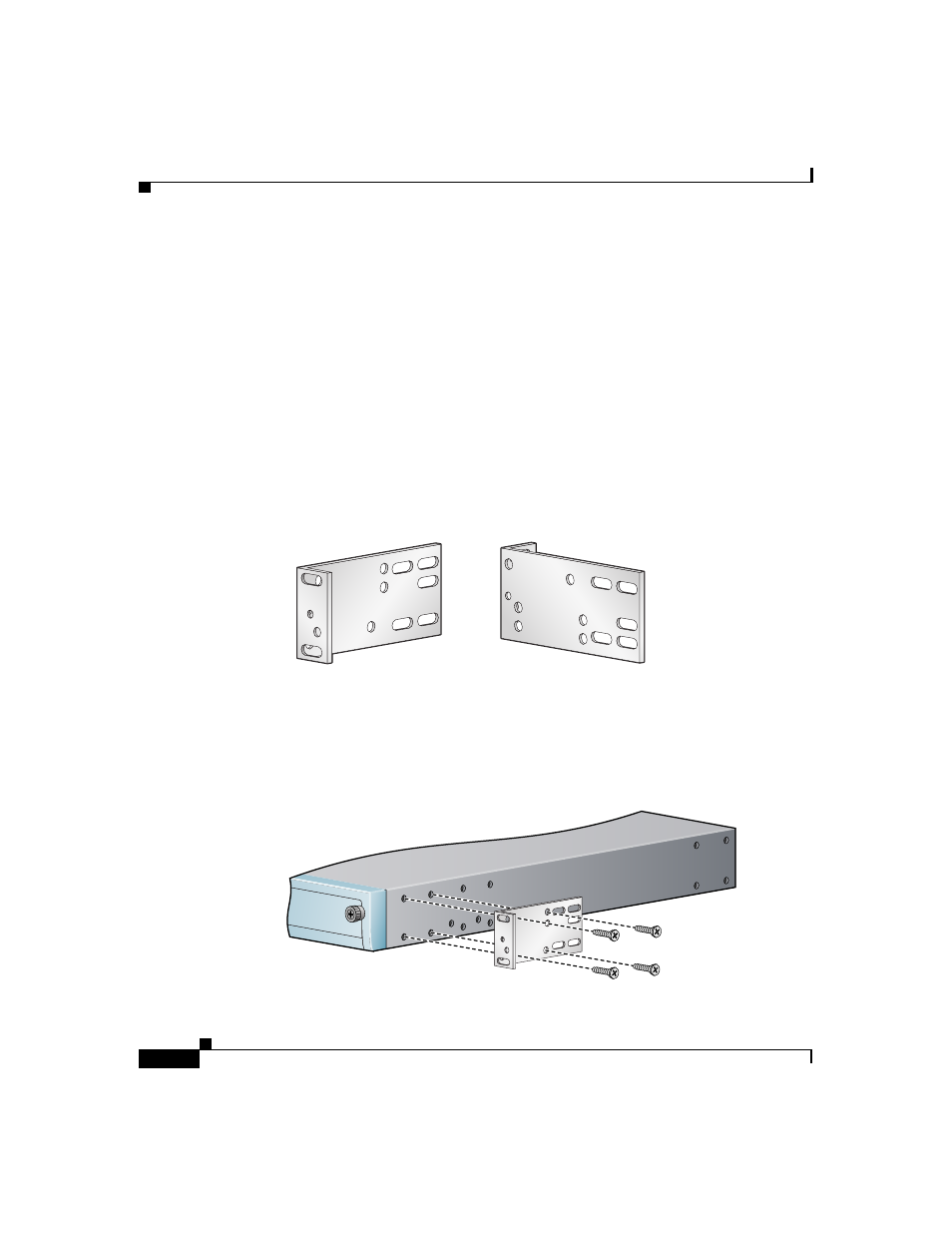

Figure 3-1 Rack-Mount Brackets
Figure 3-2 , Figure 3-3 , and Figure 3-4 show the three bracket mounting positions
on the chassis. The brackets are oriented for a 19-inch (48.26-cm) equipment rack.
Figure 3-2 Bracket Position for Front Mount
44211
Orientation for 23- or 24-inch rack Orientation for 19-inch rack
44212
DRIVE 1
Content Engine 590
Front
Rear
