1-15
Cisco IP/TV 3400 Series Servers User Guide
OL-4467-01
Chapter 1 Introducing IP/TV Servers
Cisco IP/TV Broadcast Servers
Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits
to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits,
and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables. Statement 1021

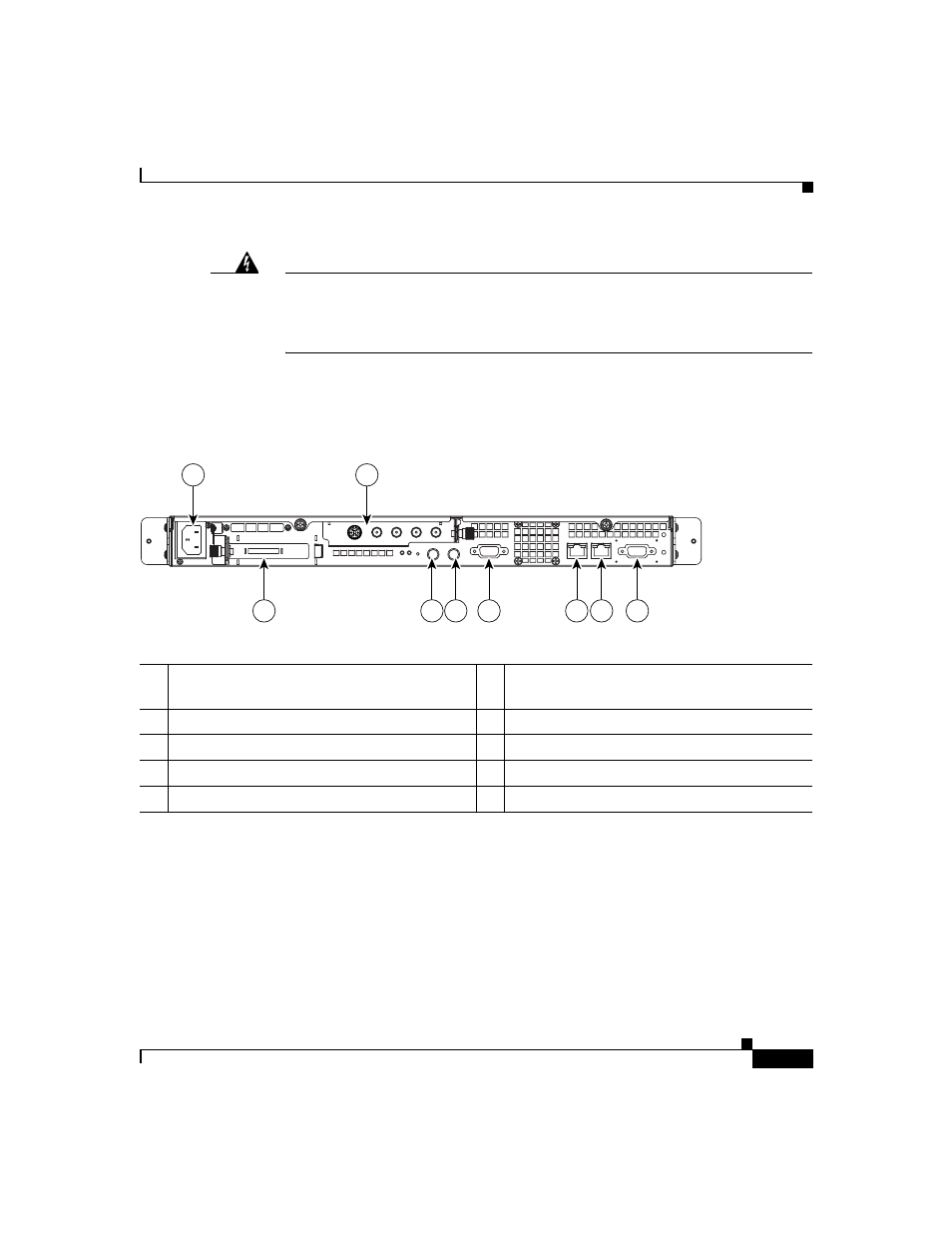

Figure 1-9 shows the location of the Cisco IP/TV 3426 Broadcast Server
back panel ports and receptacles.
Figure 1-9 Cisco IP/TV 3426 Broadcast Server Back Panel Ports and Receptacles
Table 1-9 describes the back panel ports and receptacles.
1 AC power receptacle 2 PCI slot 1; Winnov Videum 4400 AV video
capture card and ports
3 Serial port 4 Ethernet 2 receptacle
5 Ethernet 1 receptacle 6 Onboard video port
7 Mouse port 8 Keyboard port
9 PCI slot 2
96401
1 2
4 3 7 8 5 6 9
