Chapter 3 Installing the IP/TV Server
Installing Cisco IP/TV 3427 Broadcast Server Units

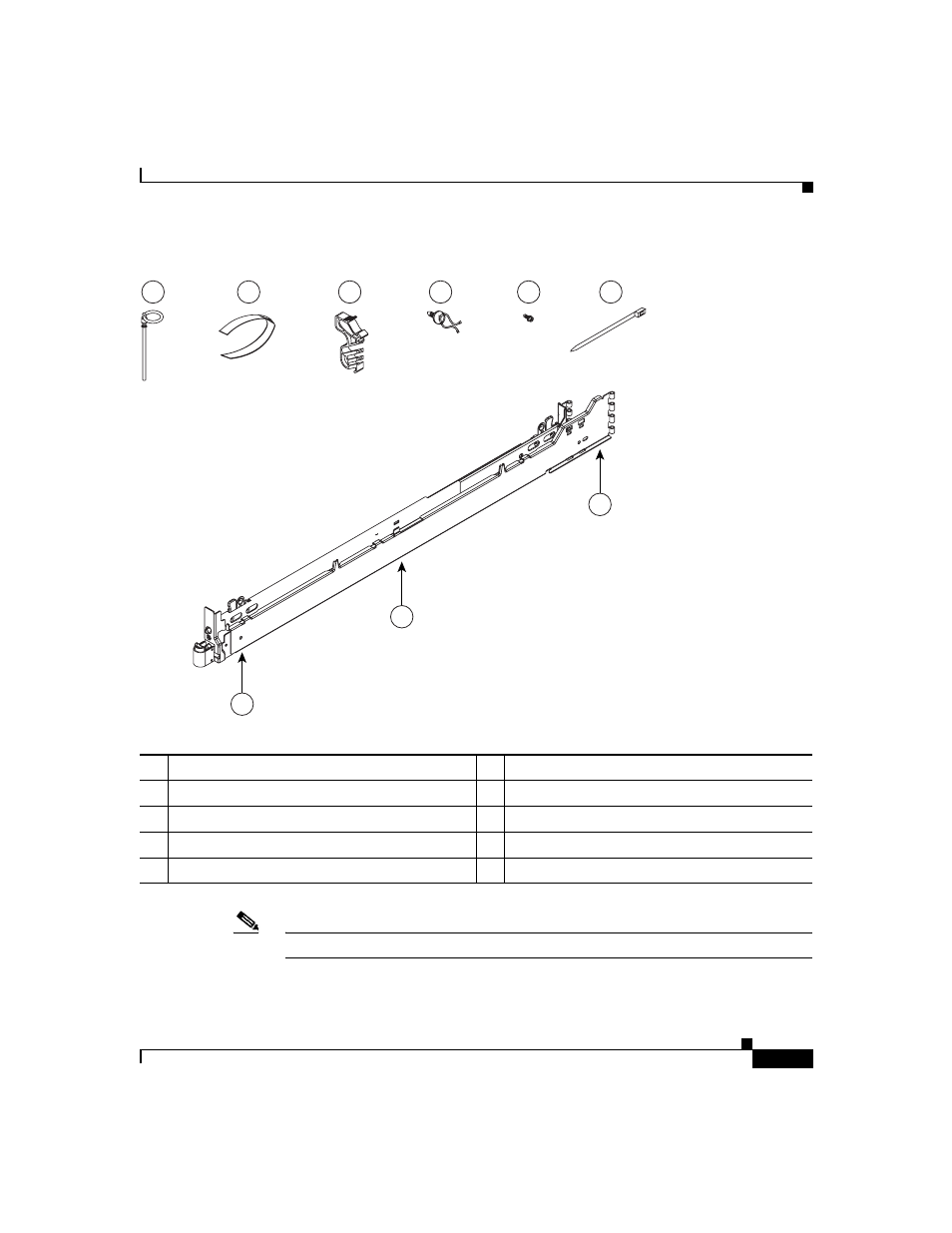

Figure 3-16 Rack Installation Kit
Note
The rack kit includes a left and a right slide rail.
1
Hinge pins (2)
6
Cable ties (5)
2
Cable strap (5)
7
Back of rail
3
Cable restraint bracket (2)
8
Slide rail (2) (left rail shown)
4
Cable clamp (5)
9
Front of rail
5
M6 screws (5)
83128
1
2
3
4
5
6
8
7
9
