Removal and Replacement Procedures
2-38 Compaq ProLiant ML350 Generation 3 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Steel Dragon 2.4 Part Number: 278704-002 Last Saved On: 12/18/02 9:43 AM
To replace the system board battery:
1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this
chapter.
2. Open the bezel door. Refer to “Bezel Door” earlier in this chapter.
3. Remove the access panel. Refer to “Access Panel” earlier in this chapter.
4. Locate the battery on the system board.
5. Press the battery release lever away from the battery (1).
6. Lift the battery up from that side and out of its holder (2).
IMPORTANT: The battery should be installed with the positive polarity (+ side) positioned up.
NOTE: If expansion boards are installed, you may need to remove them to gain access to the battery.
2
1

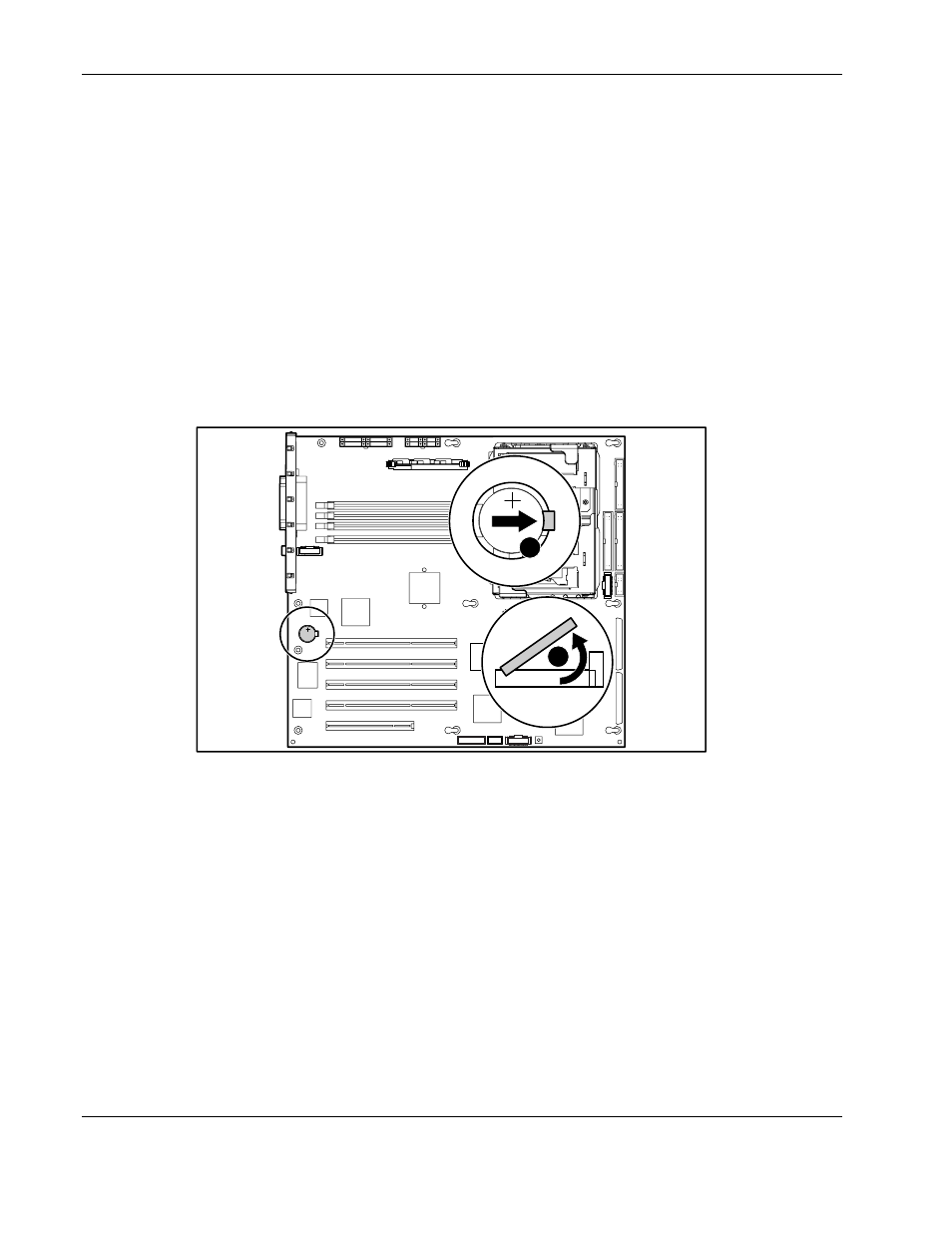

Figure 2-35: Locating and removing a system board
battery
