Removal and Replacement Procedures
2-28 Compaq ProLiant ML350 Generation 3 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Steel Dragon 2.4 Part Number: 278704-002 Last Saved On: 12/18/02 9:43 AM
6. Press on the top of the expansion slot latch (1) and open the latch toward the rear of the
chassis (2).
7. Remove the expansion board (3).
8. Close the expansion slot latch.
9. Replace the expansion board retainer if the expansion board is not immediately being
replaced.
1
2
3

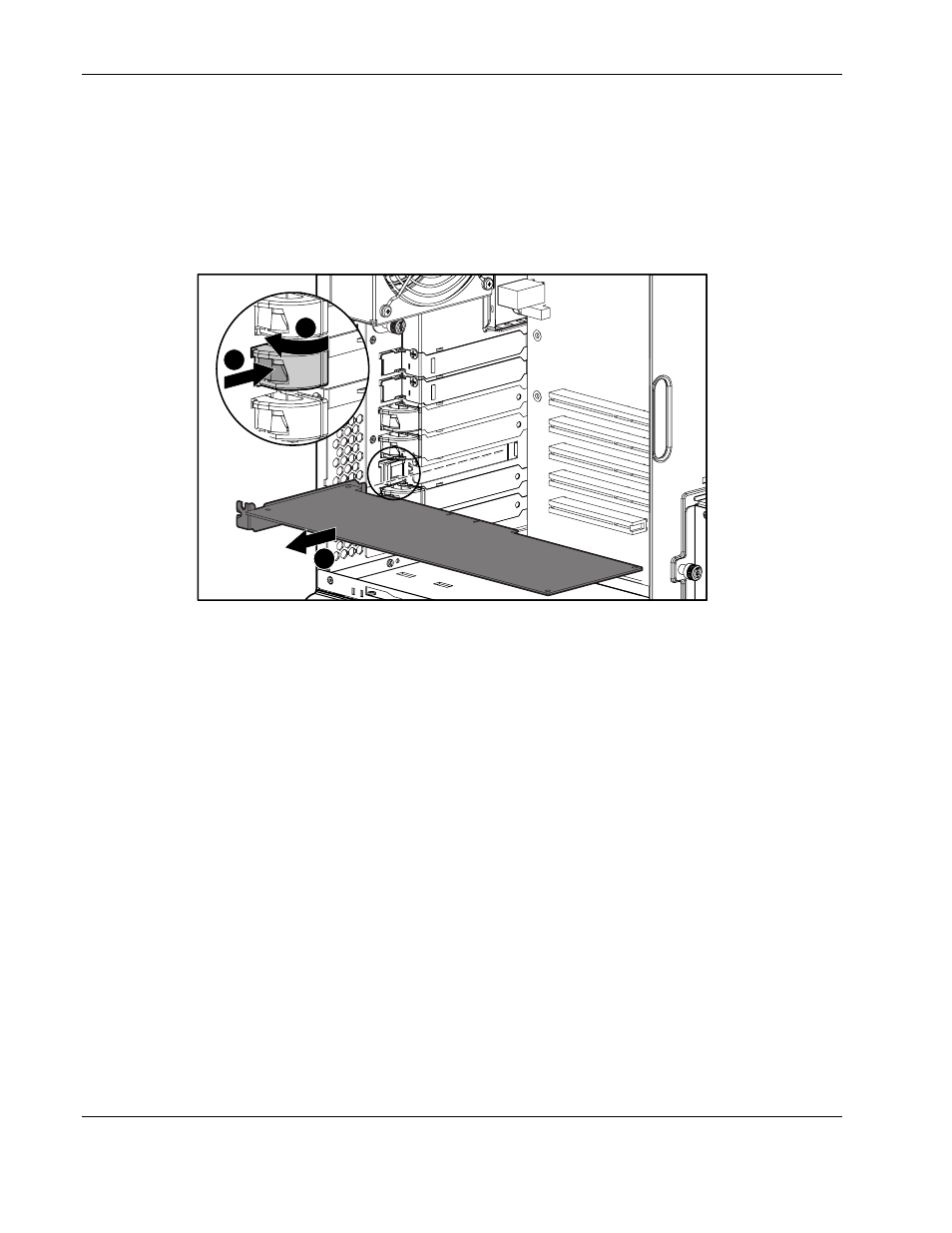

Figure 2-25: Removing the expansion board
To replace an expansion board, reverse steps 2 through 9.
