Removal and Replacement Procedures
2-6 Compaq ProLiant ML350 Generation 3 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Steel Dragon 2.4 Part Number: 278704-002 Last Saved On: 12/18/02 9:43 AM
Bezel Door (Tower Model Only)
To remove the bezel door:
1. Complete the preparation procedures. Refer to “Preparation Procedures” earlier in this
chapter.
2. If the keylock is locked, unlock the bezel door using the included key (1).
3. Open the bezel door fully to the right (2).
4. Lift the bezel door and then pull it away from the chassis (3).
1 2
3

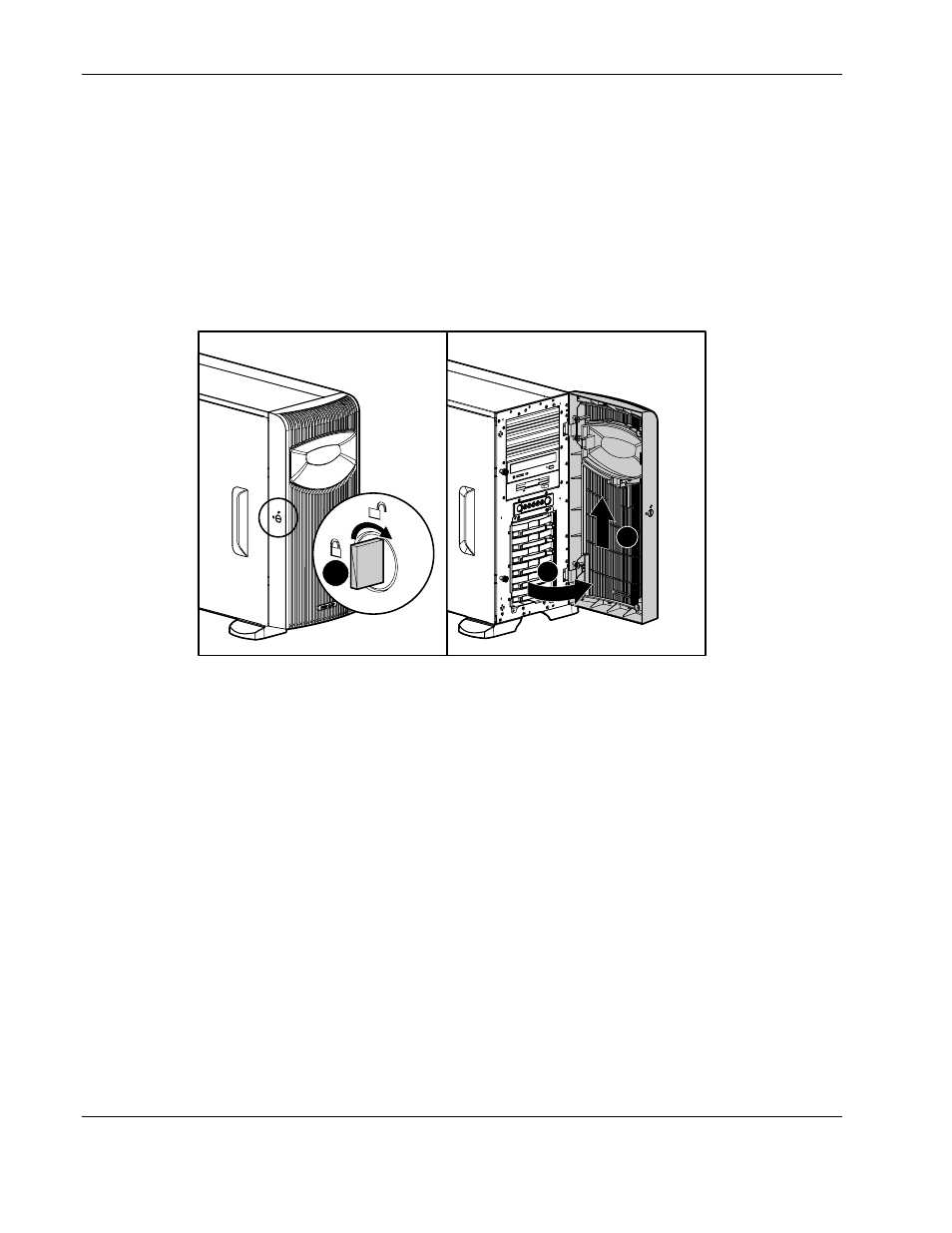

Figure 2-1: Removing the bezel door (tower model only)
To replace the bezel door, reverse steps 3 and 4.
