Removal and Replacement Procedures
2-26 Compaq ProLiant ML350 Generation 3 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: Steel Dragon 2.4 Part Number: 278704-002 Last Saved On: 12/18/02 9:43 AM
Expansion Slots
4
3
2
1
5

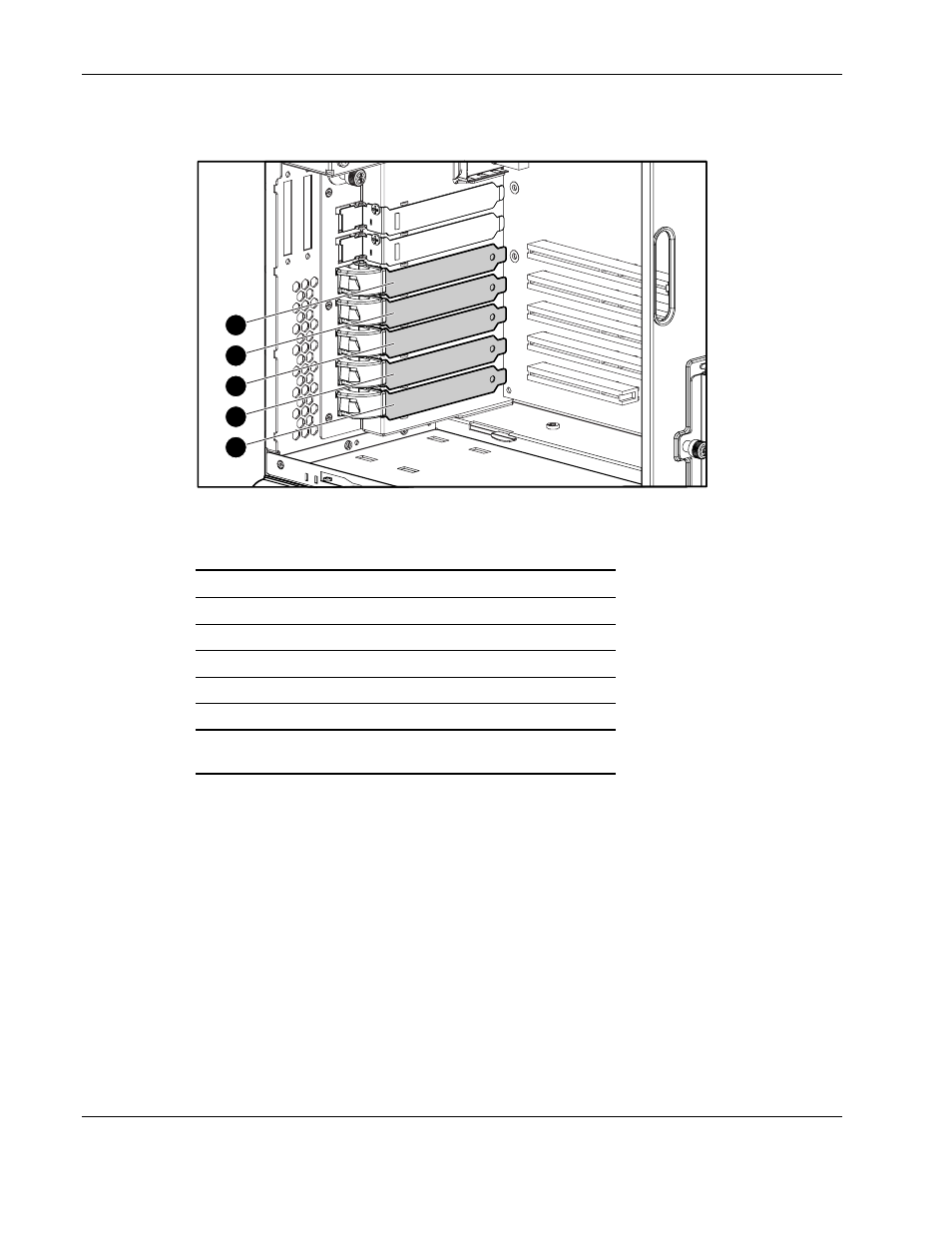

Figure 2-23: Expansion slot locations
Table 2-3: Expansion Slots
Item Slot Slot Number
1 64-bit 100-MHz PCI-X, 3.3-V, bus 2 1
2 64-bit 100-MHz PCI-X, 3.3-V, bus 2 2
3 64-bit 100-MHz PCI-X, 3.3-V, bus 5 3
4 64-bit 100-MHz PCI-X, 3.3-V, bus 5 4
5 32-bit 33-MHz PCI, 5-V 5
Note: Slots 1, 2, 3 and 4 are optimized for PCI-X 100 add-in
cards.
