6.11 VLAN

Virtual LAN (VLAN) is a mechanism and protocol that allows
you to segment the network using "tagging" on network
frames on the LAN. Each VLAN segment functions like a
separate physical LAN.

6.11.1

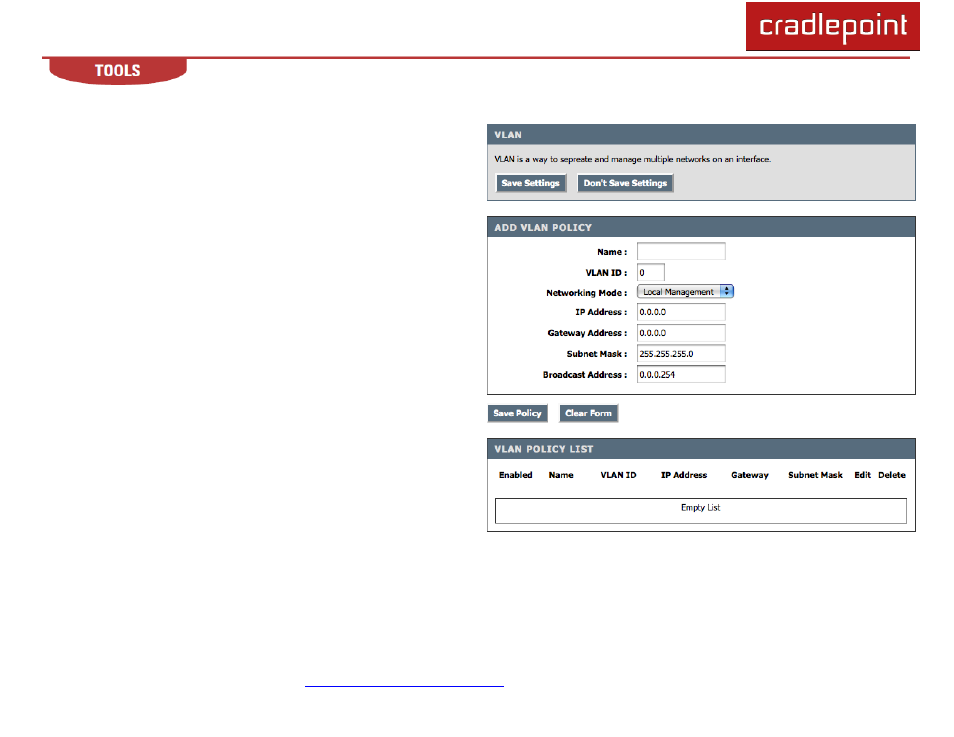

Add VLAN Policy

Name. A name you choose to easily identify the policy.

VLAN ID. A unique identification number used to distinguish
between network segments.

IP Address. The IP address assigned to this device.

Gateway Address. The gateway address associated with
the VLAN.

Subnet Mask. The subnet mask assigned to the network
this VLAN will use.

Broadcast Address. The broadcast address assigned to
the network this VLAN will use.

6.11.2

VLAN Policy List.

This section shows the currently defined VLAN policies. An
entry can be changed by clicking the Edit icon or deleted by
clicking the Delete icon. When you click the Edit icon, the
"Edit VLAN Policy" section is activated for editing the
chosen policy.
