3 QUICK START

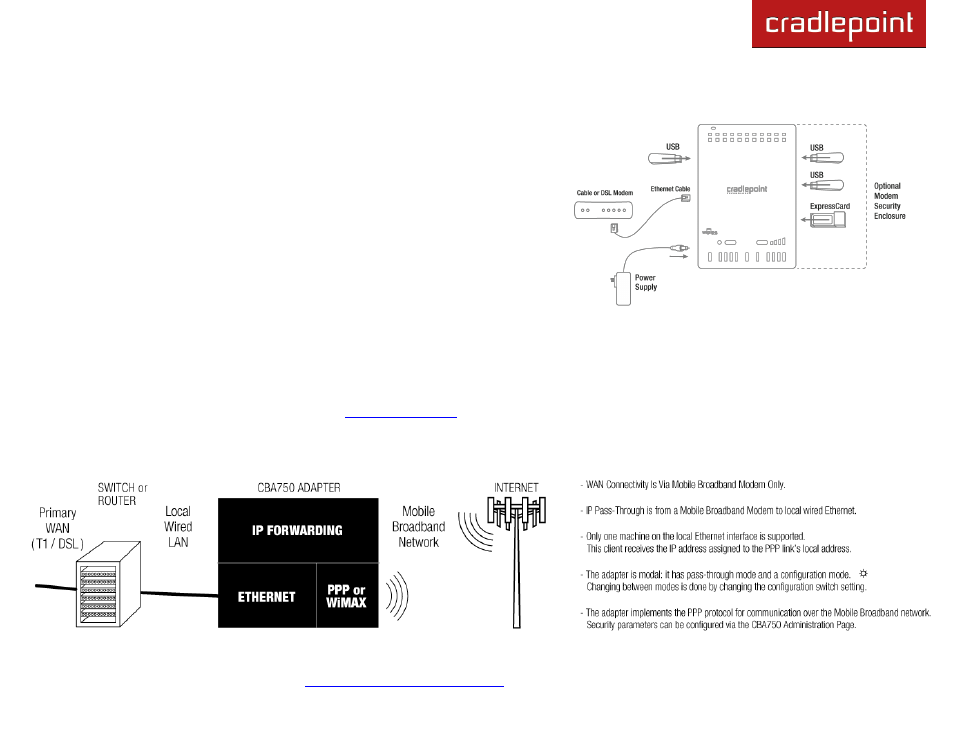

3.1 Setting Up Your Adapter
Connect Mobile Broadband Device
– Plug a Business-Grade
Cradleptoint Modem, or USB or ExpressCard data modem into
the appropriate slot. The data modem should have an active data
plan.
Place CBA750 Adapter in best signal location
– Use Modem
Signal Strength display to find the best location for the CBA750
Adapter. Use provided mounting hardware if desired.
Connect to a Router or Switch
– Plug the Ethernet cable into a
routing device or switch.
Connect Power Supply
– Connect the included power adapter if not using Power-over-Ethernet (PoE).
For most users, the CBA750 Adapter can be used without configuration. When needed, set the Configuration switch to
“O” to place the unit into configuration mode.
Configuration mode is used to set up user parameters, download new firmware, and enable cellular modem diagnostics
by accessing the administration page at
3.2 Firmware Features
