84 Installing System Components

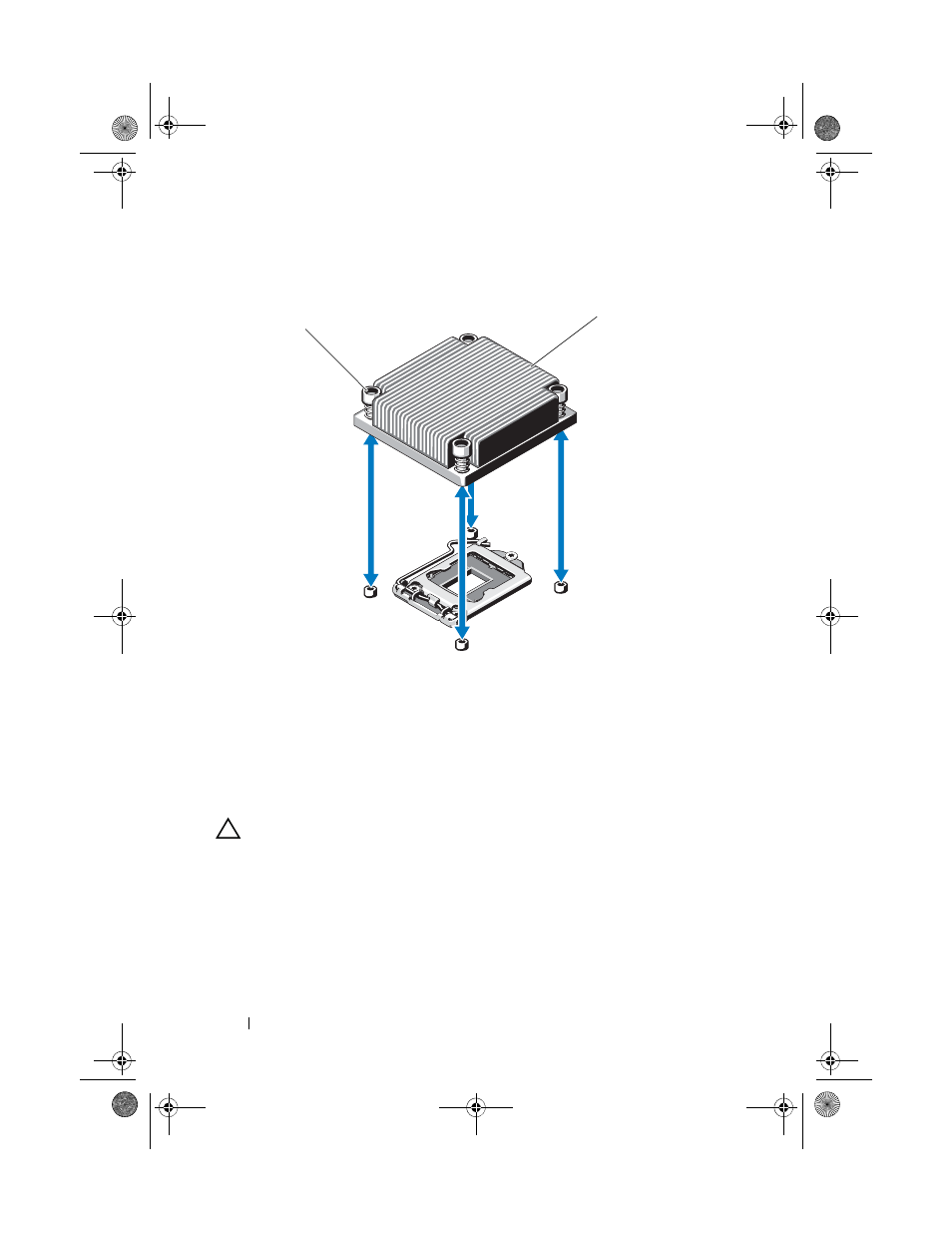

Figure 5-16. Removing and Installing the Heat Sink
11 Rotate the processor shield upward and out of the way. See Figure 5-17.
12 Lift the processor out of the socket and leave the release lever up so that
the socket is ready for the new processor.
CAUTION: Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
1 heat-sink retention screws (4) 2 heat sink
1
2
