60

Installing System Components

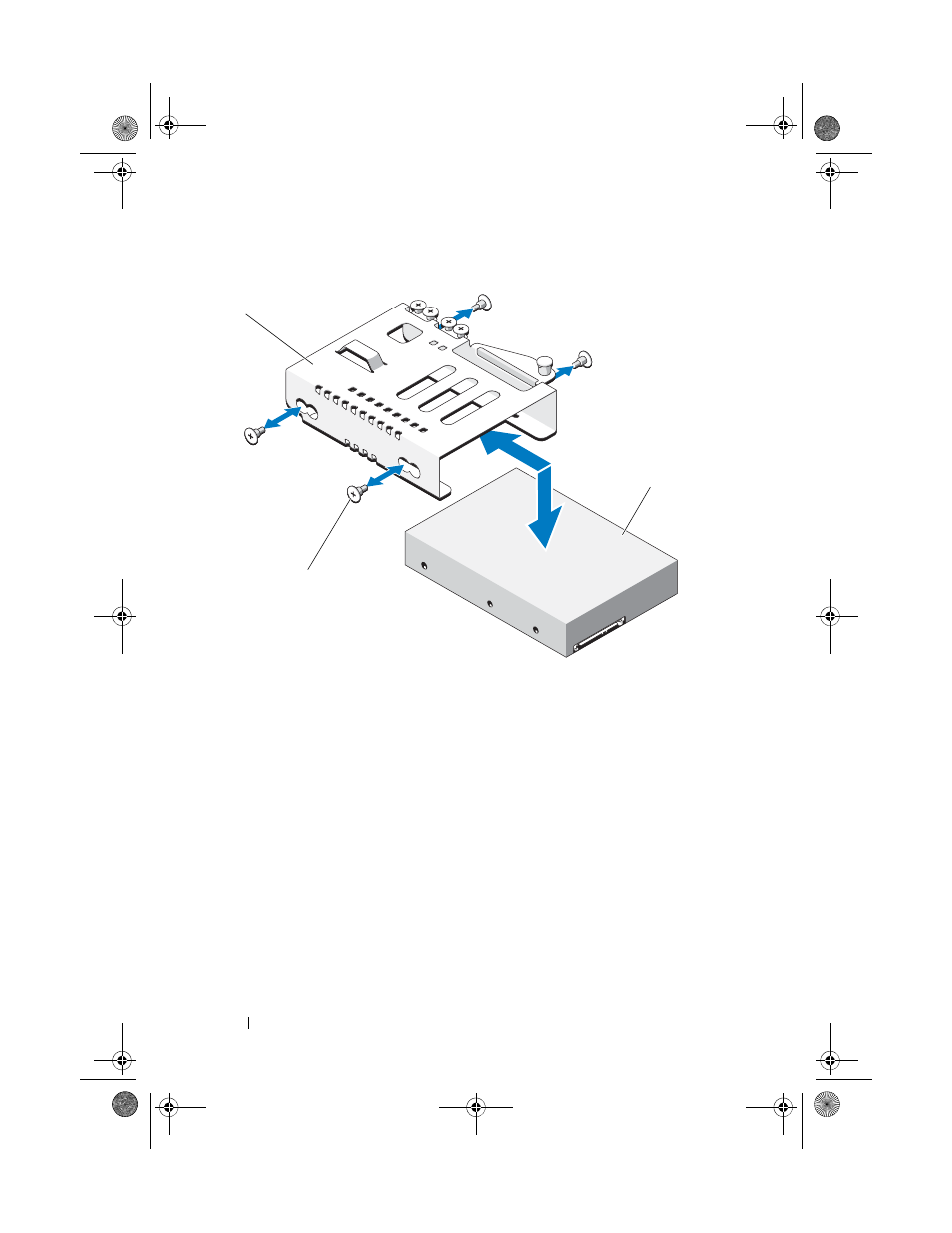

Figure 5-7. Removing a 3.5-Inch Hard Drive From a Hard-Drive Carrier

*Screws are supplied along with the hard drives ordered from Dell.

Installing a 3.5-Inch Hard Drive Into a Hard-Drive Carrier

1 Insert the hard drive into the hard-drive carrier. See Figure 5-7.
2 Align the holes on the hard drives with the set of holes on the hard-drive

carrier.

3 Attach the screws to secure the hard drive to the hard-drive carrier.

1

hard-drive carrier

2

hard drive

3

screws (4)*

2

3

1

book.book Page 60 Friday, March 7, 2014 1:35 PM
