NIC Connector
The system's NIC provides fast communication between servers and workstations.
illustrates the pin numbers for the NIC connector and
defines the pin assignments for the connector.

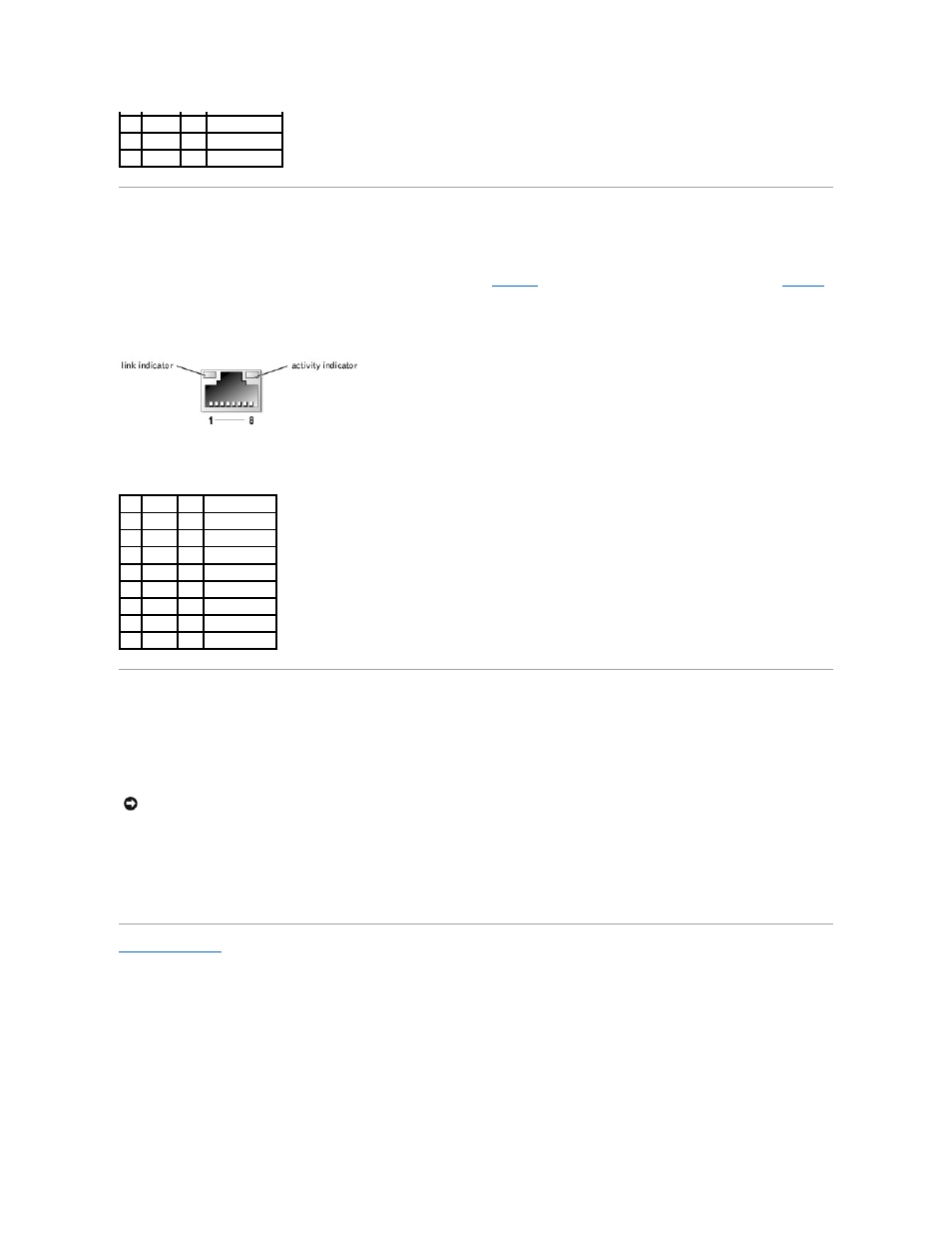

Figure B-6. NIC Connector
Table B-6. NIC Connector Pin Assignments
Network Cable Requirements
The NIC supports a UTP Ethernet cable equipped with a standard RJ45-compatible plug. Observe the following cabling restrictions.
l
Use Category 5 or greater wiring and connectors.
l
Do not exceed a cable run length (from a workstation to a hub) of 100 m (328 ft).
For detailed guidelines about the operation of a network, see "Systems Considerations of Multi-Segment Networks" in the IEEE 802.3 standard.
Back to Contents Page
2
DATA
I
Data in
3
+DATA O
Data out
4
GND
N/A Signal ground
Pin Signal I/O Definition
1
TD+
O
Data out (+)
2
TD–
O
Data out (–)
3
RD+
I
Data in (+)
4
NC
N/A No connection
5
NC
N/A No connection
6
RD–
I
Data in (–)
7
NC
N/A No connection
8
NC
N/A No connection
NOTICE:
To avoid line interference, voice and data lines must be in separate sheaths.
