Features and Options: Dell™ Latitude™ C600/C500 User's
Guide
Figure 1 , Figure 2 , and Figure 3 show the front, back, and bottom views of the computer.

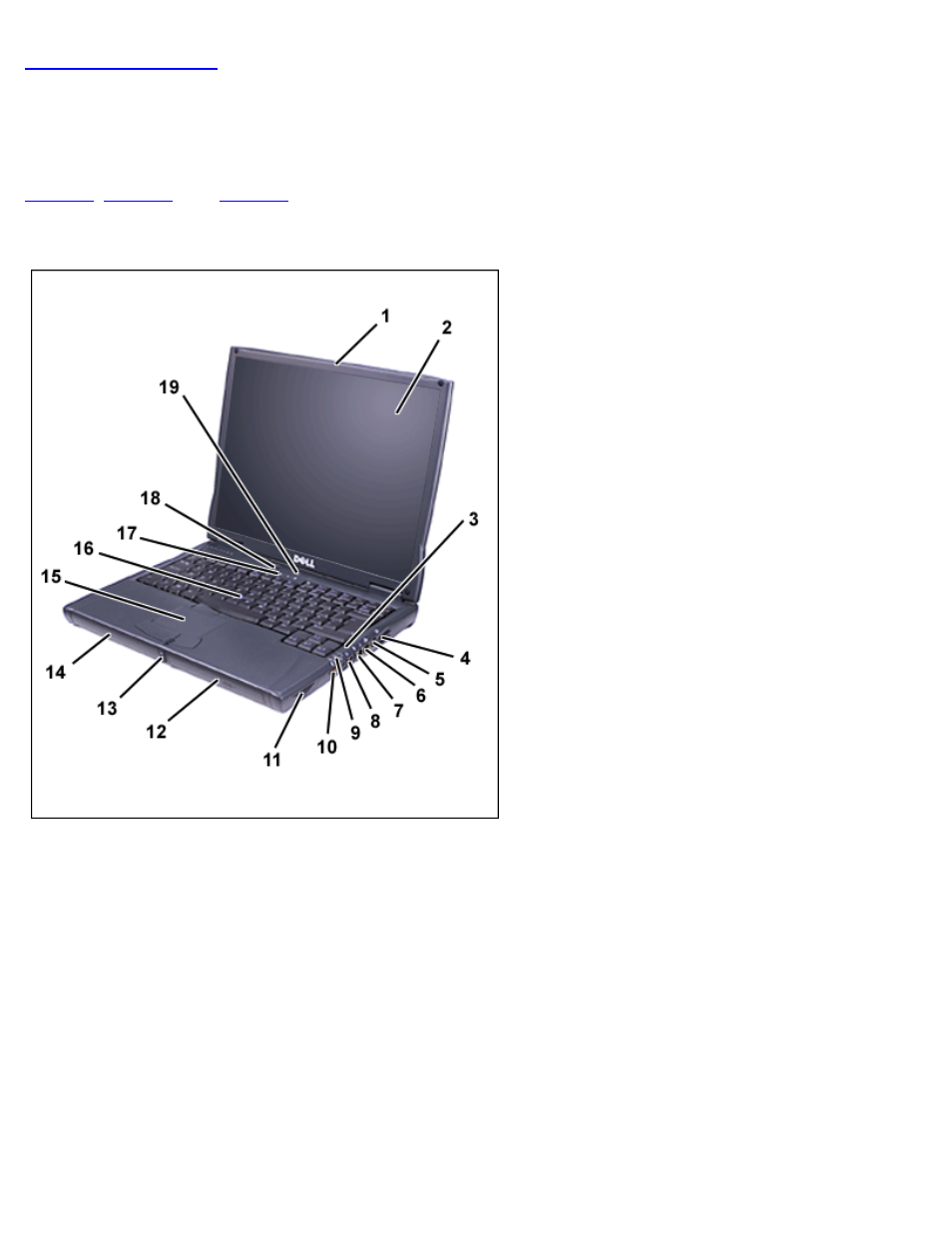

Figure 1. Front View of the Computer
1 Display latch
2 Display
3 Microphone
4 Air outlet
5 S-Video connector
6 Optional network connector
7 Optional modem connector
8 Audio jack (1)
9 System status lights
10 Infrared port
11 Speaker
12 Modular bay
13 Display latch button
14 Battery bay
15 Touch pad
16 Track stick
17 Keyboard status lights
18 Power button
19 Dell AccessDirect™ key
NOTICE: To avoid overheating the computer, do not place any objects close to the air
outlet or air vent, or allow any objects to cover up the outlet or air vent (see Figures 1
and 2).
Figure 2. Back View of the Computer
1 Speaker
2 Security cable slot
3 Hard-disk drive
