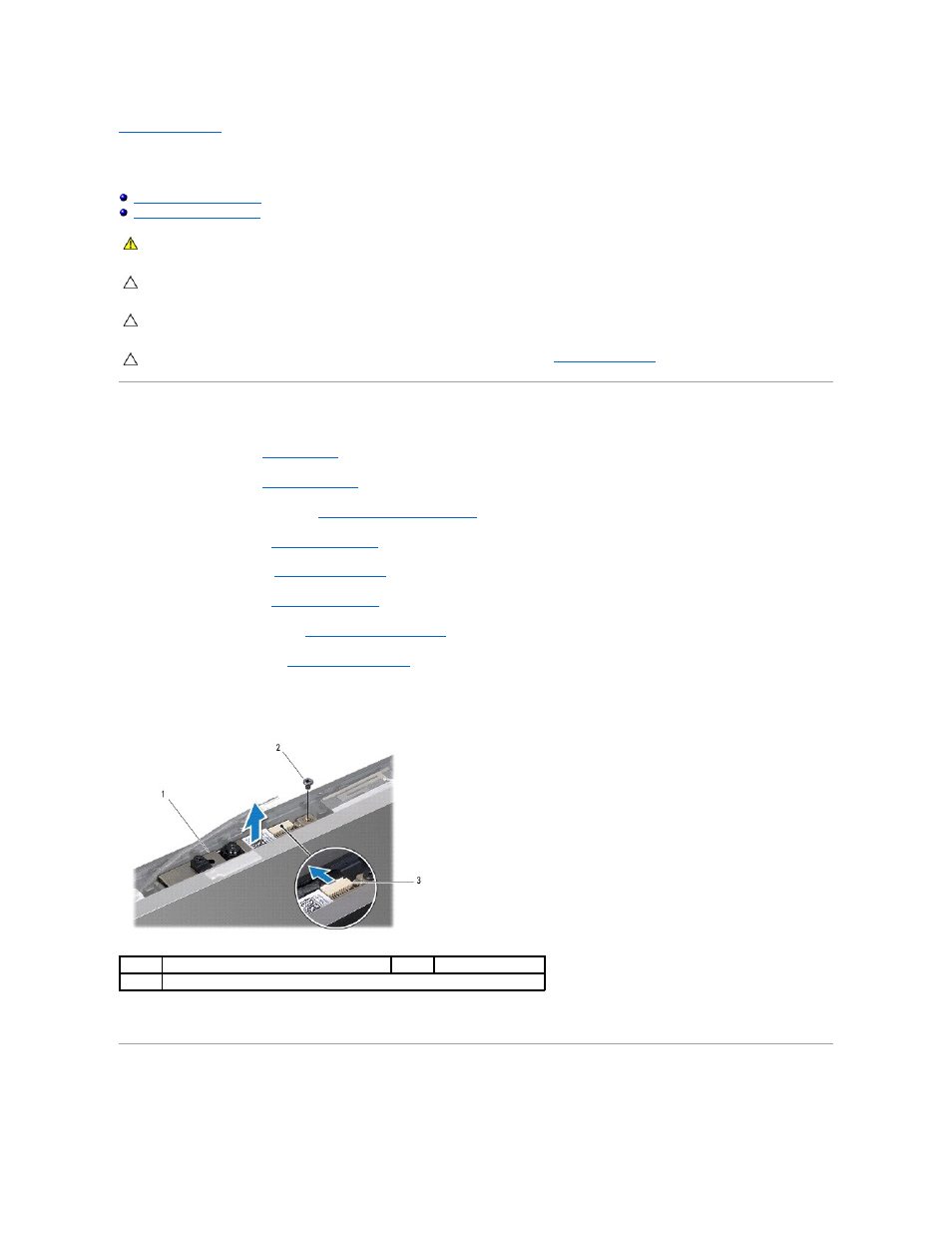

Camera Board
Dell™ Inspiron™ 1320 Service Manual
Removing the Camera Board
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the center control cover (see
Removing the Center Control Cover
).
4.
Remove the keyboard (see
Removing the Keyboard
).
5.
Remove the hard drive (see
Removing the Hard Drive
).
6.
Remove the palm rest (see
Removing the Palm Rest
).
7.
Remove the display assembly (see
Removing the Display Assembly
).
8.
Remove the display bezel (see
Removing the Display Bezel
).
9.
Disconnect the camera cable from the connector on the camera board.
10.
Remove the screw that secures the camera board to the display cover.
11.
Remove the camera board off the display cover.
Replacing the Camera Board
1.
Align the camera board over the screw hole.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.
1
camera board
2
screw
3
camera cable connector
