Inside Your Computer
Cable Colors
Attaching and Removing the Computer Stand
Your computer can be used in either a vertical or horizontal position.
12 video connector Plug the cable from your VGA-compatible monitor into the blue connector.
13 serial connector Connect a serial device, such as a handheld device, to the serial port. If you have a second serial connector card installed, you can
connect a second device to that connector.
For more information, see " System Setup Options ."
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions.
CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: Be careful when opening the computer cover to ensure that you do not accidentally disconnect cables from the system board.

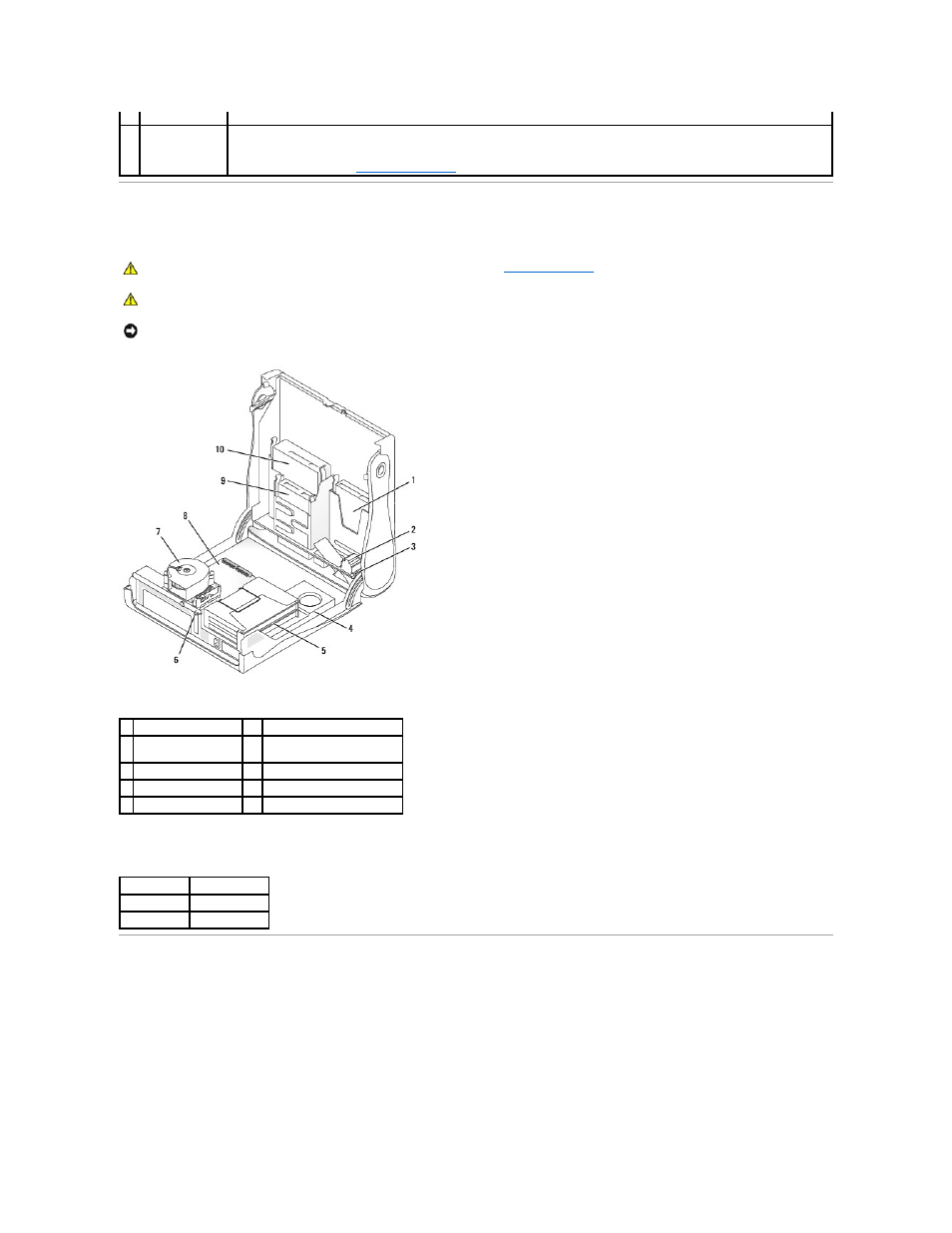

1 hard drive 6 padlock ring
2 chassis intrusion
switch
7 heat sink and blower
assembly
3 internal speaker 8 system board
4 power supply 9 floppy drive
5 card cage 10 CD/DVD drive
Hard drive Blue pull tab
Floppy drive Black pull tab
CD/DVD drive Orange pull tab
