Removing and Installing Parts
137
3 Remove the bezel (see "Removing the Bezel" on page 122).
4 Remove the optical drive (see "Removing an Optical Drive" on page 140).
5 Disconnect the FlexBay USB cable and the power cable from the back of
the Media Card Reader and from the internal USB connector on the
system board (see "System Board Components" on page 105).
6 Press the two spring clamps and slide out the Media Card Reader along
with the FlexBay drive cage from the FlexBay slot.
7 Remove the two screws securing the Media Card Reader in the FlexBay
drive cage.
8 Lift the Media Card Reader to separate it from the FlexBay drive cage.
9 Slide the FlexBay drive cage in the FlexBay slot till it snaps in place.

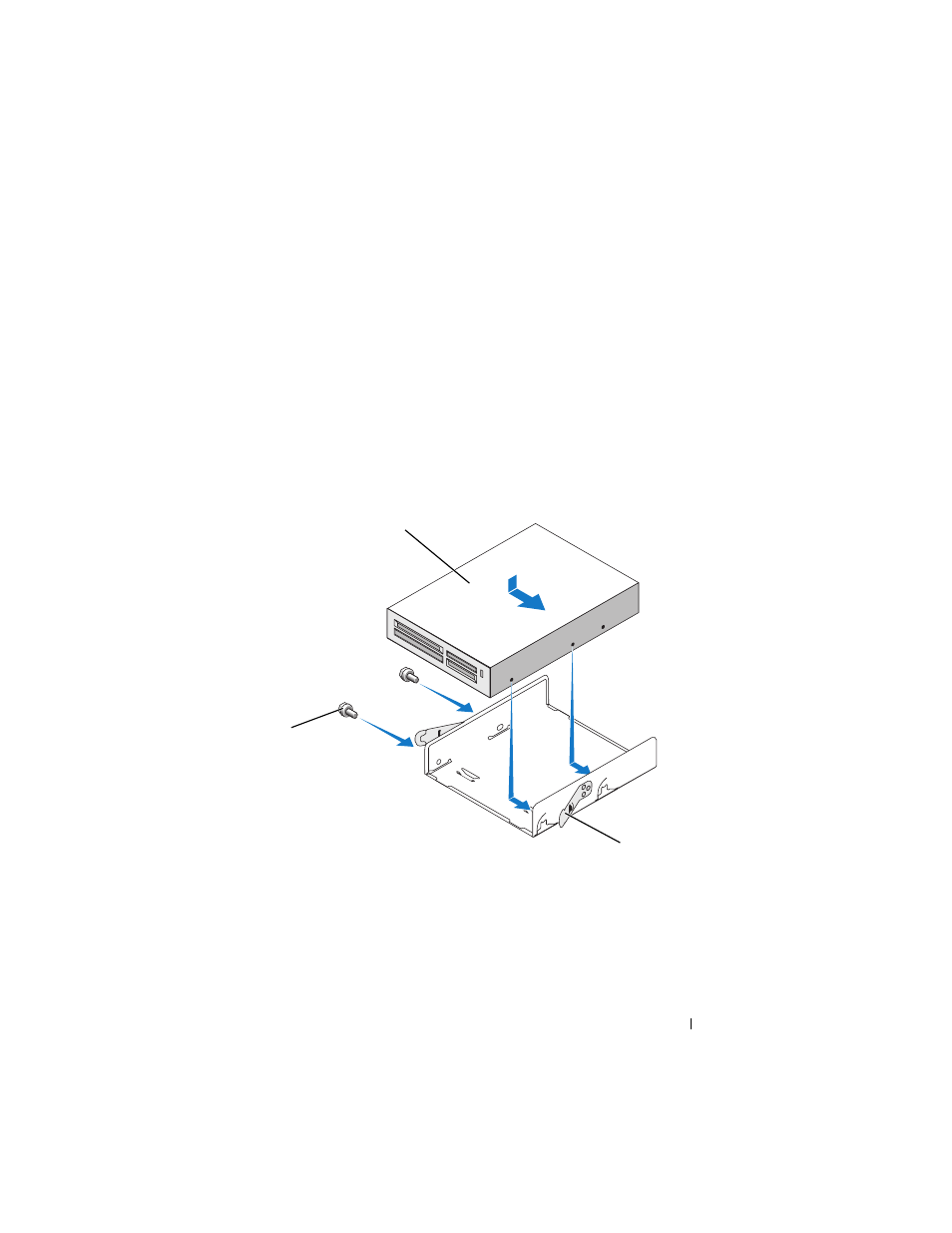

1 media card reader 2 screws (2) 3 spring clamp (2)
*1
*
Not present on all computers.
3
2
