28 Setting Up the DX Object Storage Platform
3 Connect the Ethernet cable(s) for the external and internal network
accordingly. See Figure 3-5.
4 Turn on the DX Cluster Services Node.
5 Change the IP address of the external network interface to a new valid IP
address from the Content Services Configuration page of the DX Cluster
Services Administration console.
The first half of the Ethernet ports on the additional network adapter
automatically bonds with the existing network ports on the external
network and the second half automatically bonds with the existing
network ports on the internal private network.
NOTE: The external network interface IP address can be set back to its original
value. Modifying the external network IP address detects and bonds the additional
network ports.

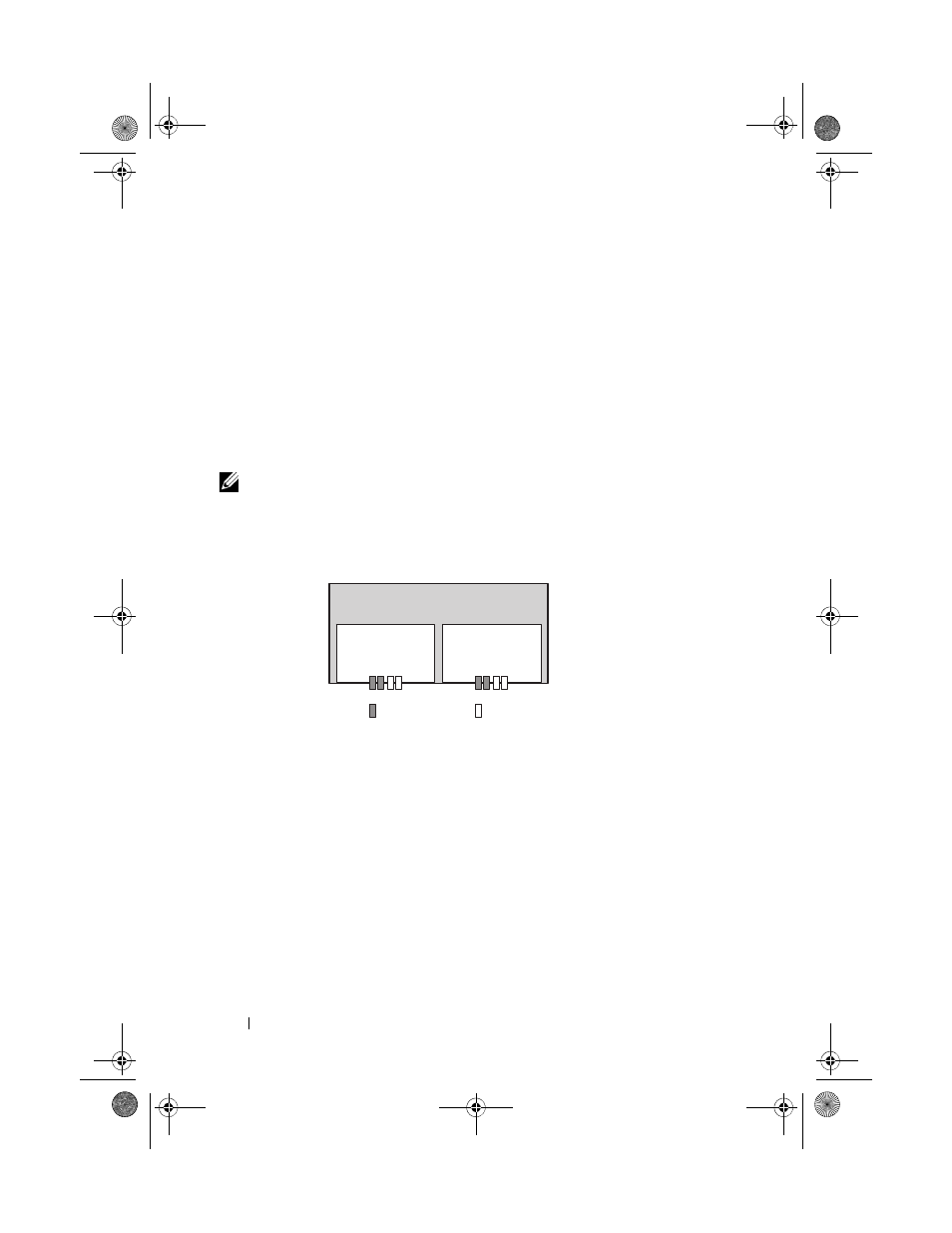

Figure 3-5. Ethernet Cable Connections to the External and Internal Networks
Adding Cluster File Server Nodes
Installation of a DX CFS node requires deployment services from Dell.
For information about setting up the hardware, see the Hardware Owner’s
Manual for your system at support.dell.com/manuals.
public network private network
4 Port
NIC
4 Port
NIC
DX 6a00
