DX Object Storage Platform Overview 11
It is recommended that you configure the network topology to enable
applications to communicate with the DX Storage Nodes on private and
secure networks. This is the primary method to store and retrieve data from a
local DX Storage Cluster.
NOTE: If applications write to a cluster through an unsecure network, then to
prevent malicious activity, it is recommended that you allow the application to
encrypt the data before writing the data to the cluster.

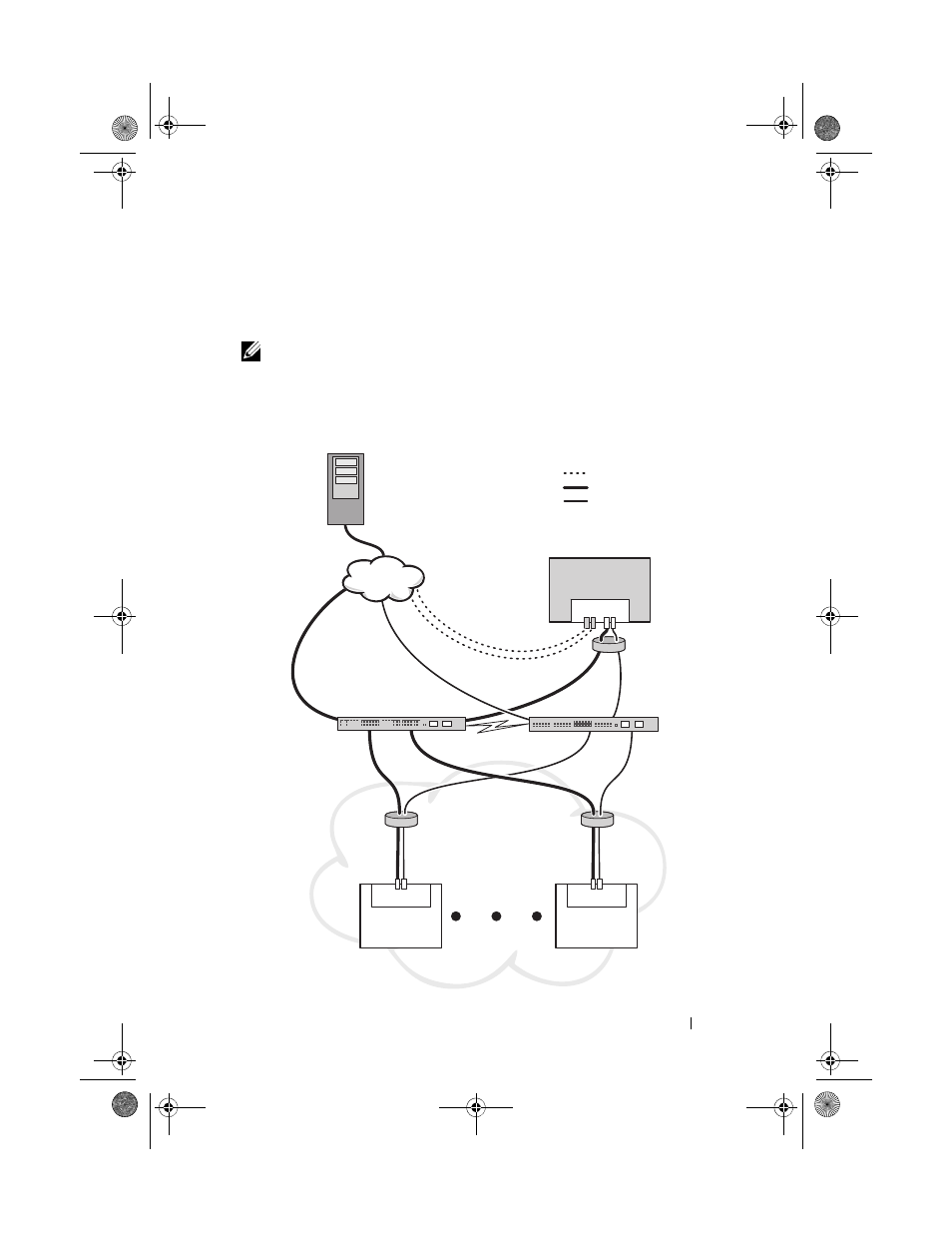

Figure 2-1. Local Cluster Configuration
applications/DX6000G
public network
primary
NIC
teamed
interlink
private network
redundant connections
multi-cast
DX CSN
2 Port LOM 2 Port LOM
DX Storage
Node DX Storage
Node
4 Port LOM
