WiFi Sniffer Board
Dell Studio™ 1435 Service Manual
Removing the WiFi Sniffer Board
Replacing the WiFi Sniffer Board
Removing the WiFi Sniffer Board
1. Follow the instructions in Before You Begin .
2. Remove the center control cover (see Removing the Center Control Cover ).
3. Remove the keyboard (see Removing the Keyboard ).
4. Remove the palm rest (see Removing the Palm Rest ).
5. Remove the screw on WiFi sniffer board.
6. Turn the computer over and disconnect the WiFi sniffer board cable from the system board connector.
7. Lift the WiFi sniffer board out of the computer base.
Replacing the WiFi Sniffer Board
1. Replace the screw on the WiFi sniffer board.

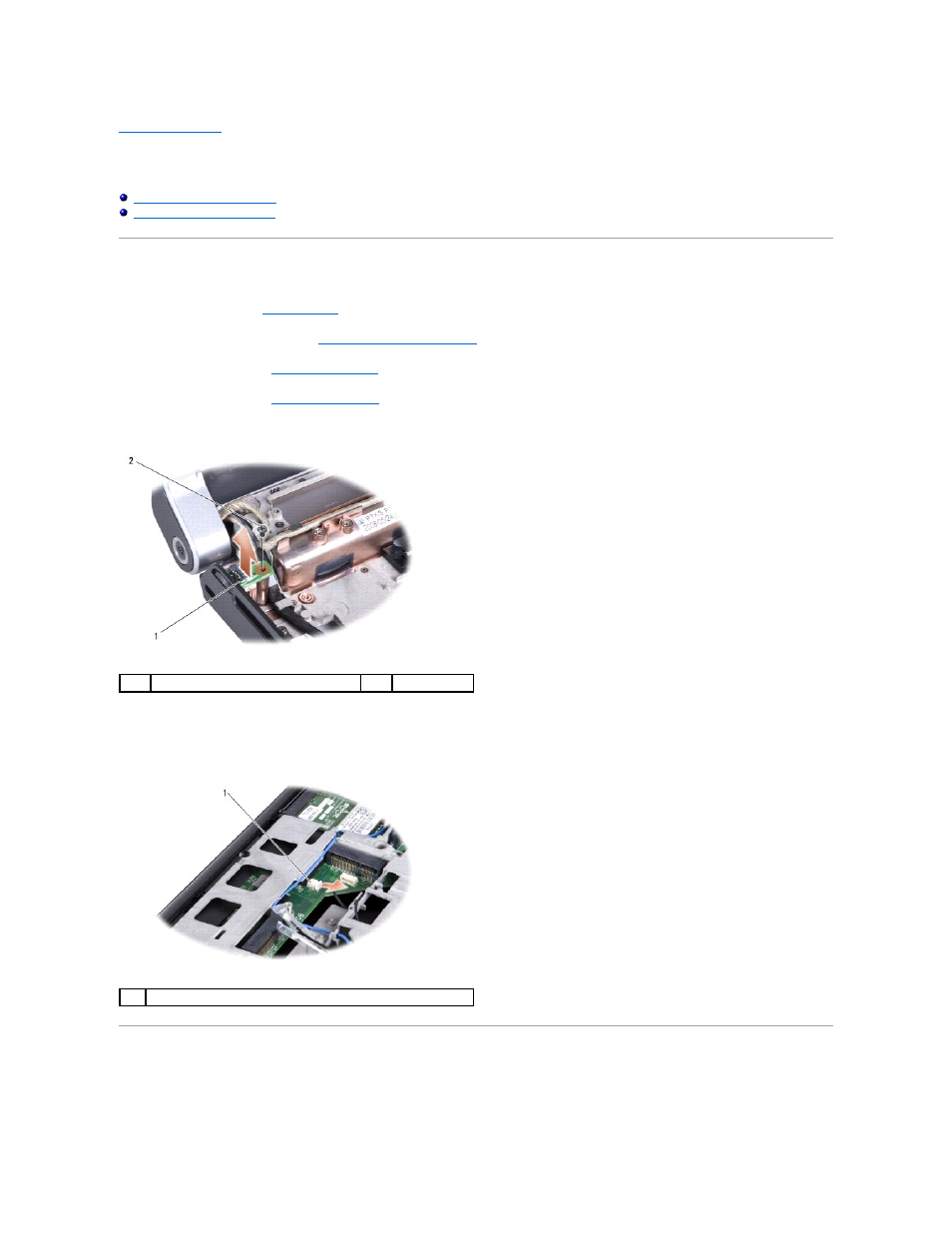

1 WiFi sniffer board 2 screw
1 WiFi sniffer board cable connector
