USER’S GUIDE
Ma
na
ge
d R
a
ck
PD
U
106

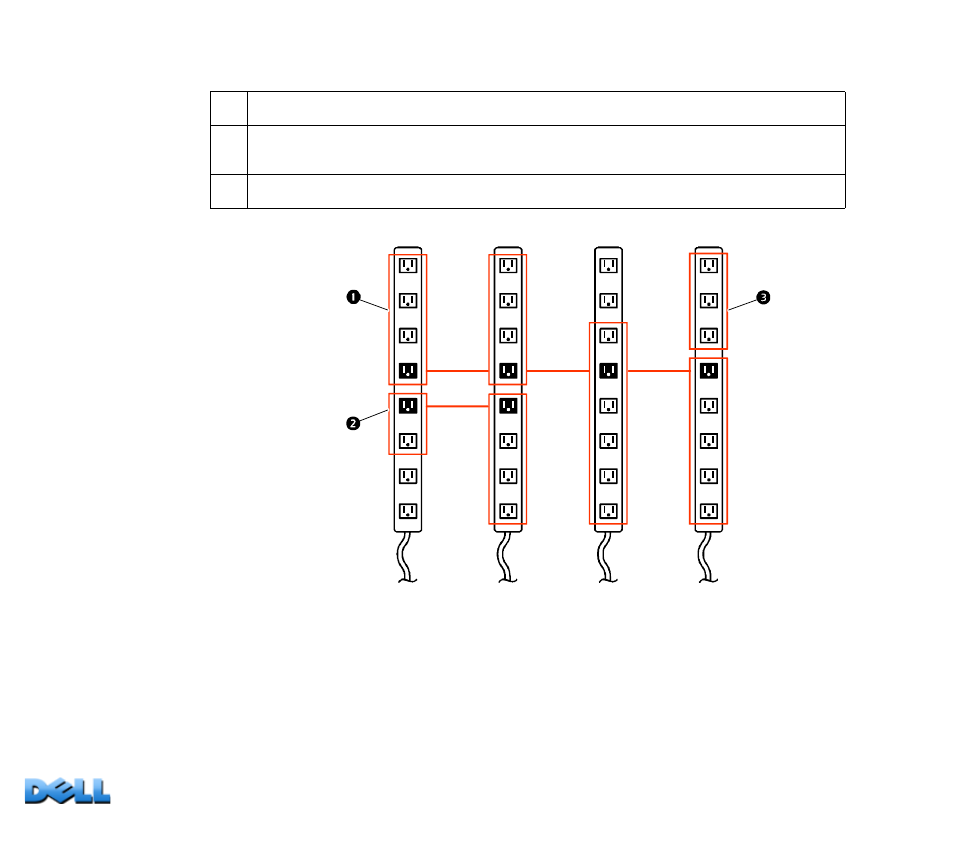

The following configuration shows three sets of synchronized outlets. Global outlets are
shown in black. Outlet groups are enclosed in red rectangles.
1 These four global outlet groups synchronize a total of 19 outlets.
2
These two global outlet groups synchronize 6 outlets, 2 in one group and 4 in the
other.
3 This local outlet group synchronizes 3 outlets on the same Rack PDU.
